Viewing System Status Information
From the Status page, you can view status information about the Makito X4 decoder, such as the operating system uptime, along with information about the hardware and software components. You can also initiate blinking of the Status and TX LEDs (to help locate particular decoders in a lab or rack), as well as take a system snapshot and reboot the decoder.
The Status page is available to Operator and Guest users as well as Administrators.
To view status information:
- Click Settings on the side menu.

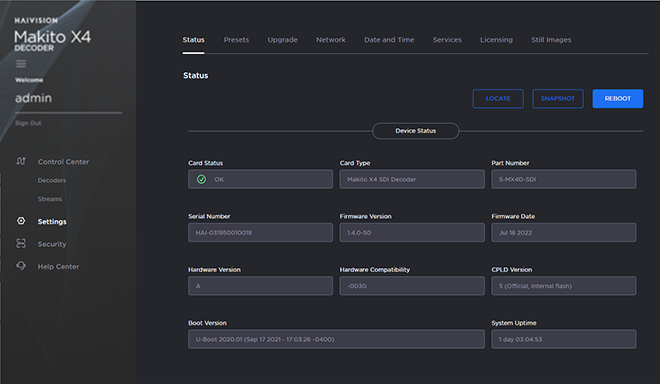

The Administration Status page opens.
- The Status settings are read-only. For details, see Status Settings.
- To display a snapshot of system information, see Taking a System Snapshot.

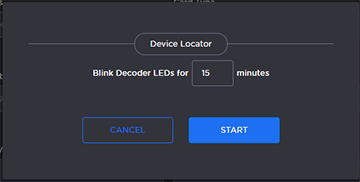

To initiate blinking of the Status and TX LEDs, click Locate. On the Device Locator dialog, adjust the time allowed to blink the decoder LEDs and click Start.
Note
The blinking can last from 1 minute to 1 hour; the default is 15 minutes.
- To reboot the decoder, see Rebooting the Decoder.
