Audio/Video Interfaces
SDI Video and Embedded Digital Audio Interfaces

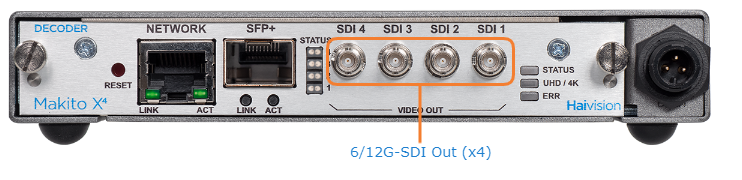

The Makito X4 decoder SDI video interface consists of four 75 Ω HD-BNC connectors.
The HD-BNC connector(s) are used for SD-SDI (Serial Digital Interface), HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI video output signals. All ports are 6/12G-SDI capable.
In addition, the HD-BNC connector(s) support auto-detection of the HD resolution and embedded digital audio.
