(28V) Network Connector
| Network Connector 28V | |||
|---|---|---|---|
| On Unit | Mating Connector | |
| Manufacturer | LEMO | LEMO | |
| Connector Type | Network Connector | Network Connector | |
| Part Number | HEP.2M.312.XLNP | FGP.2M.312.XLCT | |

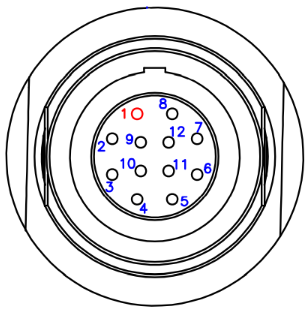

Network Connector Pinout 28V
Contact # | Contact Name |
|---|---|
1 | ETH B+ |
2 | ETH B- |
3 | ETH C+ |
4 | ETH C- |
5 | ETH D+ |
6 | ETH D- |
| 7 | ETH A+ |
| 8 | ETH A- |
| 9 | GND |
| 10 | SYS_RST# |
| 11 | N/C |
| 12 | N/C |
