Exploring the Web Interface

After logging in to the Web interface, you will have access to the encoder configuration settings. All of the settings can be adjusted via the Web browser.

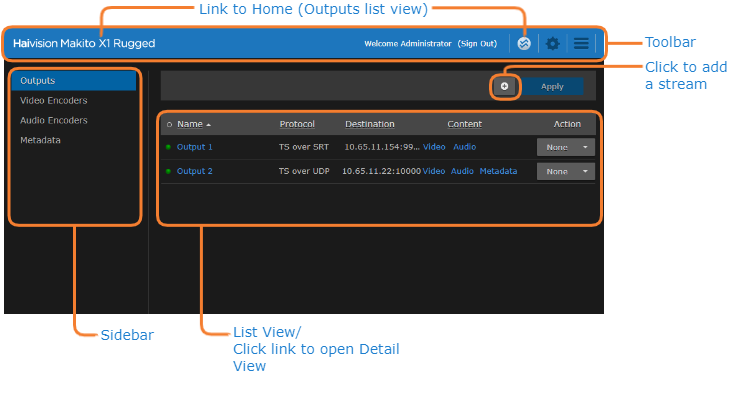

The Makito X1 Web interface opens to the Outputs List View, as shown in the following example. Your account information is displayed on the toolbar (along the top).

  • To set up encoding, select the configuration option from the sidebar, for example, Video Encoders or Audio Encoders.
  • To set up streaming, select Outputs from the sidebar.
  • To access the encoder administration settings, click the
    Gear
    Administration icon on the toolbar, and then select the option, for example Network (under Settings) or Accounts (under Security).
  • To access the User Preferences or online Help, click the

     icon on the toolbar, and then select either:

    • User Preferences — Opens a dialog to configure preferences such as user interface brightness and contrast control and browser cache reset. See User Preferences.

    • Help — Opens the Haivision InfoCenter website that contains the Makito X1 documentation. See How to use the InfoCenter for tips and tricks for browsing the site.

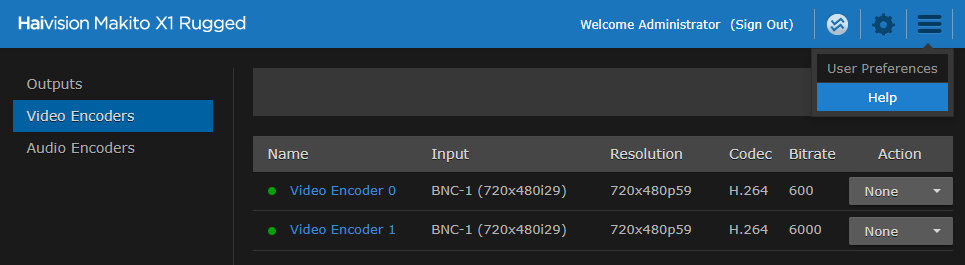

      Options Drop-down

      Note

      If no external internet connection is available, a local Makito X1 Encoder online Help is opened in your Web browser.

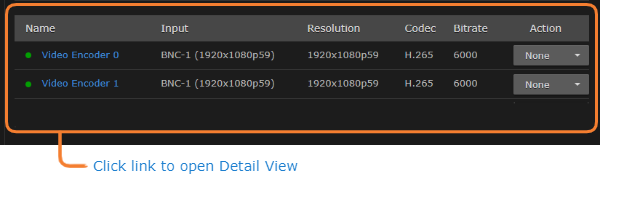

  • (Where applicable) On the List View, click a link in the table to open the Detail View. For example, on the Video Encoders List View (shown below), click a link to open the Video Encoder Detail View.
