From the Streams tab, you can create and configure streams, start and stop streaming, and display statistics for streams. When creating a stream, you begin by selecting the content sources and then configure the destination, link, and other streaming parameters.
To configure Steaming parameters:
From the Streams List View, click the Settings icon on an existing stream panel, or click the Add Stream button to add a new stream.

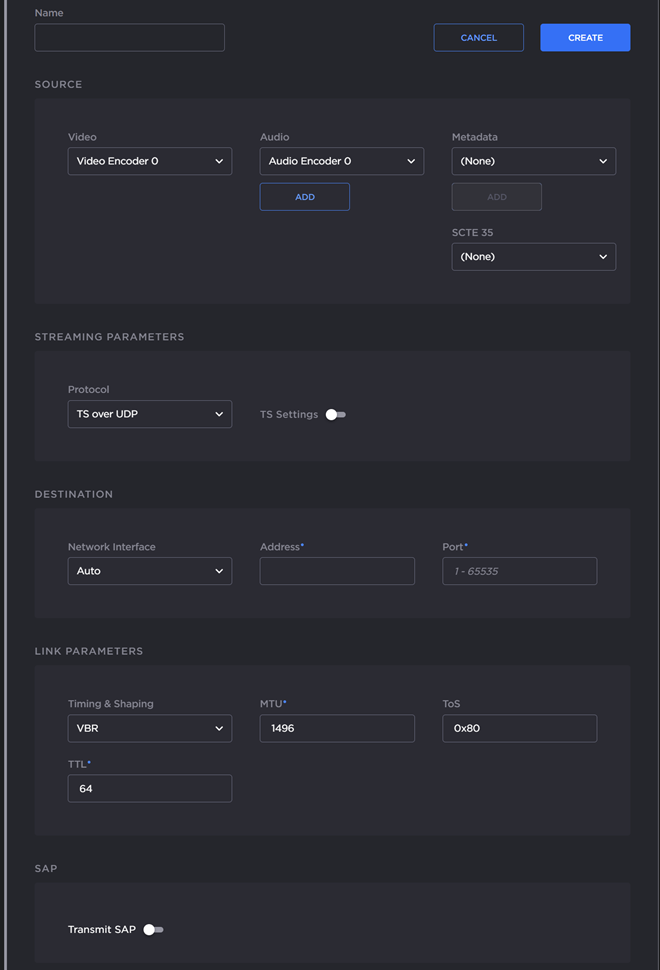

The Stream Detail View, or Add Stream Panel, opens.
Enter the stream name and select the sources (Video, Audio, and Metadata if applicable). See Stream Settings.

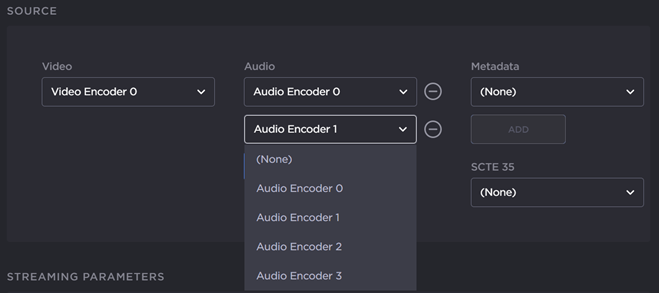

To configure multi-track audio, click the Add button under the Audio field and select the next Audio Encoder to add to the stream. Click the Remove icon next to the Audio Encoder field(s).

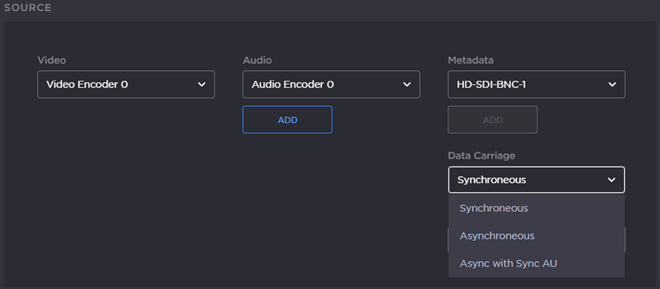

To add metadata to the stream, select the Metadata source, and (optionally) select the encapsulation type (Data Carriage).
To stream metadata from multiple sources, click the Add button below the Metadata field and select the next metadata source to add to the stream.
Note
To stream metadata from multiple sources, the metadata's Decimation must be set to By Factor. See Metadata Settings > Decimation Settings.
Under Streaming Parameters, select the Protocol from the dropdown menu.

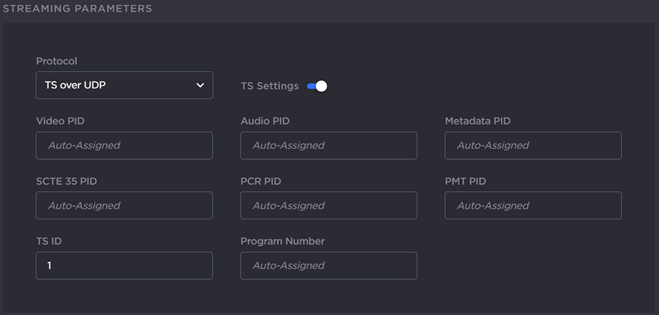

To configure the Transport Stream settings (for TS over UDP, RTP, or SRT), toggle TS Settings on and enter the necessary values.
Enter the values for the Destination and Link Parameters.
Note
The ToS setting must be chosen so as to not interfere with Voice over IP systems and other equipment that may reside on your network.
To configure a stream using the SRT (Secure Reliable Transport) streaming protocol, select TS over SRT for the Protocol and then complete the additional fields under Destination and SRT Access Control. See Configuring Secure Reliable Transport (SRT).

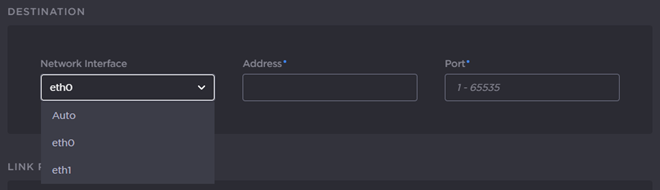

If dual network interfaces are available, to assign the stream to either interface, select either eth0 or eth1 from the Network Interface drop-down list.

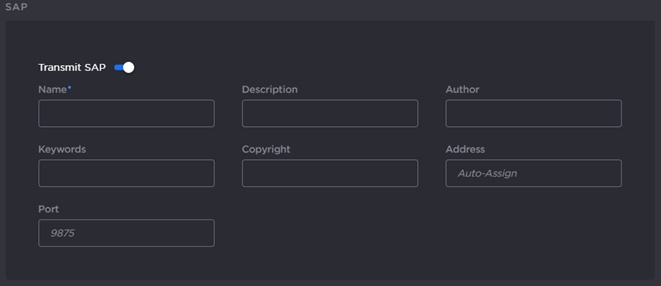

To configure SAP network announcements, toggle Transmit SAP on and fill in the SAP fields. For details, see Session Announcement Protocol (SAP).
Click Apply to apply your changes, or click Add Stream to begin the new stream and start streaming.
To start or stop streaming, click the Start/Stop icon / (as applicable).
To view streaming statistics, click the Statistics icon . For details, see Stream Statistics.
