From the Metadata Details panel, you can define a small set of static KLV objects (i.e., mission IDs and security classification) for KLV and CoT metadata sources. This allows customers to modify erroneous or insert missing metadata within outbound TS steams. The following options are available:
Mission ID Insertion: Configure a mission ID string of up to 127 characters.
When the mission ID is configured, any received UAS KLV dataset will be processed in order to modify the existing mission ID or add a mission ID element if not there with the configured value.
Security Data Set Insertion: Enable or disable the update/generation of the security data set in UAS messages.
When this feature is enabled, you then specify the classification (Unclassified, Restricted, Confidential, Secret, or Top Secret), the classifying country, and the object country/ies (up to 6) (using the proper ISO 3-letter country code).
In both cases, the mission ID or security data will get replaced or inserted with the ones created by the Makito FX based on the configuration.
To configure static KLV objects:

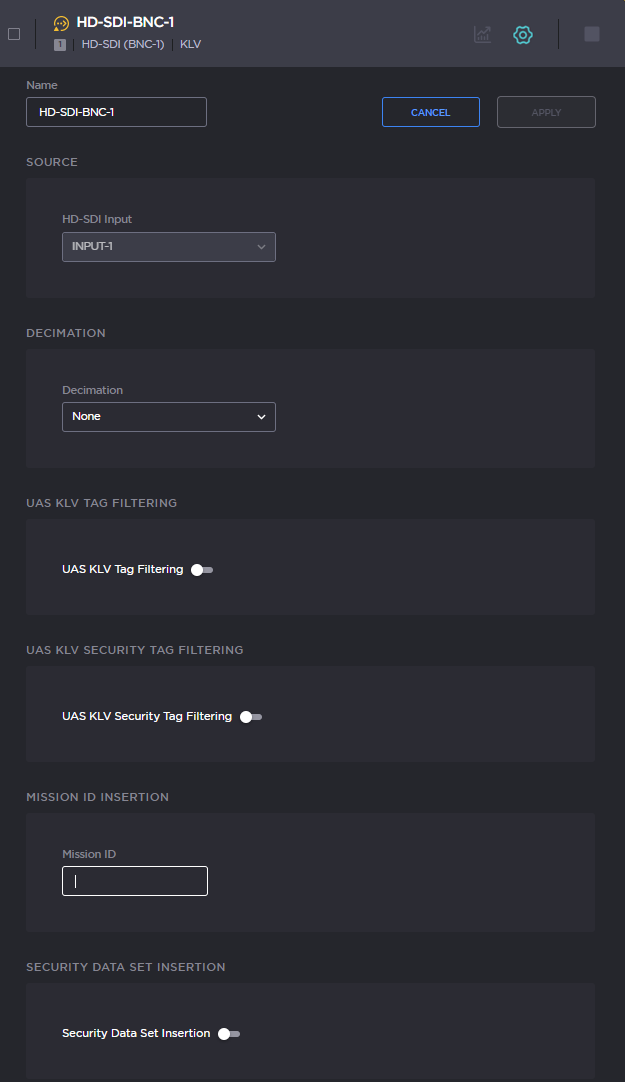

From the Metadata List View, click the Settings icon on the Metadata Source panel to expand the Metadata Details panel. For details on setting up the metadata source, see Setting Up Streaming.
On the Metadata Details panel, scroll down the page and (optional) type or copy in a mission ID string (up to 127 characters) in the Mission ID text box.

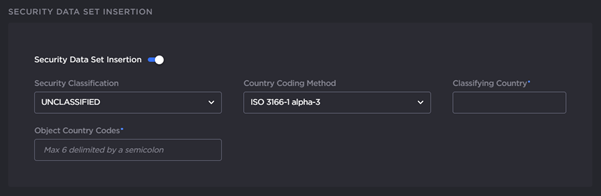

(Optional) To enable the update/generation of the security data set in UAS messages, toggle Security Data Set Insertion on.
