HD-SDI Metadata Sources

The Makito FX automatically creates a first HD-SDI metadata instance upon installation of the license.

You can also create additional HD-SDI sources linked to the same video input which can be configured to different decimation settings (as well as security reclassification and mission ID override). For example, you can have one high bitrate stream sending out all the KLV as well as a lower bitrate stream that uses KLV decimation.

Note

Only progressive scan formats are supported (i.e., 1280x720p and 1920x1080p).

The Makito FX Encoder can capture only 1024 bytes of KLV metadata per video frame.

1. From the Metadata List View, click the Settings icon



   on the metadata panel.

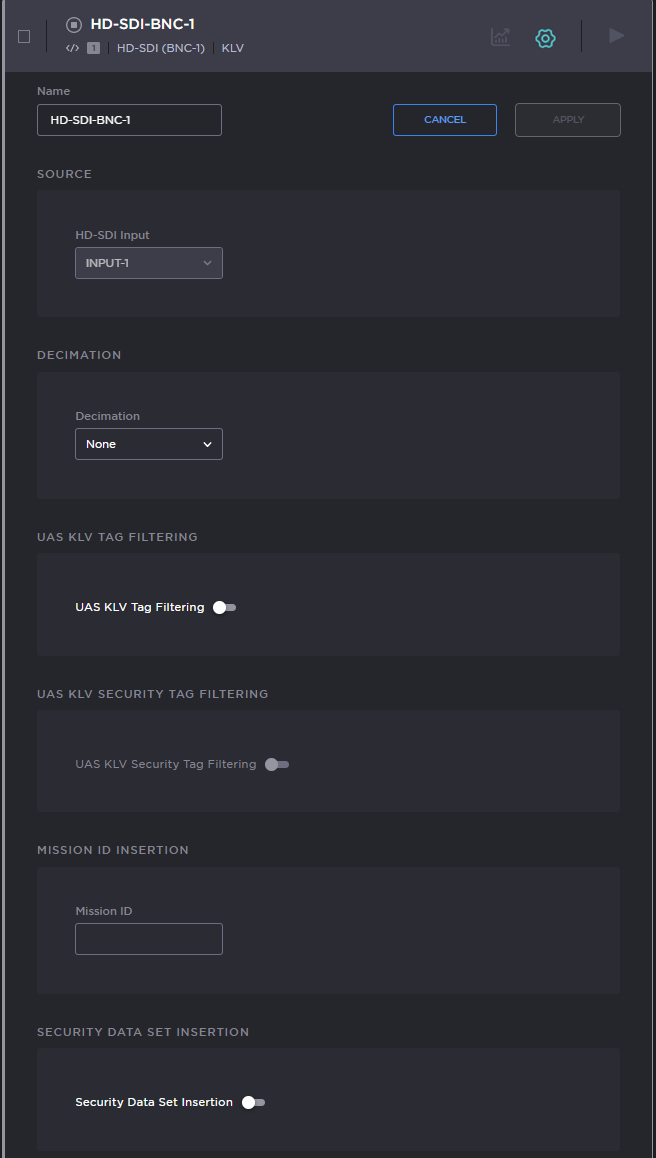

   The Metadata Source  Detail View expands.





   or
2. To create an additional source from the Metadata List View, click the Add Metadata button.

3. On the New Metadata panel, type in the Name for the source.

4. Select HD-SDI for the Metadata Type .

   Decimation Settings:

5. To configure frame-decimation to reduce the bandwidth used by the metadata service, select either a decimation factor or reference encoder from the Decimation drop-down list. See “Decimation” (under "HD-SDI Sources") in Metadata Settings.
6. Select or enter the remaining value(s). For details on the Metadata fields, see Metadata Settings.

   UAS KLV Tag Filtering:
7. Toggle UAS KLV Tag Filtering on to filter MISB 0601 metadata tags to eliminate unwanted KLV information, see UAS KLV Tag Filtering.

   UAS KLV Security Tag Filtering:
8. Toggle UAS KLV Security Tag Filtering on to filter tags that are not compliant with the Security Local Data set inside the UAS, see UAS KLV Tag Filtering.

   Mission ID
9. To configure Mission ID Insertion or Security Data Set Insertion, see Mission ID/Security Data Set Insertion.

   Security Data Set Insertion:
10. To configure Security Data Set Insertion, see Mission ID/Security Data Set Insertion



11. To apply your changes and start the Metadata stream, click Apply.

12. To start or stop the stream, click the Start/Stop icon



    /



    (as applicable).
13. To view Metadata statistics, click the Statistics icon



    .  For details, see Metadata Statistics.
14. To retract the Metadata Detail View, click the Settings icon



    .
