Delivery Optimizations (WisePath/Multi-CDN)

WisePath is the LightFlow dynamic multi-CDN selection feature. With a multi-CDN strategy the content is hosted by more than one Content Distribution Network (CDN), allowing you to improve QoE and save costs by routing traffic in real time using the CDN that provides the best cost/performance ratio for your business.

CDN Selection

WisePath supports different logic for selecting CDNs:

Customer defined business rules
On-the-fly manifest manipulation

Customer defined business rules

Static rules determine which CDN should be selected based on specific: streaming protocols, end user ISP, geographies, time of the day, user agent and metadata.

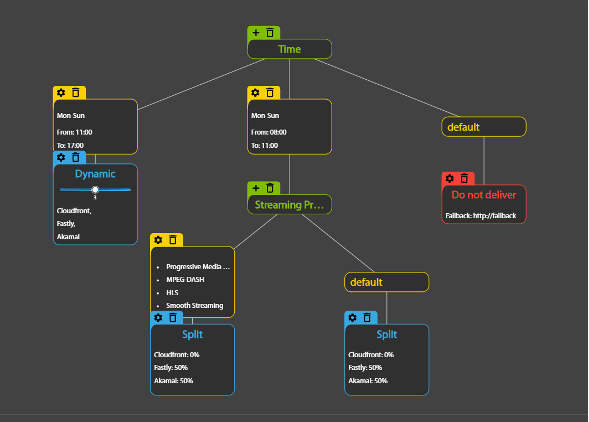

WisePath features a graphical UI to configure complex multi-CDN custom logic in a very intuitive way:

QoE rules – Dynamic distribution

When configured for Dynamic distribution, WisePath uses real time QoE performance analysis and monitoring to route the streams through the CDN that maximizes quality for end users. The Dynamic distribution mode leverages real time QoE metrics from multiple feeds, including the player. WisePath is currently integrated with following player analytics:

NPAW Youbora
Haivision WiseProbe

Multi-CDN switching

WisePath supports two multi-CDN switching methods: API-based and On-the-fly manifest manipulation.

API based

To get the recommended CDNs, send a POST to http://api.lightflow.media/wisepath/, including:

The IP address of the end user
The vodWorkflowId, that defines the multi-CDN logic to be applied
The output protocol

This is an example of a request to the WisePath API:

BASH

curl --location --request POST 'http://api.lightflow.media/wisepath/' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx \
--data-raw '{
    "vodWorkflowId": "e875a5e1-7c0b-450e-b021-xxxxxxxxxx",
    "protocol": "smooth_streaming",
    "ip": "xxx.yyy.www.zzz"
}'

The API will return a list of CDNs with a score (best CDN gets highest score):

{
    "selectedCDN": {
        "uuid": "53f6a7ac-f1c5-41b7-9e0e-xxxxxxxxxxxx",
        "name": "Limelight mss",
        "hostname": "prod-mss.limelight.cdn.customer.com",
        "score": 33.333333333333336
    },
    "cdns": [
        {
            "uuid": "0184ce81-904e-4d65-92a7-xxxxxxxxxxx",
            "name": "Verizon mss",
            "hostname": "prod-mss.verizon.cdn.customer.com",
            "score": 33.333333333333336
        },
        {
            "uuid": "53f6a7ac-f1c5-41b7-9e0e-xxxxxxxxxxxxx",
            "name": "Limelight mss",
            "hostname": "prod-mss.limelight.cdn.customer.com",
            "score": 33.333333333333336
        },
        {
            "uuid": "c8bc1f34-a611-4b39-9a93-xxxxxxxxxxxxxxx",
            "name": "Akamai mss",
            "hostname": "prod-mss.akamai.cdn.customer.com",
            "score": 33.333333333333336
        }

On-the-fly manifest manipulation

In this method, the switch from one CDN to another is done by composing the manifest in real-time. Every time the player requests a manifest, LightFlow will fetch the original manifest and rewrite it, feeding it back to the player.

Note

On-the-fly manifest manipulation requires that LightfFlow is also delivering the content to the end users.

Setting up WisePath

Configure the CDNs

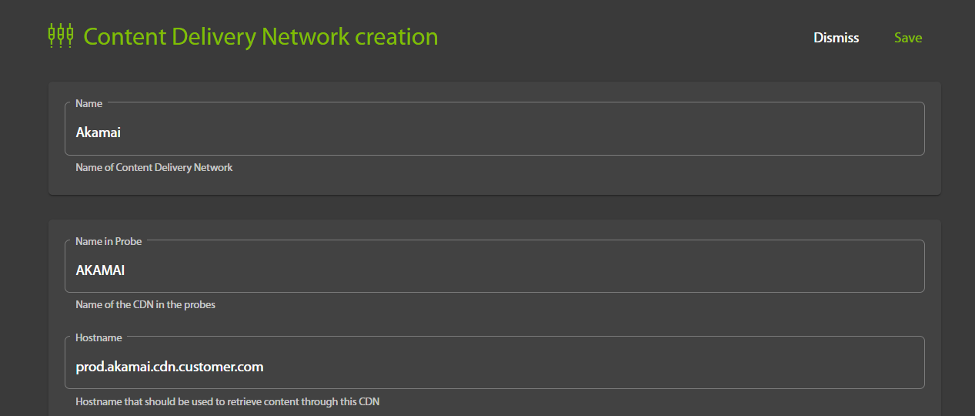

To define a CDN, go to the CDNs section of the LightFlow portal, and click on Create New.

To create a new CDN, the following information is required:

Name: name of the CDN as it will be displayed by LightFlow
Name in Probe: name of the CDN as reported by the player analytics
Hostname: CDN hostname

Note that at least 2 different CDNs are needed for implementing a multi-CDN strategy.

Define a delivery logic

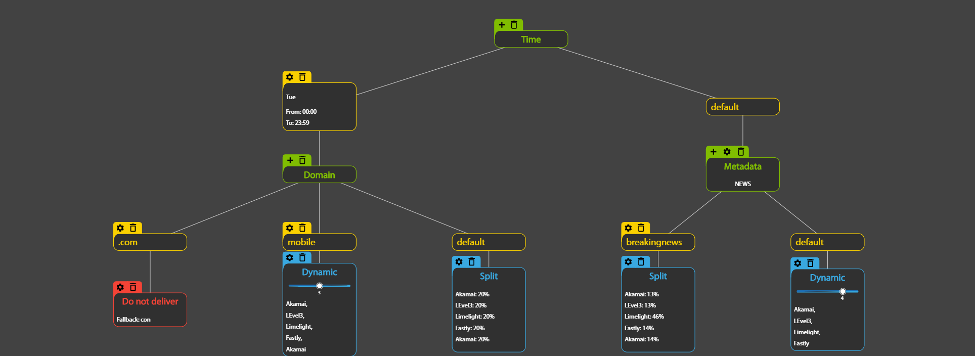

WisePath lets you define a logic decision tree to monitor and control the transit of your media across two or more CDNs:

WisePath logic supports a wide range of conditions:

End user location/geography
Requested domain (.com…)
End user ISP
Time/Day
Asset metadata
User agent
Query string
Output streaming protocol

It also support the following actions:

Do not deliver
Split (define % for each CDN)
Dynamic distribution (optimizes user QoE)

To define delivery logic do the following:

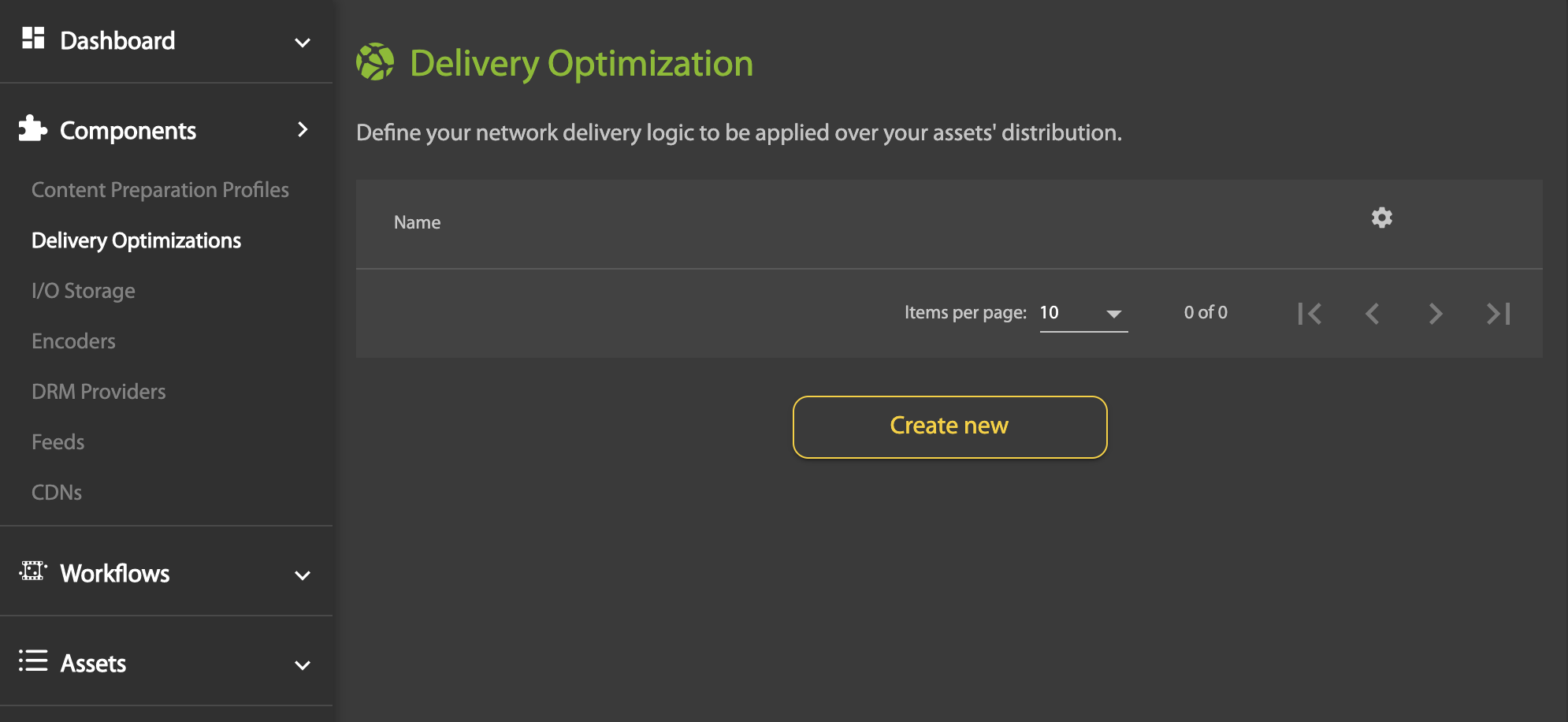

1. Click Create New.

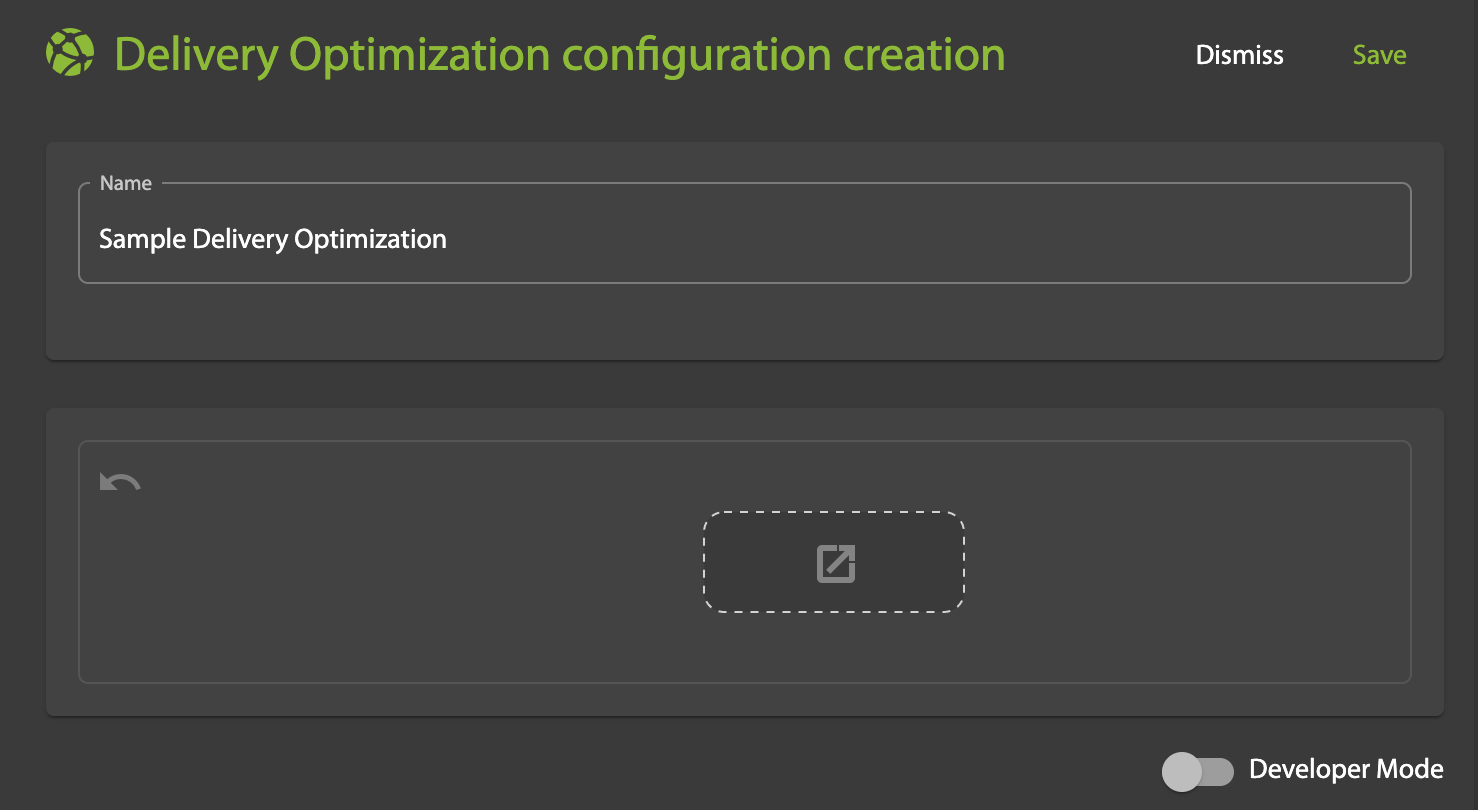

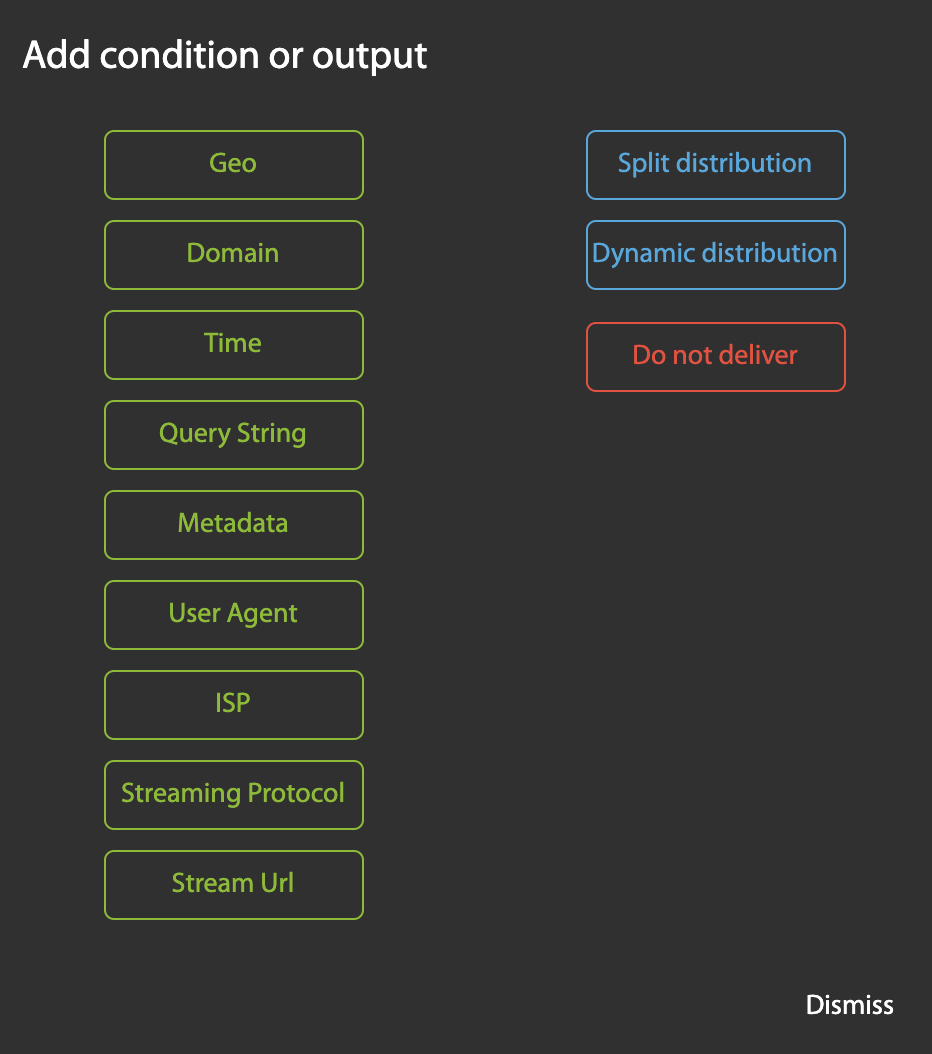

2. Give your new configuration a Name, then click the Add button to add a condition or output to your delivery logic:

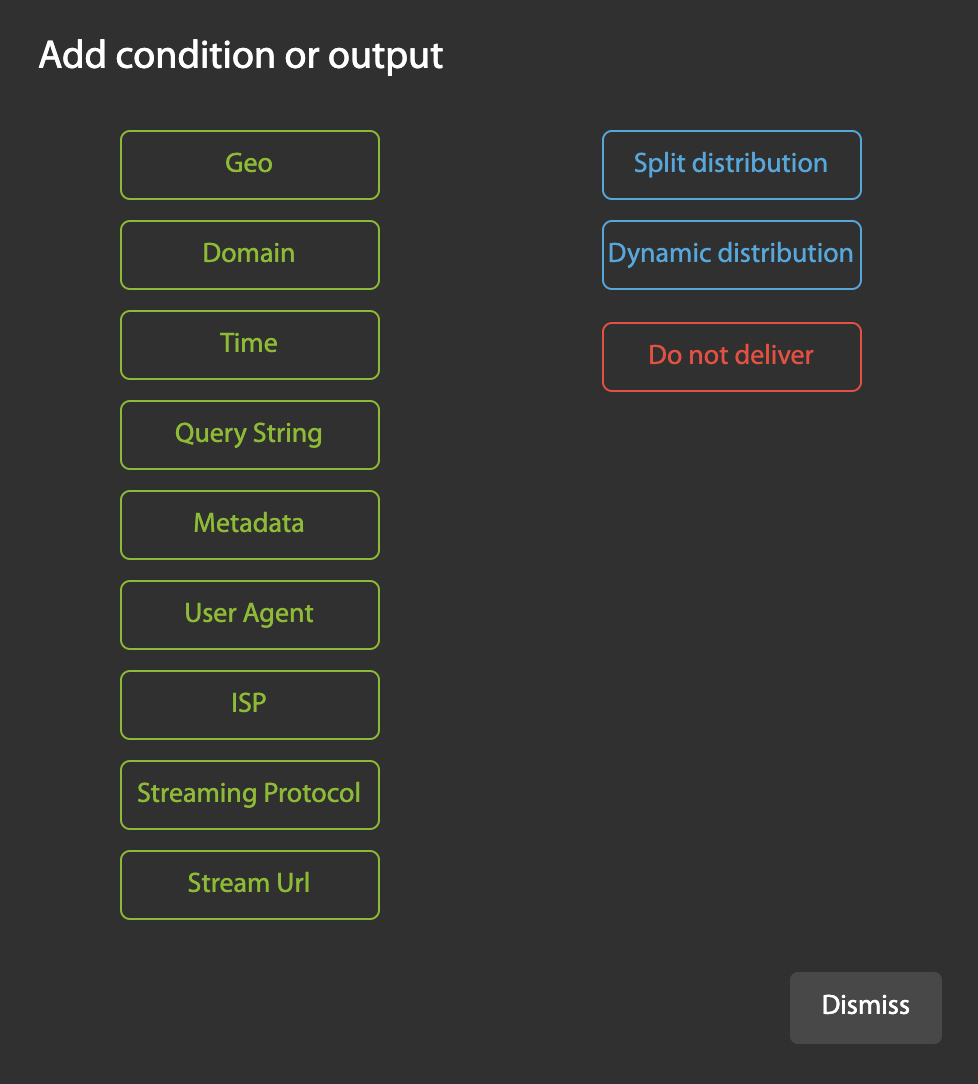

3. Choose a condition or output:

Actions

Split

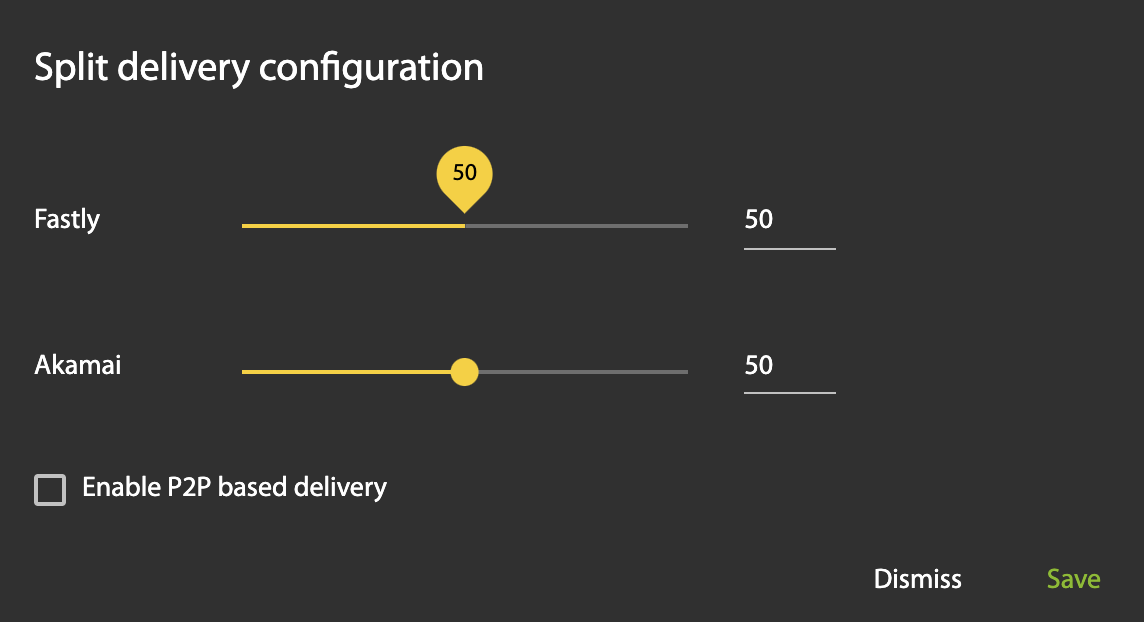

Split distribution: Insert description here. Click on the settings button to display the configuration panel:

Delivery Split: Move the slider for each CDN to set a desired delivery percentage

Enable P2P based delivery: Check this box to enable P2P delivery

Dynamic

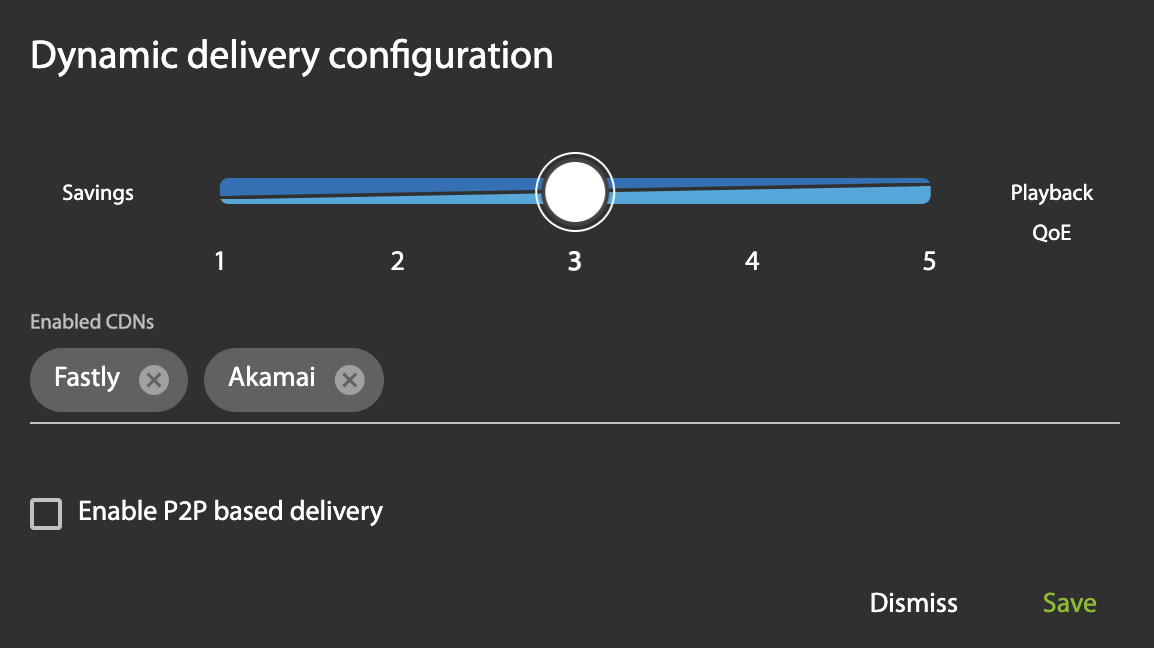

Dynamic distribution: Insert description here. Click on the settings button to display the configuration panel:

Delivery Profile: Choose a setting from 1 (optimized savings) to 5 (optimized QoE)

Enabled CDNs: Type a CDNs name to add to the list of enabled CDNs, or click the X to remove a CDN.

Enable P2P based delivery: Check this box to enable P2P delivery

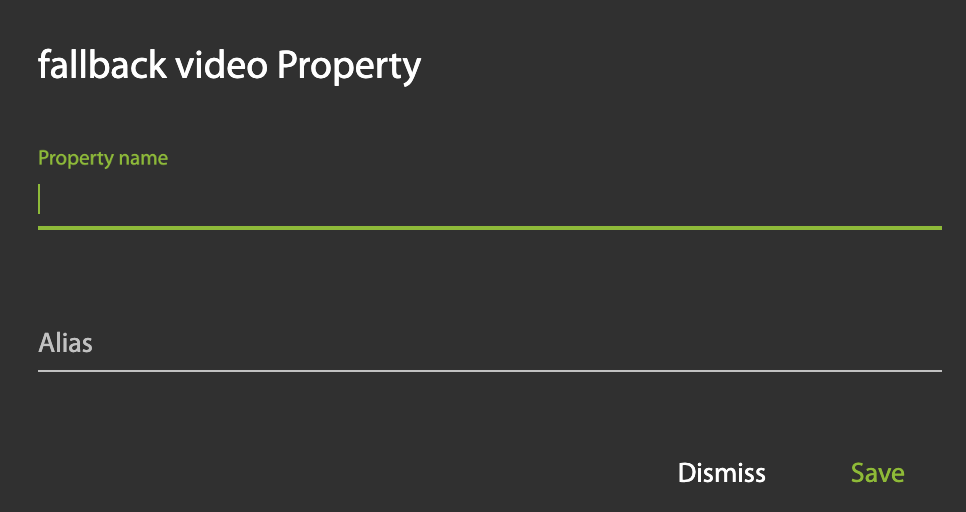

Do not deliver

Do not deliver: Insert description here.

Property Name: TBD

Alias: TBD

Conditions

Geo

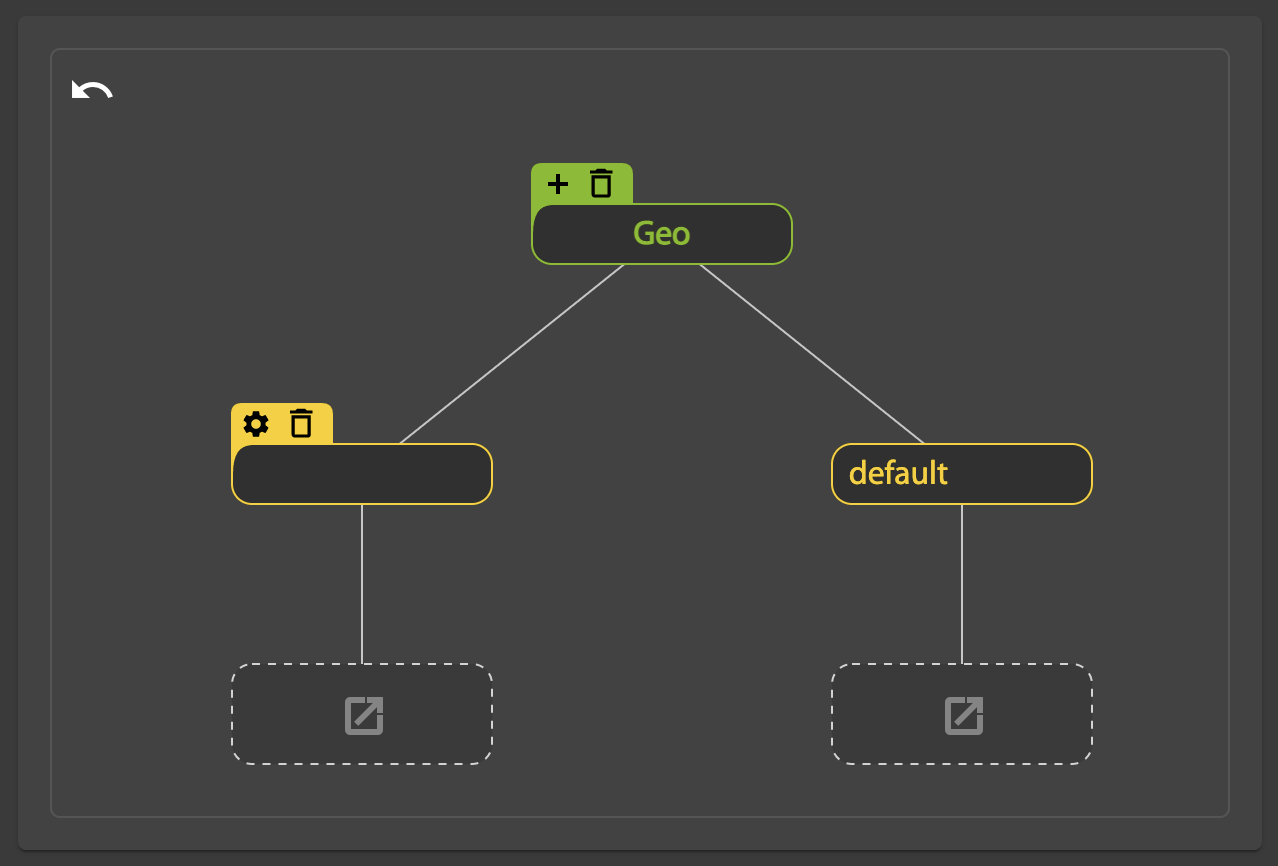

Geo: Insert description here. Click on the + button to add a new segment:

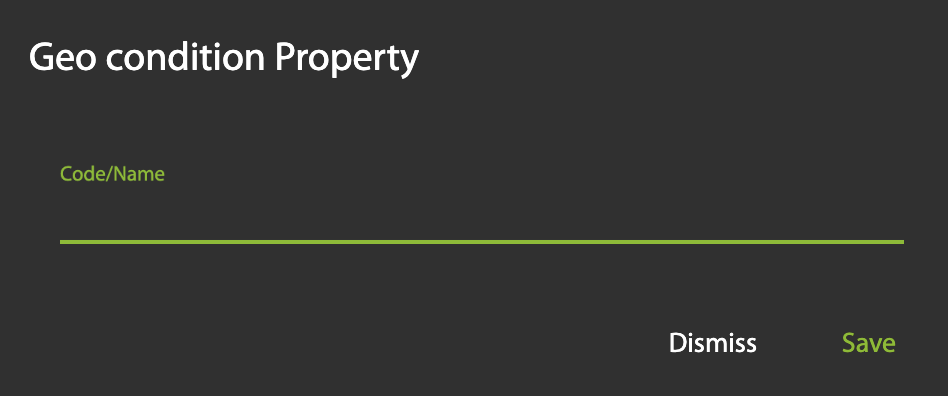

Click on the settings button to display the property panel:

Code/Name: Enter the name (e.g. Spain) or code (e.g. ES) for a country

Domain

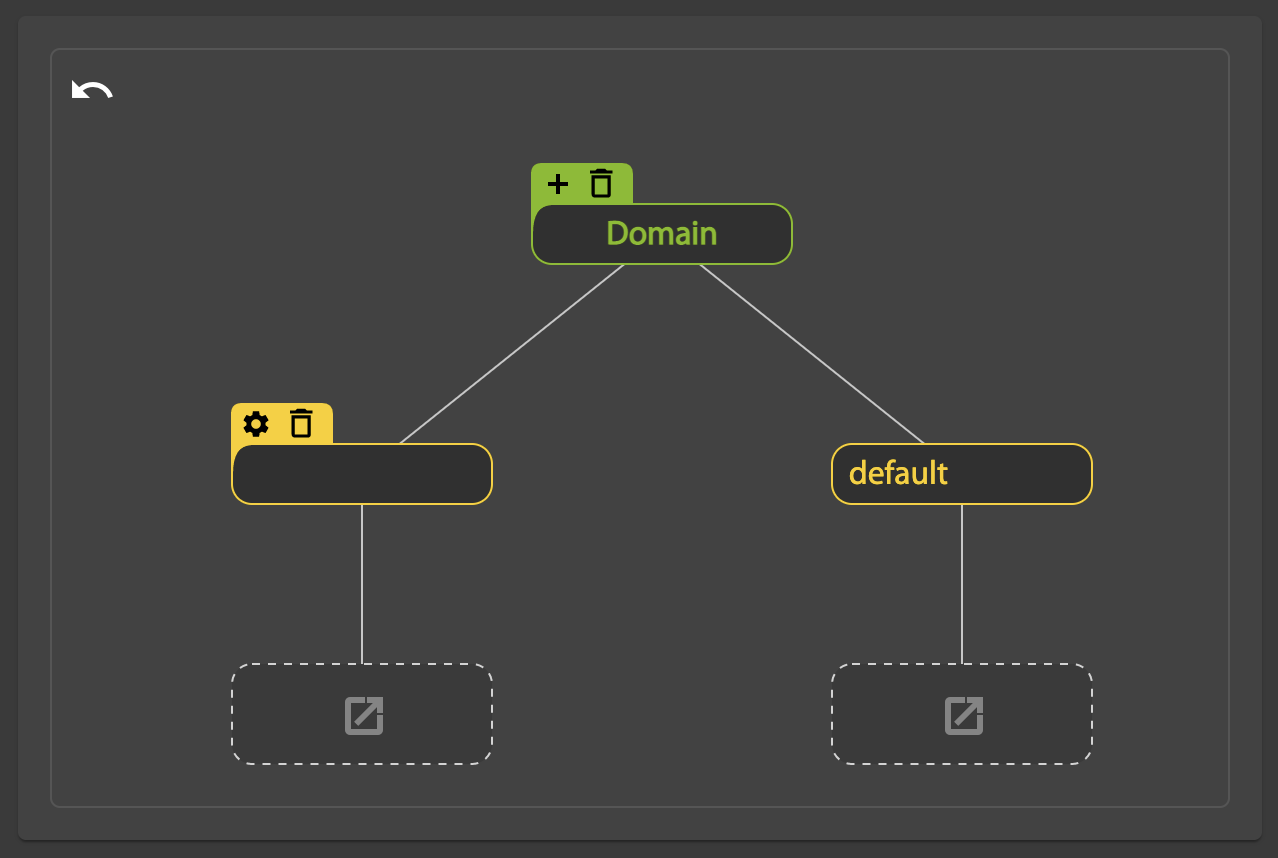

Domain: Insert description here. Click on the + button to add a new segment:

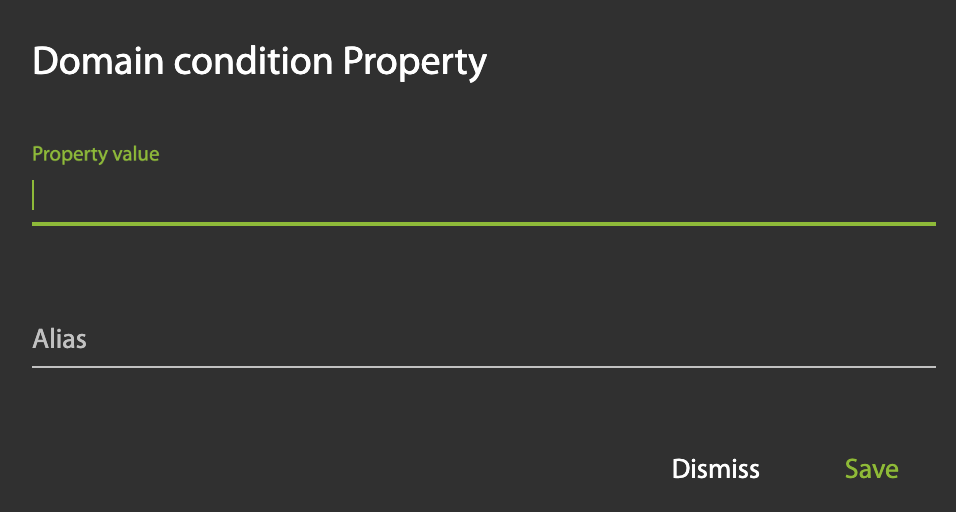

Click on the settings button to display the property panel:

Property value: TBD

Alias: TBD

Time

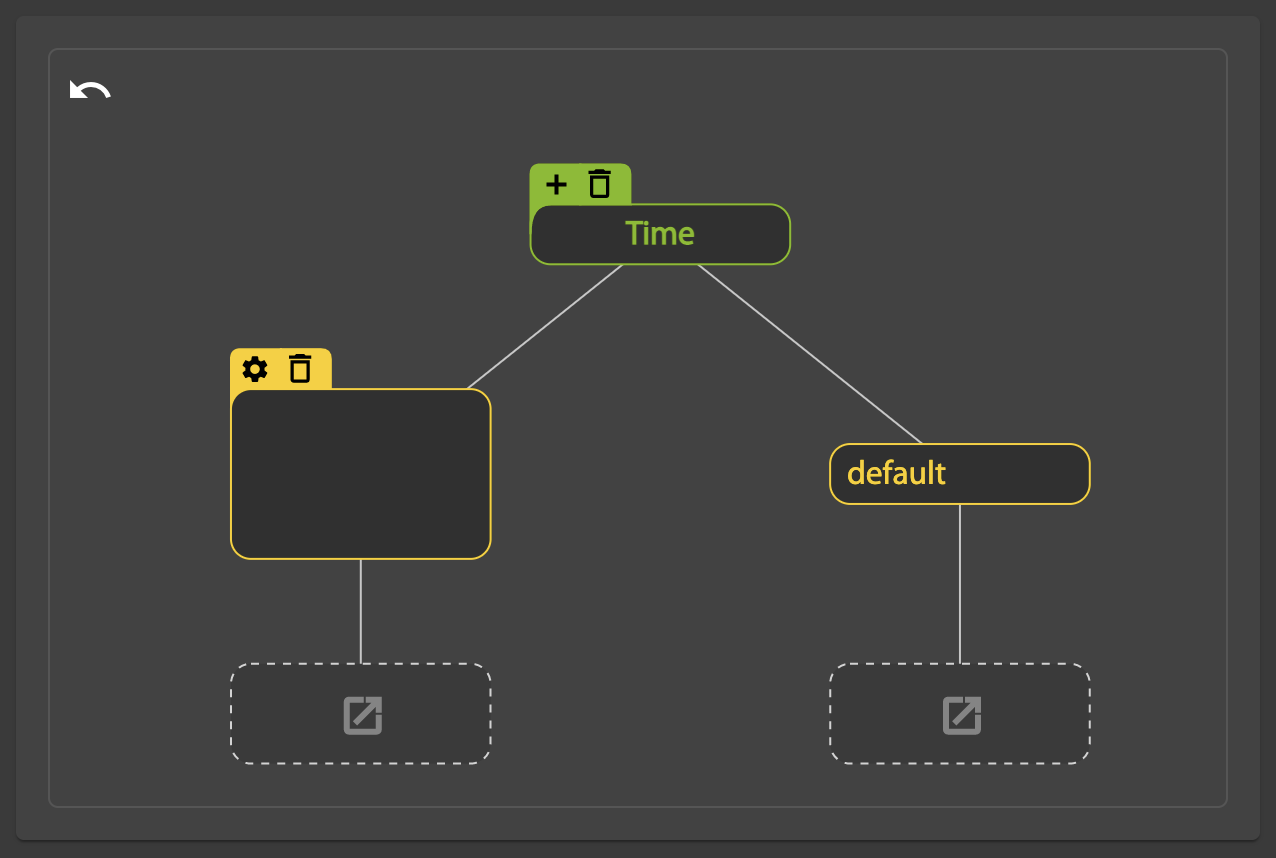

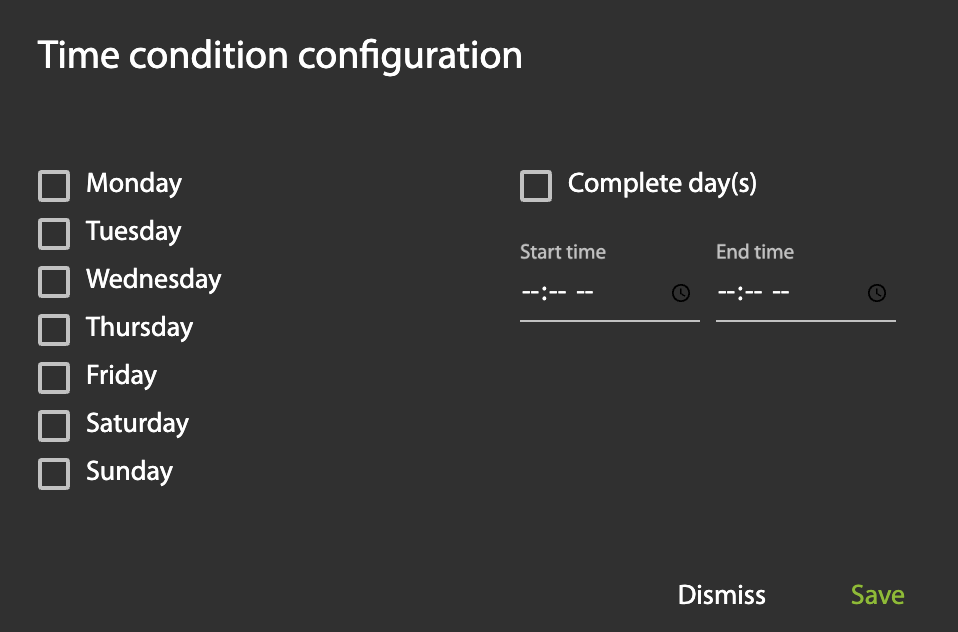

Time: Insert description here. Click on the + button to add a new segment:

Click on the settings button to display the property panel:

Weekday: TBD

Complete day(s): TBD

Start/End time: TBD

Query String

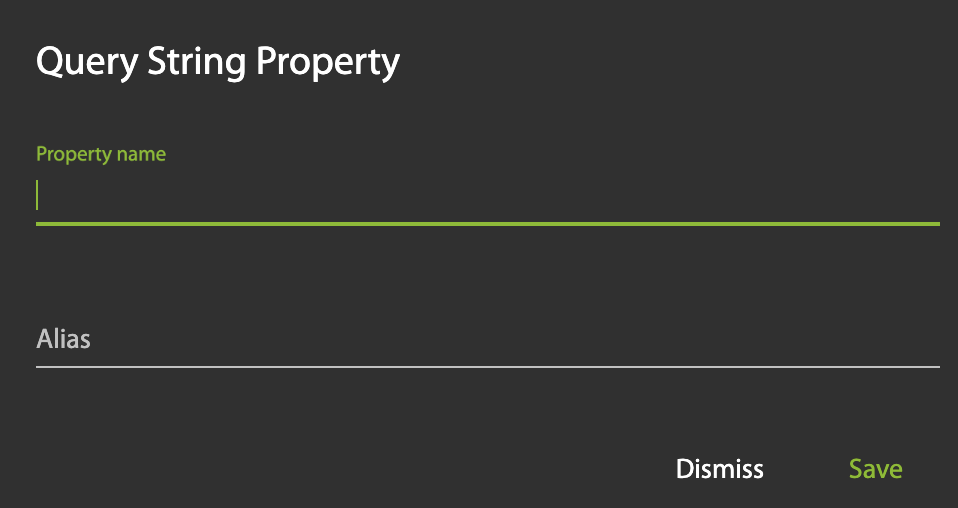

Query String: Insert description here. Click on the settings button to display the property panel:

Property value: TBD

Alias: TBD

Click on the + button to add a new segment:

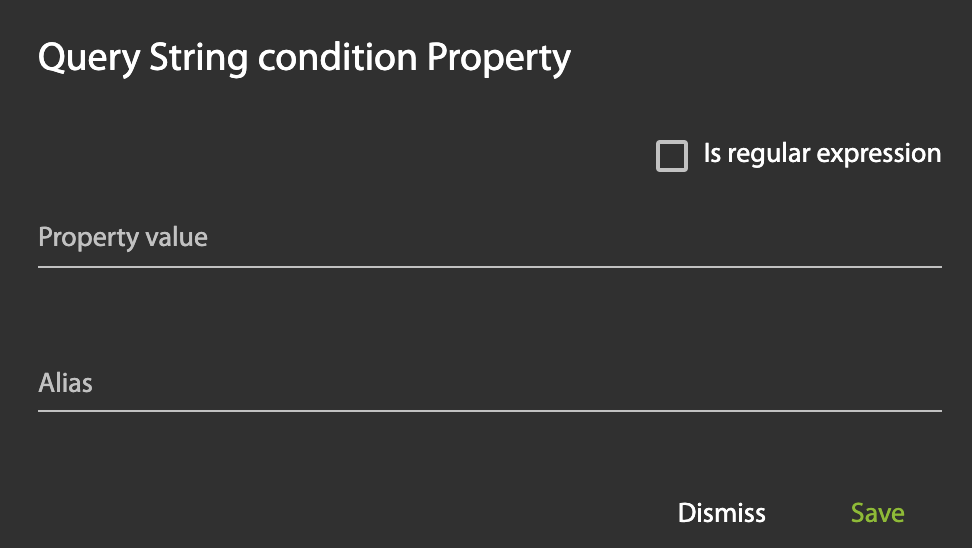

Click on the settings button to display the property panel:

Is regular expression: TBD

Property value: TBD

Alias: TBD

Metadata

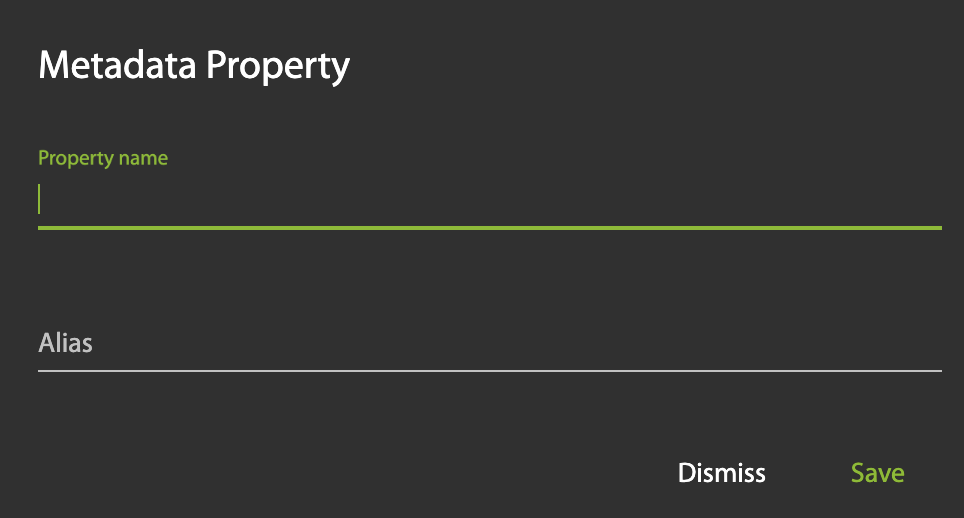

Metadata: Insert description here. Click on the settings button to display the property panel:

Property name: TBD

Alias: TBD

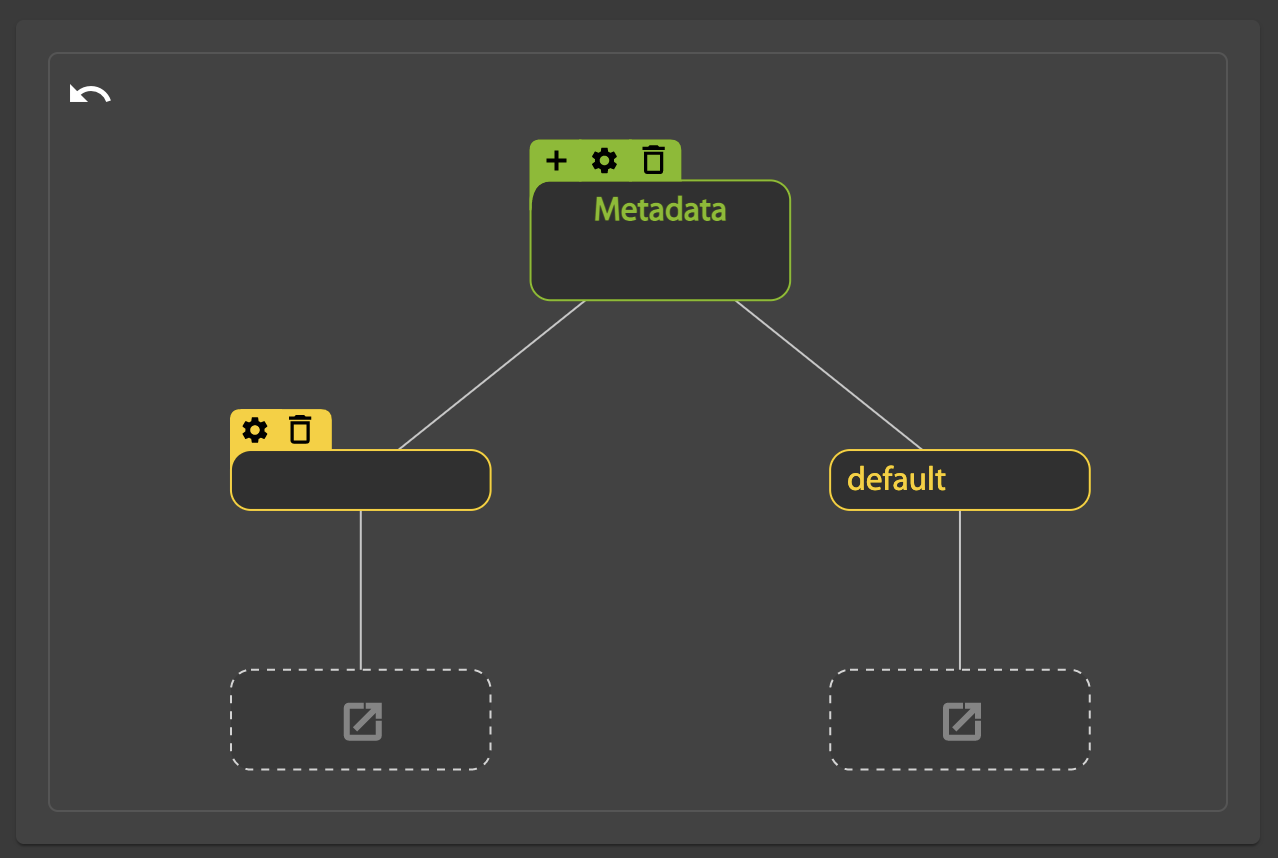

Click on the + button to add a new segment:

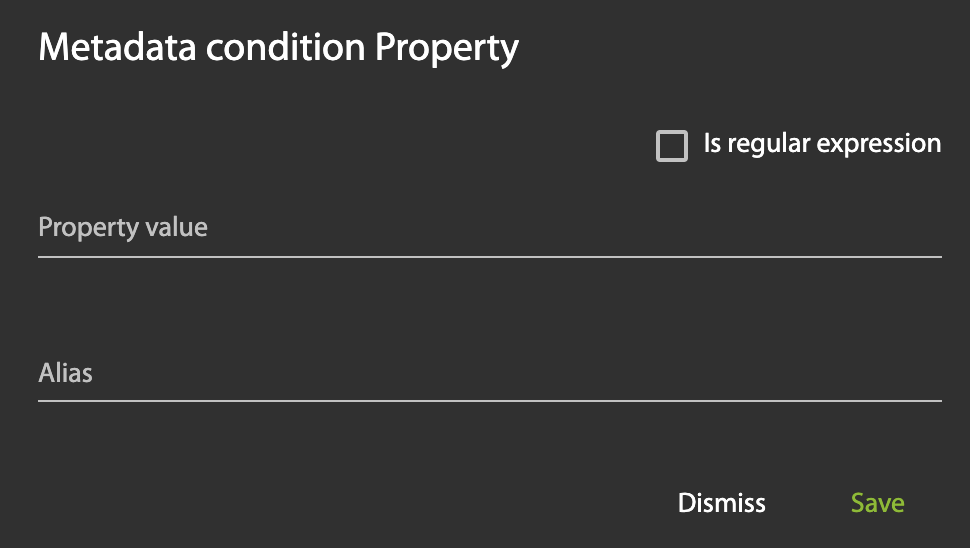

Click on the settings button to display the property panel:

Is regular expression: TBD

Property value: TBD

Alias: TBD

ISP

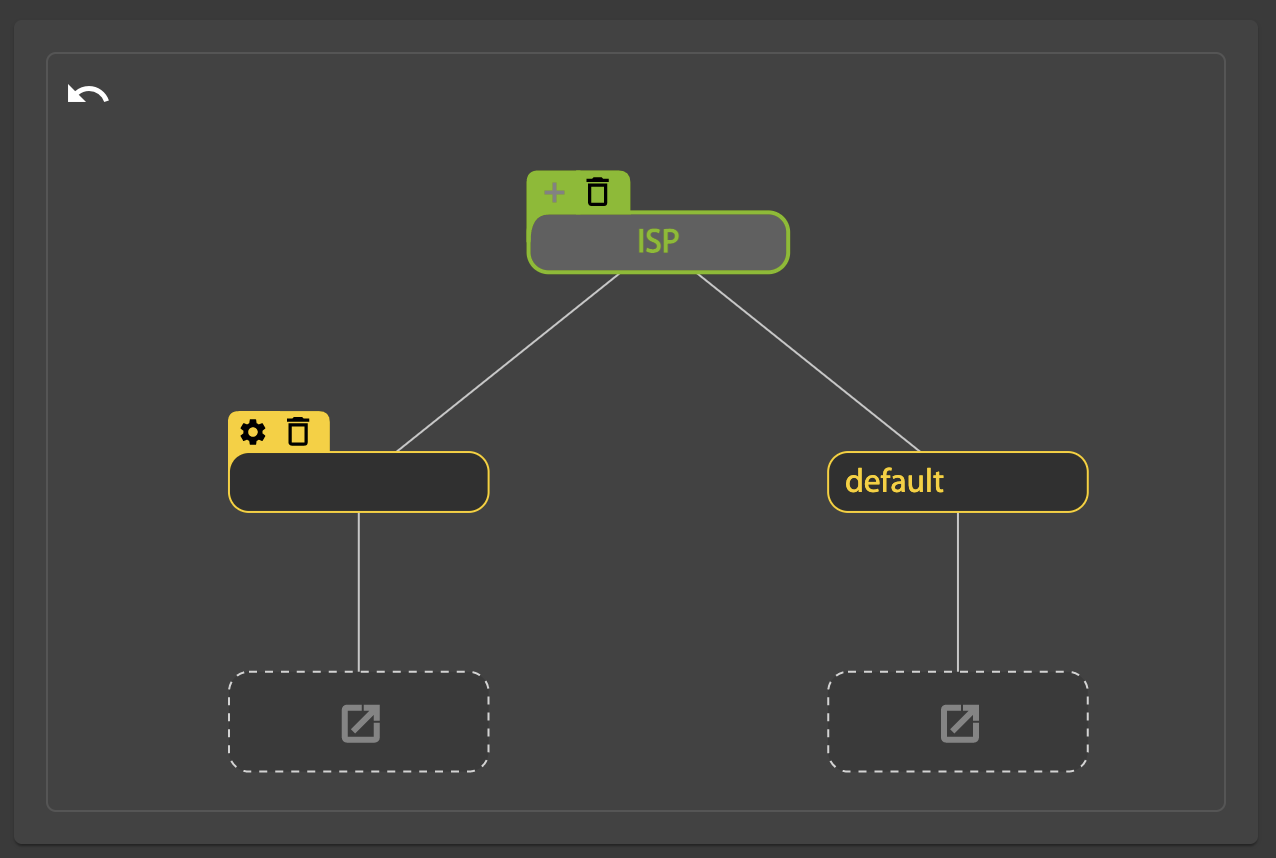

ISP: Insert description here. Click on the + button to add a new segment:

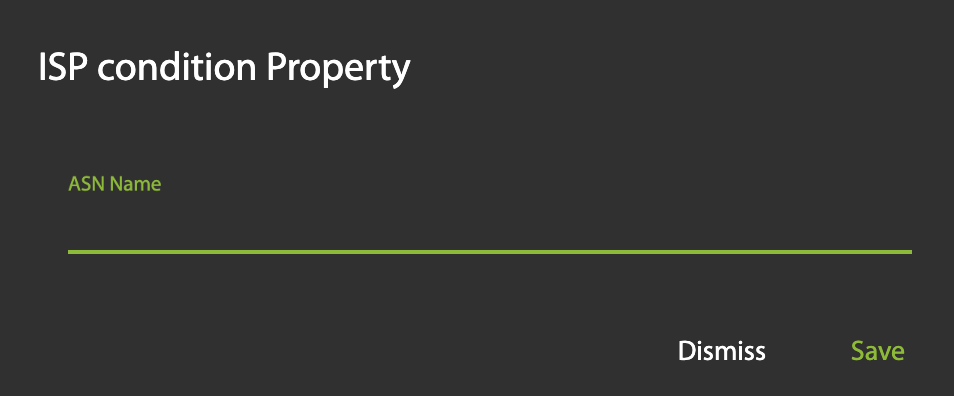

Click on the settings button to display the property panel:

ASN Name: TBD

User Agent

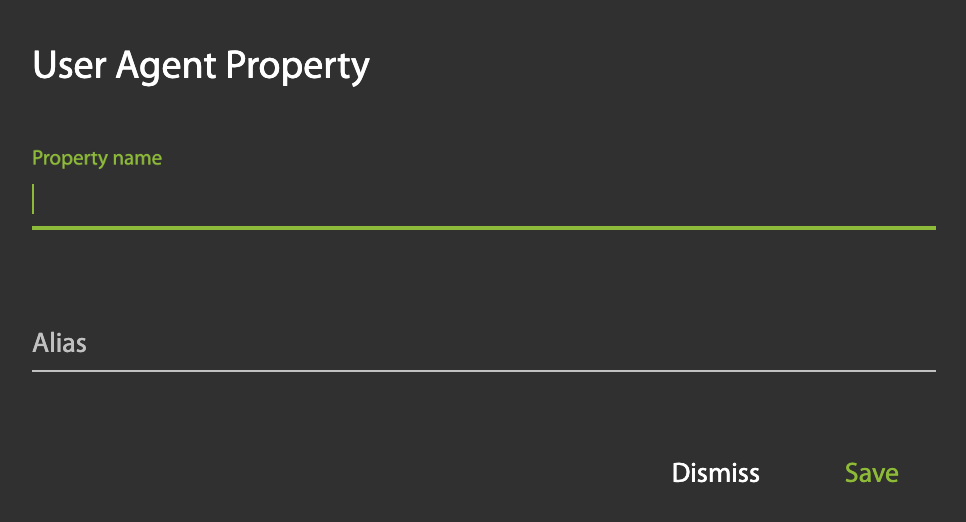

User Agent: Insert description here. Click on the settings button to display the property panel:

Property name: TBD

Alias: TBD

Click on the + button to add a new segment:

Click on the settings button to display the property panel:

Is regular expression: TBD

Property value: TBD

Alias: TBD

Streaming Protocol

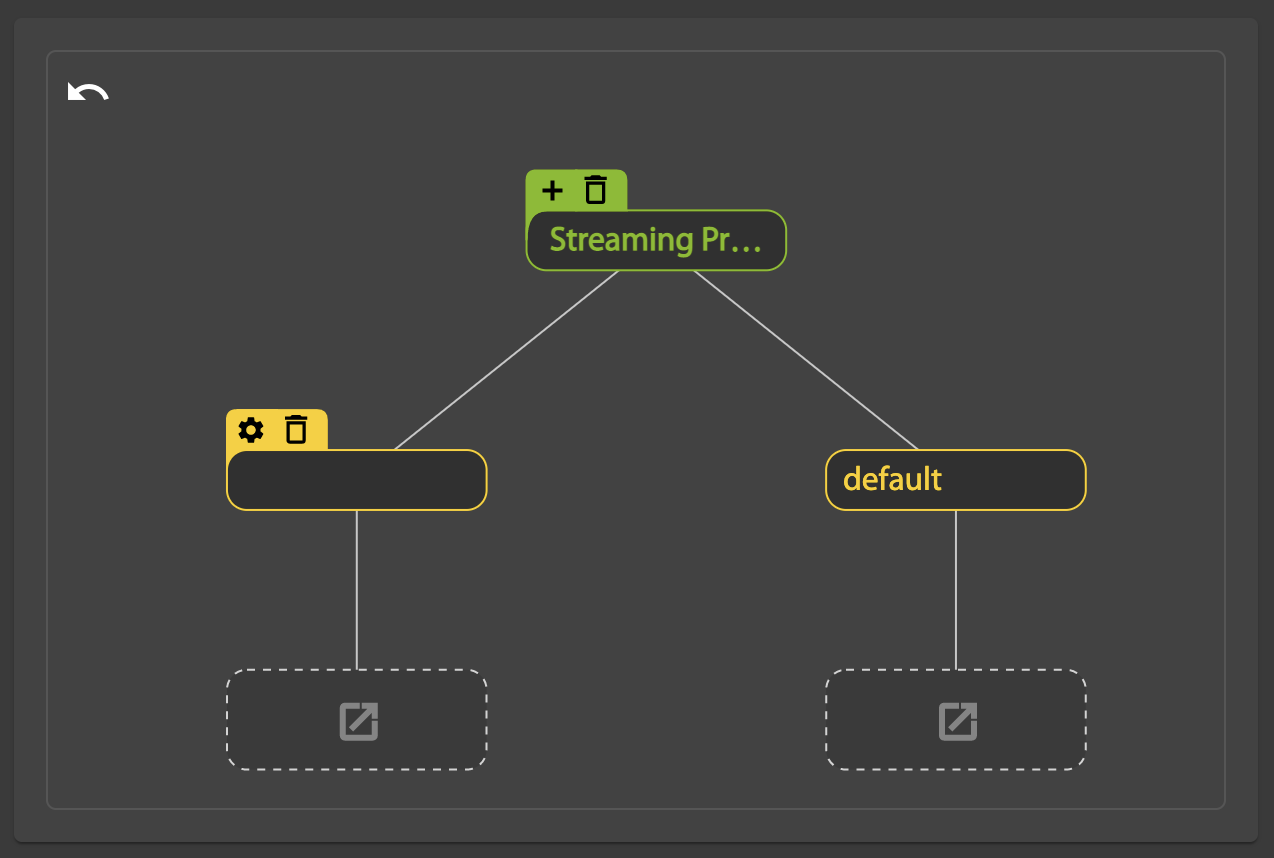

Streaming Protocol: Insert description here. Click on the + button to add a new segment:

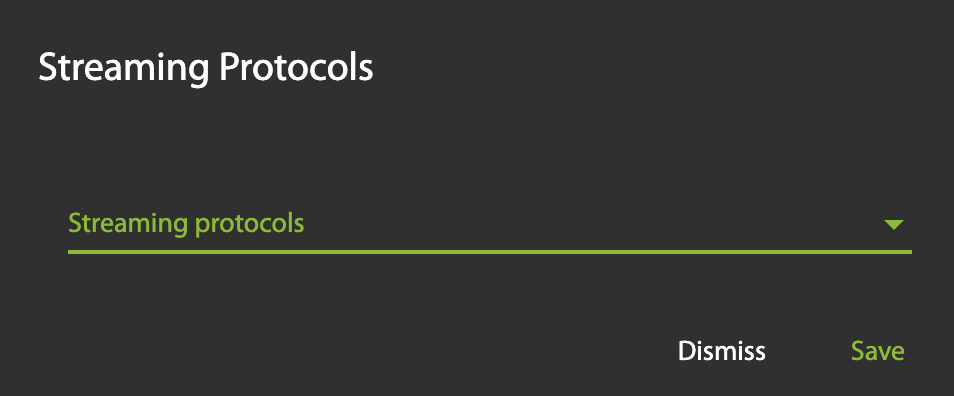

Click on the settings button to display the property panel:

Streaming protocols: TBD

Stream URL

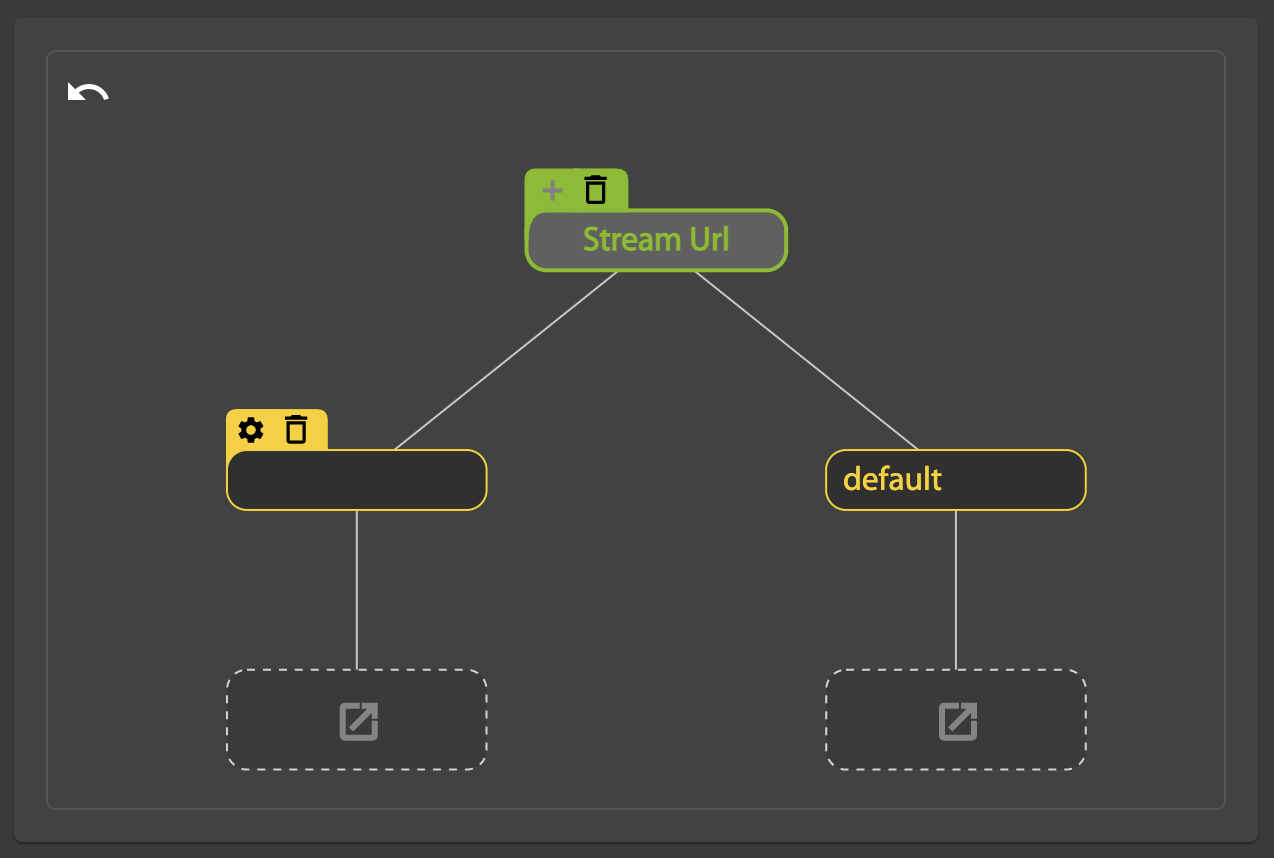

Stream URL: Insert description here. Click on the + button to add a new segment:

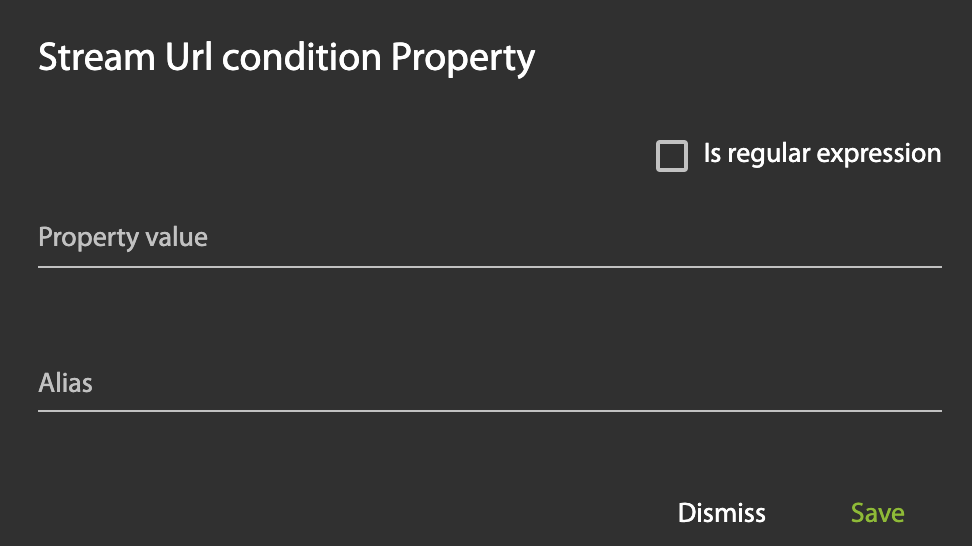

Click on the settings button to display the property panel:

Is regular expression: TBD

Property value: TBD

Alias: TBD
