Metadata List View

The Metadata List View displays a summary of defined metadata sources for Kraken, including the Source Name, Type (Input Method), Data Format (KLV or CoT), and Parameters (Network Settings) for each source. It also provides an option for you to delete a source.

1. Select Streaming from the sidebar, and go to the Metadata tab.

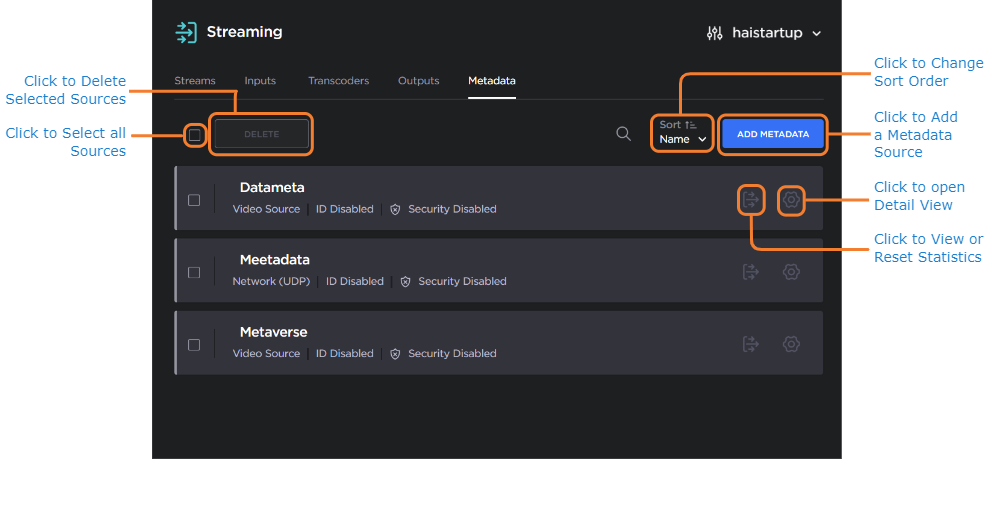

   The Metadata List View opens, as shown in the following example:

2. From here you can perform the following tasks:
   • To add a metadata source, click the Add Metadata button.
   • To modify the sort order, click the Sort dropdown menu. The default is set to sort by Name, in Ascending order.
   • To search for specific metadata sources, click the Search icon



      and type in key words to identify the source. If no related metadata source is found, the search page will return No Search Results.
   • To view details or modify the settings for a metadata source, click the parameters icon



     on the far right of the panel. See Metadata Settings.
   • To view the transcoder's corresponding stream name and status, click the Streams icon



      on the transcoder panel.
   • To delete one or multiple metadata source(s), check the checkbox(es) of the metadata source(s) you want to delete, and click the Delete button at the top of the list.
3. To apply your changes, click Apply.



Related Topics

• Configuring Metadata Parameters
