Configuring CoT Retransmission

From the Metadata Detail View, you can configure CoT retransmission of COT metadata received over the Serial or UDP interface. The metadata will be retransmitted as a CoT/UDP unicast or multicast stream so that multiple CoT listeners can access the source CoT data.

To configure CoT Retransmission:

  1. From the Metadata List View, create or modify a serial or UDP CoT metadata source to retransmit. For details on setting up the metadata source, see Configuring Metadata Parameters.

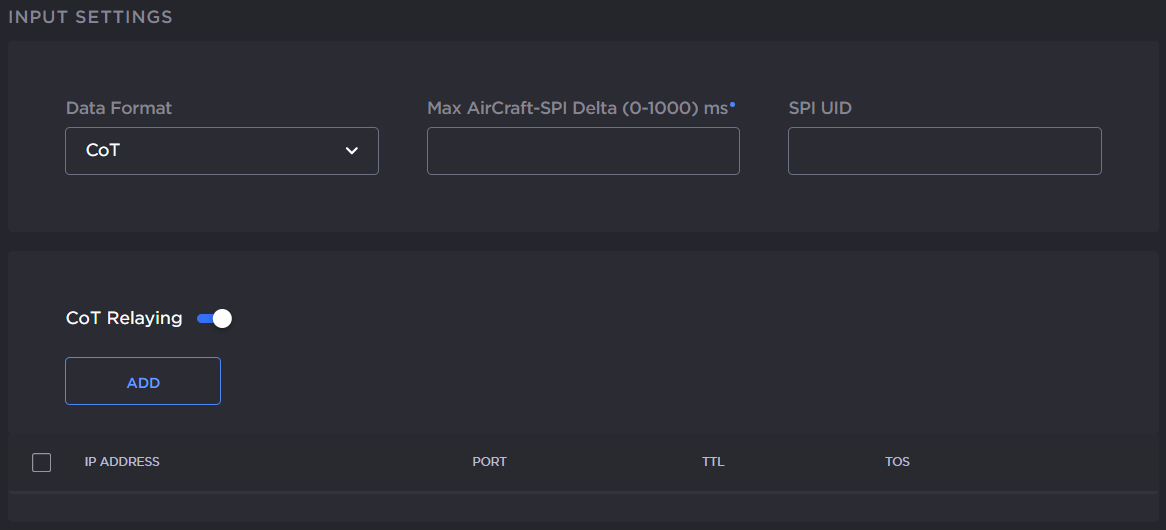

  2. On the Metadata Detail View, select CoT as the Data Format, and toggle CoT Relaying on (as shown in the following example).
  3. To add a CoT retransmission destination, click the Add button.

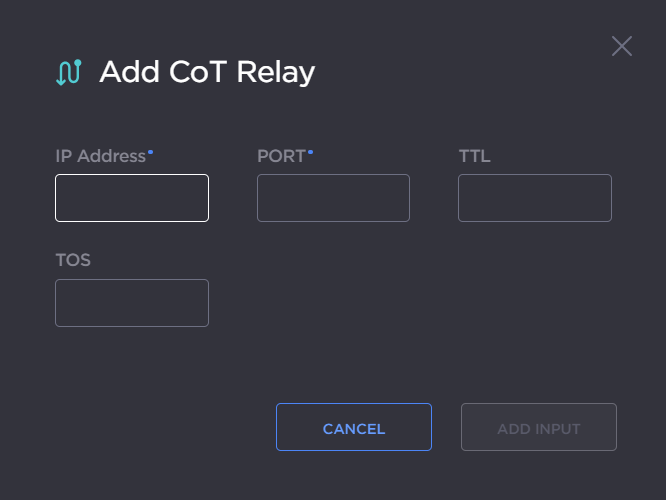

  4. On the Add CoT Relay dialog, enter the IP Address and Port for the destination.
  5. Click Add Input

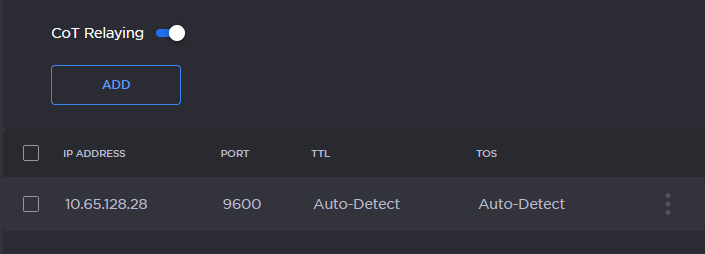

    The CoT Relay input is added to the list:
  6. To edit or delete a CoT relay destination, click the vertical ellipsis menu
     and select Edit or Delete.
