Creating a Route

1. If you have not already done so, sign in to the Media Gateway/SRT Gateway Web interface.
2. On the Route List screen, click the Add Route button.

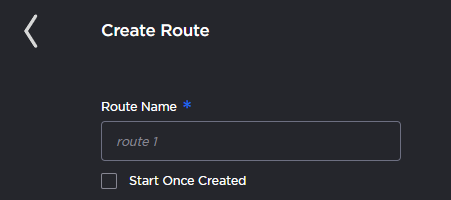

3. Supply a Route Name and check the Start Once Created checkbox so that the stream is started after you create it.

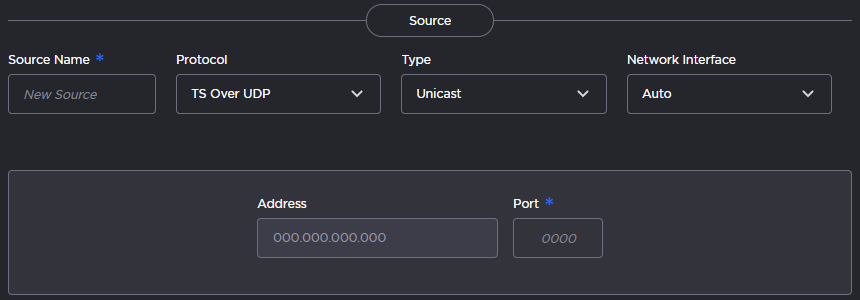

4. In the Source section, provide a Source Name, select TS over UDP for the Protocol (for this example), and enter the port number of the source Makito X4 Encoder (see Step #10 in Setting Up a Source Stream).




5. Click the Add Destination button.

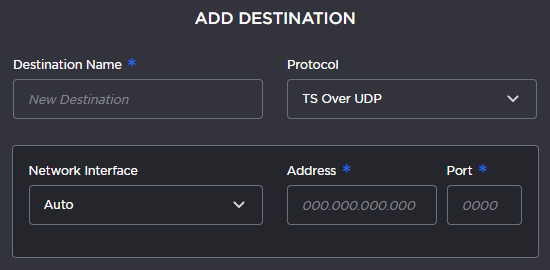

6. In the Add Destination dialog, provide a destination name, select TS over UDP for the protocol, and enter the IP Address and port number of the destination Makito X4 Decoder (see Step #4 in Setting Up a Destination).




7. When finished, click Save. The new route appears in the Destination list.
8. Click Create.

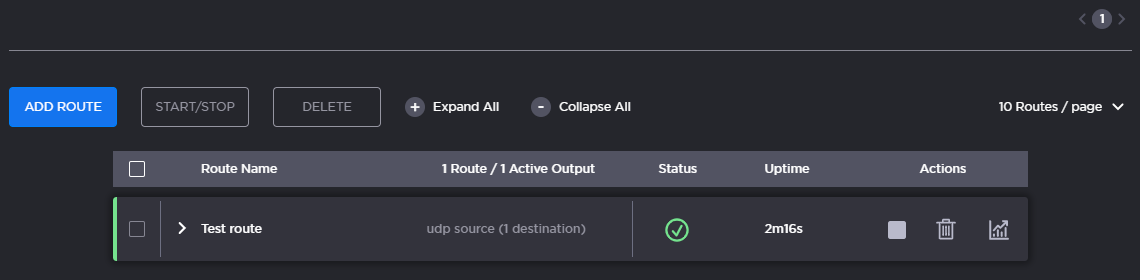

9. On the Route List screen, verify that after a few seconds the status indicator is green.




You should now see the video from the source Makito X4 Encoder relayed via Media Gateway/SRT Gateway to the monitor connected to the destination Makito X4 Decoder.
