Viewing System Activity

The web interface includes dashboards to provide a quick view of the overall system health. The System Activity dashboard shows the current status snapshot of your system as a whole, including information about the system, hardware, and disk space.

To view the system's activity dashboard:

1. In the side menu, click Reporting.

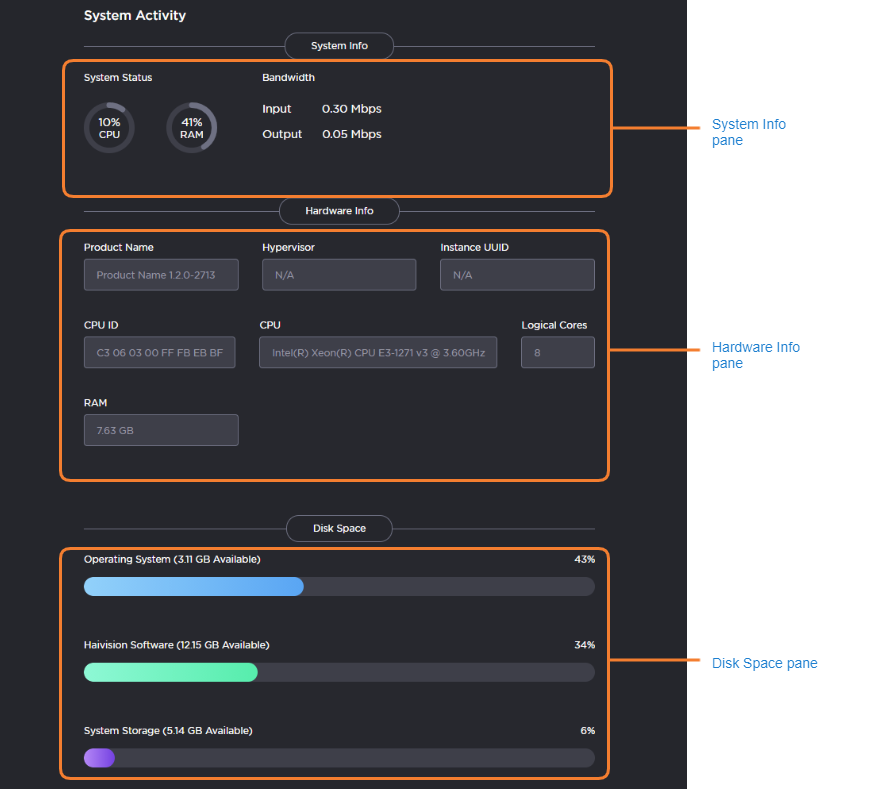

2. Click System Activity in the navigation toolbar. The System Activity dashboard appears:



The System Info pane provides the following information:

• CPU usage

• Memory usage

• Input/Output network bandwidth

The Hardware Info pane provides the following information:

• Product edition and version

• VMware information (if applicable)

• CPU, number of logical cores, and RAM information

• Service tag

The Disk Space pane provides the following information:

• Operating System

• Haivision Software

• System Storage
