Configuring Matrox Network Settings

To set a static IP address and DNS server for an IPX card:

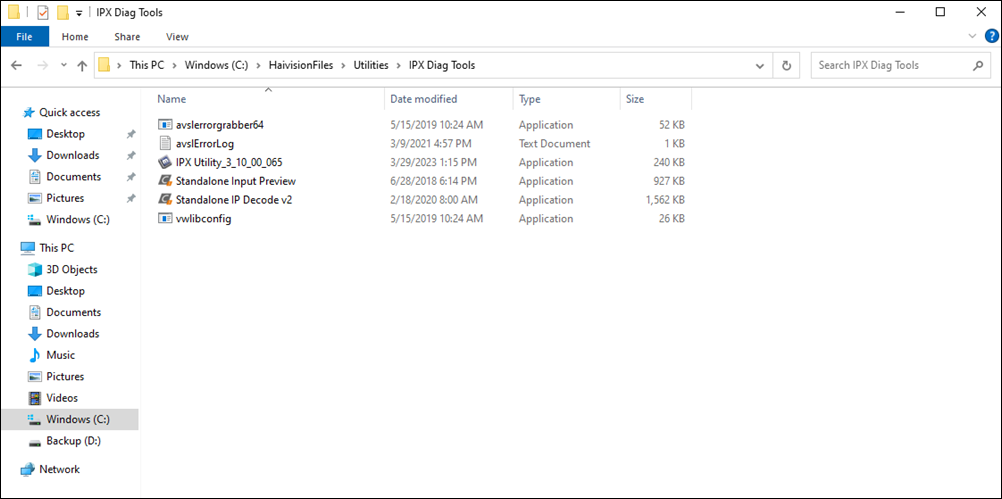

1. Open File Explorer and go to C:\HaivisionFiles\Utilities\IPX Diag Tools.

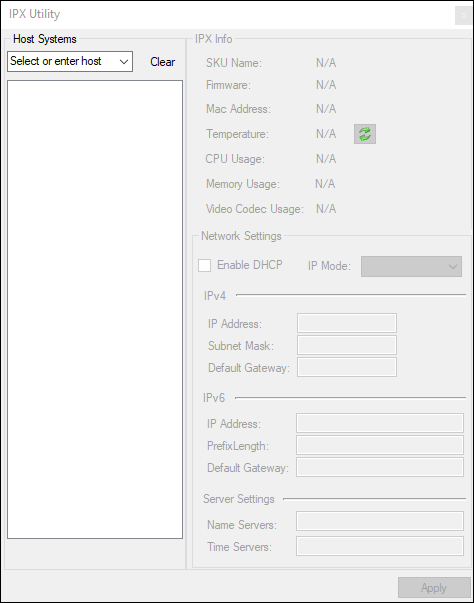

2. Click to open IPX Utility.

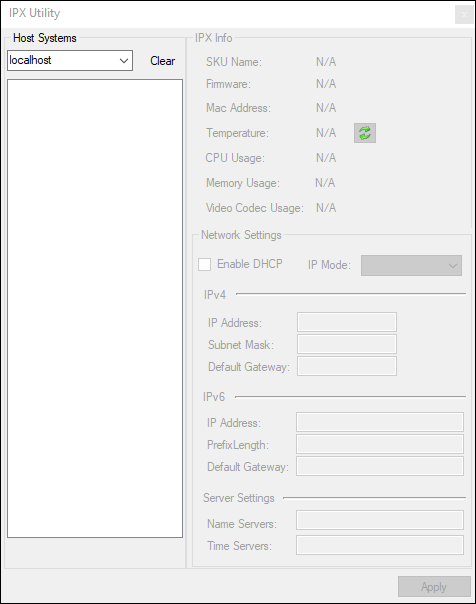

3. Type localhost in the field under Host Systems and press Enter.

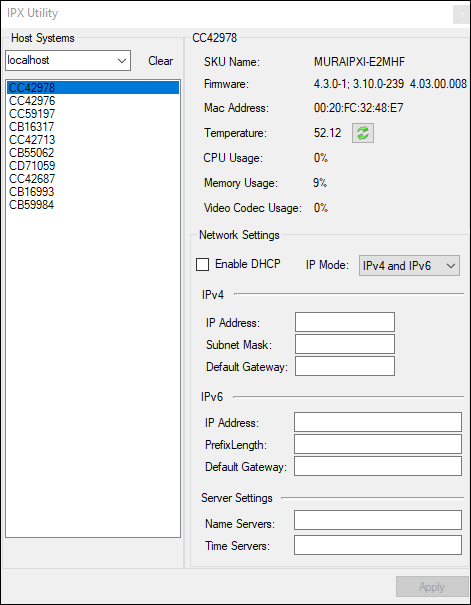

4. In the pane on the left, select the card you wish to configure.







5. In the Network Settings section, make sure the Enable DHCP checkbox is unchecked.
6. Enter the static IP Address in the IPv4 section.
7. In the Server Settings section, enter the DNS server address in the Name Servers field.
8. Click Apply to save your changes.
9. Repeat steps 4-8 to configure other IPX cards as needed.
