_MB1_MB2_Power_Connector_Pinouts_Part_Nos
The power connectors for the Single-Height and Dual-Height Chassis have the following pinouts:
Single-Height - Power Connector
Pin # | Description (Conxall P/N 16282-3SG-318) | |
|---|---|---|

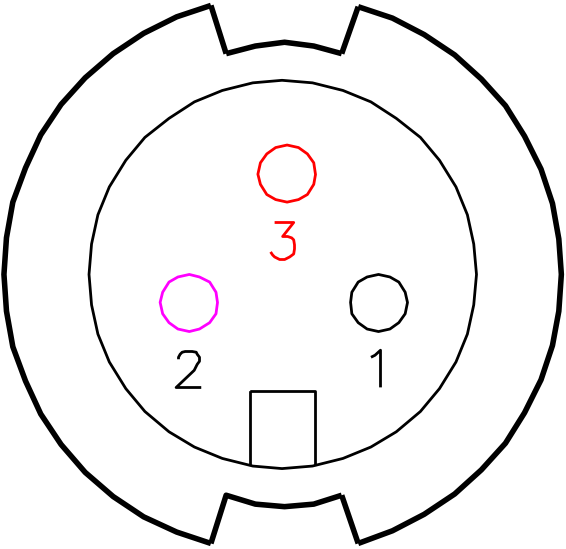

1 | Reserved / Not Connected |  Single-Height Power Connector |
2 | Ground | |
3 | VCC=+12VDC | |
Dual-Height - Power Connector
Pin # | Description (Hirose P/N HR30-6R-3P(71)) | |
|---|---|---|

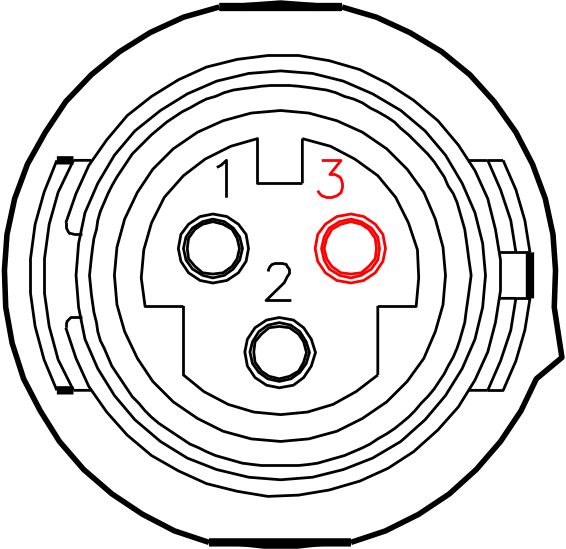

1 | Reserved / Not Connected |  Dual-Height Power Connector |
2 | Ground | |
3 | 12VDC (+V) | |
