_Ethernet Connector_X1
The following tables provide the manufacturer names, part numbers, and pinouts for the Makito X1 Rugged Network connectors.
| Network Connector v2 | |||
|---|---|---|---|
| On Unit | Mating Connector | |
| Manufacturer | LEMO | LEMO | |
| Connector Type | Network Connector | Network Connector | |
| Part Number | HEP.2M.312.XLNP | FGP.2M.312.XLCT | |
| Network Connector Pinout v2 | |
|---|---|
| Contact # | Description |
| 1 | ETH B+ |
| 2 | ETH B- |
| 3 | ETH C+ |
| 4 | ETH C- |
| 5 | ETH D+ |
| 6 | ETH D- |
| 7 | ETH A+ |
| 8 | ETH A- |
| 9 | GND |
| 10 | SYS_RST# |
| 11 | N/C |
| 12 | N/C |
| Network Connector | |||
|---|---|---|---|
 | On Unit | Mating Connector | |
| Manufacturer | Hirose | Hirose | |
| Connector Type | Network Connector | Network Connector | |
| Part Number | LF10WBRB-12S | LF10WBP-12P(31) | |

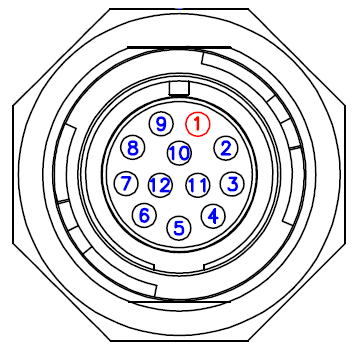

| Network Connector Pinout | |
|---|---|
| Contact # | Description |
| 1 | ETH A+ |
| 2 | ETH A- |
| 3 | ETH B+ |
| 4 | ETH B- |
| 5 | ETH C- |
| 6 | ETH C+ |
| 7 | ETH D- |
| 8 | ETH D+ |
| 9 | N/C |
| 10 | N/C |
| 11 | SYS_RST# |
| 12 | GND |
