_Ethernet Connector
Network Connector | ||
|---|---|---|
On Unit | Mating Connector | |
Manufacturer | Hirose | Hirose |
Connector Type | Network Connector | Network Connector |
Part Number | LF10WBRB-12S | LF10WBP-12P or LF10WBP-12P(31) |
Ethernet
Network Connector Pinout | |
|---|---|
Contact # | Description |
1 | ETH A+ |
2 | ETH A- |
3 | ETH B+ |
4 | ETH B- |
5 | ETH C- |
6 | ETH C+ |
7 | ETH D- |
8 | ETH D+ |
Ethernet GBE0 Pin Locations

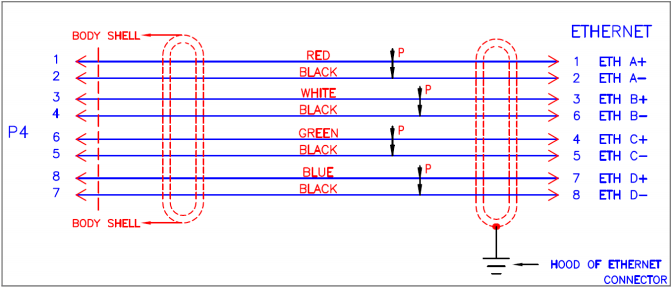

Ethernet Wiring Diagram
Ethernet Connector Pinout Diagram
