Editing Network Settings

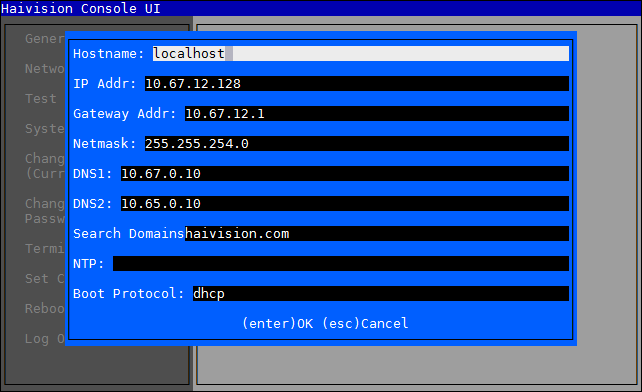

The Network Settings screen allows you to view and edit the device's network configuration.

Note

These settings can also be changed in the web interface. See your User's Guide for more information.

To change network settings:

1. In the navigation sidebar, use the ↑↓ (up and down arrow) keys to highlight Network Settings.

2. Press the Enter key.






   Note

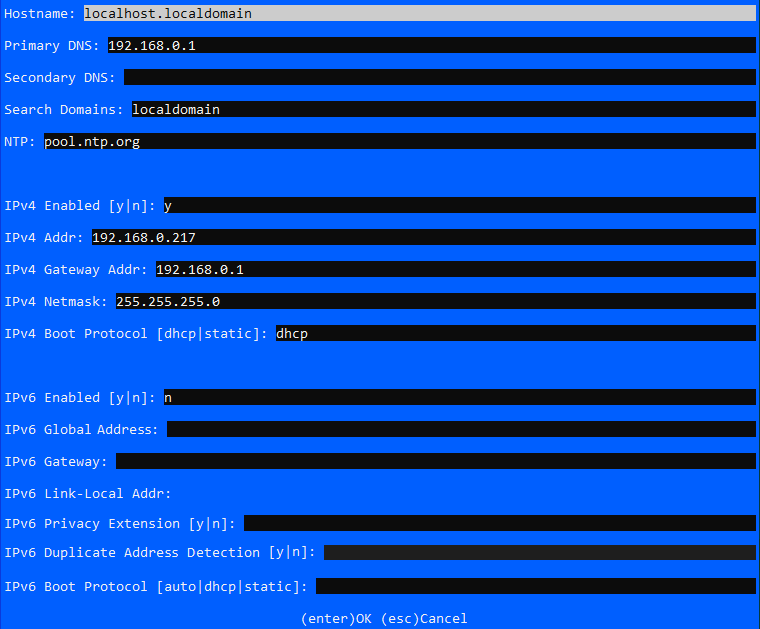

   If your device supports IPv6, the network settings page contains both IPv4 and IPv6 settings:




3. To change a setting:

   • Use the ↑↓ (up and down arrow) keys to navigate to the field you want to change.



     Important

     Use the ↓ (down arrow) to step through all the Network Settings. Depending on your SSH client settings, the console window might not display all the available settings. For instance, "Boot Protocol" may not be visible if your screen height is not large enough.

   • Use the Delete/Backspace key to delete the existing contents and then type in your modifications.

4. When finished editing the information, press the Enter key to save your changes and exit to the main screen. Or, press the Esc key to exit without saving any changes.



   Note

   After pressing Enter, it takes a few seconds for the settings to be saved. The system may seem unresponsive during this time.
