Starting a Live

To start the Live:

1. From the Home menu, use the wheel to select .

2. Press the wheel to enter the LIVE menu. The video preview appears on screen and the live profile selected is reminded. When turning the wheel, the LIVE menu provides some additional information.



Selected Live Profile
Selected Record Profile
Auto-record state (OFF/ON)
The Selected Destination Profile

You can modify these settings before starting the Live action.

• To select another Live profile:

  1. Turn the wheel to highlight the Live profile ().

  2. Press the wheel and turn to select the required profile.

  3. Press the wheel to confirm the choice.

• To select another Record profile:

  1. Turn the wheel to highlight the Record profile ().

  2. Press the wheel and turn to select the required profile.

  3. Press the wheel to confirm the choice.

• To modify the Auto-Record mode:

  1. Turn the wheel to highlight the Auto-record option.

  2. Press to switch the toggle button and enable Auto-record.

Note

Simultaneous Live and Record in H.264 1080p50/59.94/60 is not supported.

• To select another Destination profile:

  1. Turn the wheel to highlight the Destination Profile ().

  2. Press the wheel and turn to select the required profile.

  3. Press the wheel to confirm the choice

4. Turn the wheel to highlight and press the wheel to start the live. The video preview appears on screen.



   Audio Bars indicating Audio Levels

   Live Duration

5. Turn the wheel to the left to display information about the Live action.



Network Bitrate
End-to-End Latency configured in the Live Profile or modified remotely from StreamHub interface
Source Standard
Live Duration.

Note

Refer to the StreamHub User Guide to set another delay during Live operation.

In case of a live and simultaneous Record, a different screen appears:

Remaining recording time possible on SD card.
Space used on SD card

To stop the Live:

1. Turn the wheel to the right.

2. Press the wheel to stop the live.

3. Press the wheel to confirm.

To stop the Record:

1. Turn the wheel twice to the right.

2. Press the wheel to stop the record.

3. Press the wheel to confirm.

To start the Live:

1. On the Dashboard, in the Streams section, click the  icon to check that the unit settings are configured and selected as required.

Note

If you enabled the Auto-record option, the video file is automatically recorded during the live.

2. Click the Save button.

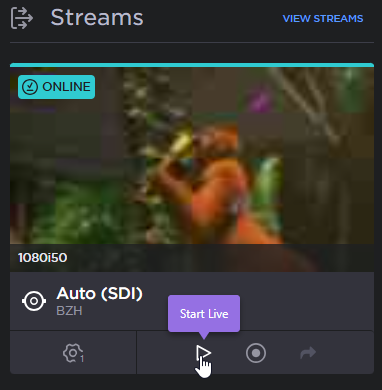

3. Click the  icon to start the Live.



To stop the Live:

1. Click the  icon.

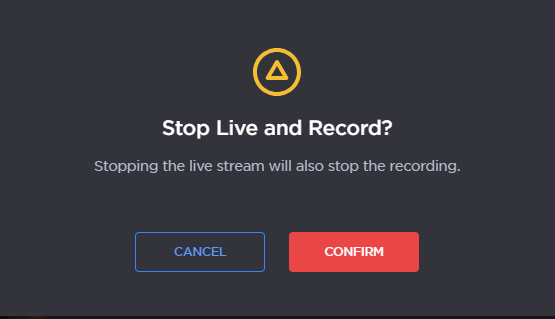

2. Click the Confirm button to confirm stopping the video transmission.
