Starting a Live

You can start a live manually or you can enable the Auto-live at startup. See Enabling/Disabling Auto-Live at Startup.

Unit Panel

To start the Live:

1. From the Home menu, tap . The video preview appears on screen and the live profile selected is reminded. When tapping or , the Live menu provides some additional information.

2. To select another Live profile:

   1. Tap the field.

   2. Tap another Live profile.

3. To select another Record profile:

   1. Tap the field.

   2. Tap another Record profile.

4. To modify the Auto-Record mode:

   1. Tap the toggle button to enable or disable Auto-Record.

Note

Simultaneous Live and Record in H.264 1080p50/59.94/60 is not supported.

5. To select another Destination profile:

   1. Tap the field.

   2. Tap a different Destination profile.

6. Tap  and to start the Live. The video preview appears on screen.



   Audio Bars indicating Audio Levels

   Record Indicator

   Live Indicator

    Live Duration


7. Tap to display information about the Live action.

Network Bitrate
End-to-End Latency configured in the Live Profile or modified remotely from StreamHub interface
Source Standard
Live Duration

Note

Refer to the StreamHub User Guide to set another delay during Live operation.

In case of a live and simultaneous Record, a different screen appears:

Remaining recording time possible on SD card.
Space used on SD card

To stop the Live:

1. Tap  and .

2. Tap > STOP LIVE.

To stop the Record:

1. Tap  and .

2. Tap > STOP RECORD.

Connection Loss during a Live with Simultaneous Record

Recordings of your Live events will continue even if the network connection is lost and Live is interrupted.

If the network connection is lost:

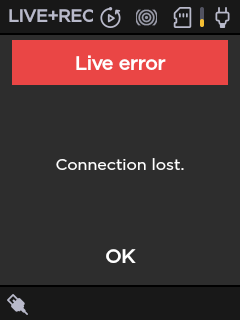

1. You will receive an error message.

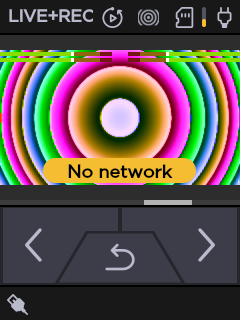

2. Tap OK to return to the Live preview, where you will see the recording still in progress.

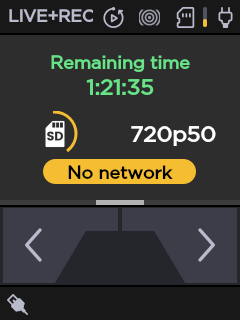

3. Tap  to view the resolution and remaining recording time possible on the SD card.



Note

The Forward function is disabled when network connection is lost.

Web Interface

To start the Live:

1. On the Dashboard, in the Streams section, click the icon to check that the unit settings are configured and selected as required.

Note

If you enabled the Auto-record option, the video file is automatically recorded during the live.

2. Click the Save button.

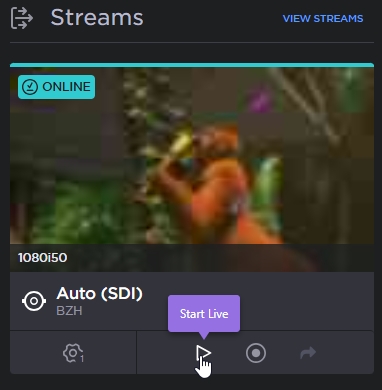

3. Click the icon to start the Live.



To stop the Live:

1. Click the  icon.

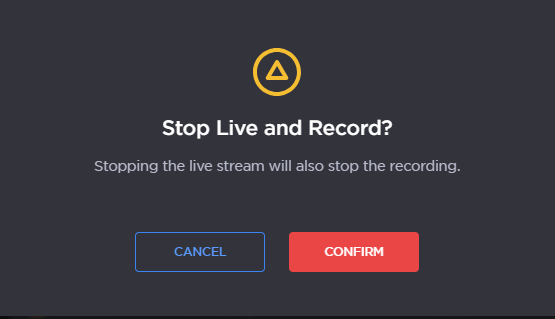

2. Click the Confirm button to confirm stopping the video transmission.



Connection Loss during a Live with Simultaneous Record

Recordings of your Live events will continue even if the network connection is lost and Live is interrupted.

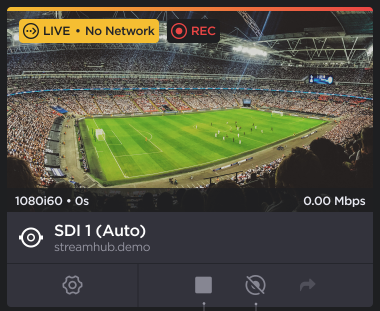

Network loss will be indicated by the No Network warning on the Live preview panel. When this occurs, you have the option to:

• Stop the Live and the Recording by clicking the icon,

• Stop the Recording only by clicking the icon.

Note

The Forward function is disabled when network connection is lost.
