Indicator Definition

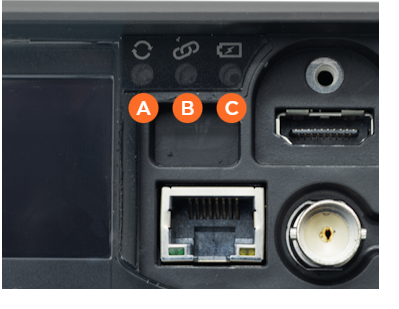

The front of the unit contains LED indicators to provide you with status information.
Activity Indicator
Status | Meaning |
|---|---|
| The unit is starting. |
| Live, Record or Forward in progress. |
| No Live, Record or Forward in progress. |
Link Indicator
Status | Meaning |
|---|---|
| The unit is starting. |
| The unit is not connected to a destination. |
Battery Indicator
Status | Meaning |
|---|---|
| The unit is powered by external source with a fully charged battery. |
| The unit is powered by external source and charging internal battery. |
| The unit is powered by external source without battery charge. |
| The unit is operating on battery only. |
Note
The unit charges only when turned off. Ensure that you turned it off before charging the battery.
