Starting a Record

Note

Ensure that a SD card is inserted before starting a record. This SD card must not be in read-only (or locked) mode.

You may start a record via the unit panel or the web interface.

Unit Panel

To start a record:

  1. From the Home menu, tap

    Record icon
    . The video preview appears on screen and the selected record profile is displayed.
    When tapping
    Left arrow icon
    or
    Right arrow icon
    , the Record menu displays additional information.

    Selected Record Profile
    Auto-record (OFF/ON) Toggle Switch
    Selected Destination Profile

    • To select another Record profile:

      1. Tap the
        Record icon
        field.
      2. Tap another Record profile.
    • To modify the Auto-forward mode:

      1. Tap the toggle button.
    • To select another Destination profile:
      1. Tap the
        Destination icon
        field.
      2. Tap another Destination profile.
  2. Tap
    Record icon
    to start the Record. The video preview appears on the screen:

    A
    Audio bars indicating audio levels
    B
    Record duration
  3. Tap

    Left arrow icon
    to display more information about the record action.

    A
    Remaining recording time possible on SD card
    B
    Space used on SD
    C
    Source Standard
    D
    Record Duration

    During a Record and simultaneous Forward, another screen appears when you tap the unit panel:

    A
    Network Bitrate
    B
    Amount and percentage of data already forwarded (if option enabled)
    C
    Record Duration

To stop the Record:

  1. Tap
    Right arrow icon
    .
  2. Tap
    Record off icon
    > Stop Record.

To stop the Forward:

  1. Tap
    Right arrow icon
    .
  2. Tap
    Forward off icon
    > Stop Forward.
Web Interface

To start the Record:

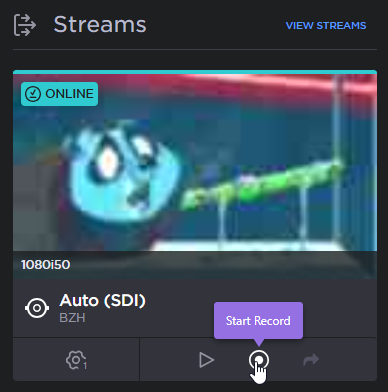

  1. On the Dashboard, in the Streams section, click the

    Settings icon
    icon to check that the unit settings are configured and selected as required:

    Note

    If you enable the Auto-forward option, the video file is automatically forwarded during the record.
  2. Click the
    Record icon
    icon to start the Record.

To stop the Record:

  1. Click the
    Record off icon
    icon > Stop.

To stop the Forward:

  1. Click the
    Forward off icon
    icon > Stop.
