Starting a Live

To start the Live:

1. From the Home menu, tap



   . The video preview appears on screen and the live profile selected is reminded. When tapping



   or



   , the Live menu provides some additional information.








   Selected Live Profile




   Selected Record Profile




   Auto-record is enabled or not (OFF/ON)




   The Selected Destination Profile

   You can modify these settings before starting the Live action.

   • To select another Live profile:

     1. Tap the



        field.
     2. Tap another Live profile.
   • To select another Record profile:
     1. Tap the



        field.
     2. Tap another Record profile.

   • To modify the Auto-Record mode:

     1. Tap the toggle button to enable or disable Auto-Record.



     Note

     Simultaneous Live and Record in H.264 1080p50/59.94/60 is not supported.

   • To select another Destination profile:

     1. Tap the



        field.
     2. Tap a different Destination profile.
2. Tap



    to start the Live. The video preview appears on screen.





   Audio Bars indicating Audio Levels




   Live Duration



3. Tap



   to display information about the Live action.








   Network Bitrate




   End-to-End Latency configured in the Live Profile or modified remotely from StreamHub interface




   Source Standard




   Live Duration


   Note

   Refer to the StreamHub User Guide to set another delay during Live operation.

   In case of a live and simultaneous Record, a different screen appears:





   Remaining recording time possible on SD card.




   Space used on SD card

To stop the Live:

1. Tap



   .
2. Tap



   > STOP LIVE.

To stop the Record:

1. Tap



   .
2. Tap



   > STOP RECORD.

To start the Live:

1. On the Dashboard, in the Streams section, click the



    icon to check that the unit settings are configured and selected as required:


   Note

   If  you enabled the Auto-record option, the video file is automatically recorded during the live.
2. Click the Save button.

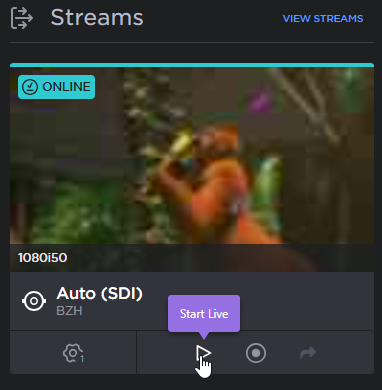

3. Click the



   icon to start the Live.




To stop the Live:

1. Click the



   icon.

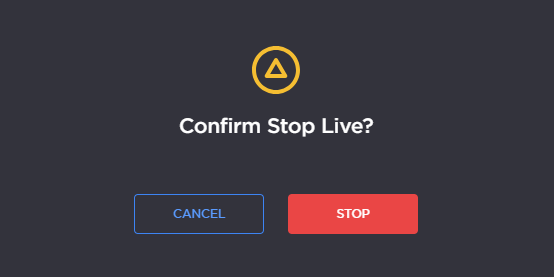

2. Click the Stop button to confirm stopping the video transmission.
