Selecting the Audio Source

You can select amongst two options:

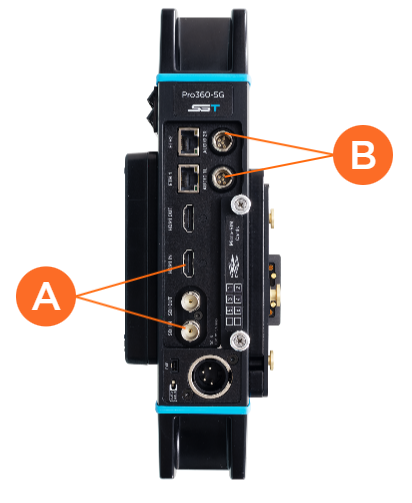

• From Video – When using the SDI or HDMI inputs



  , the audio is embedded in the video source.
• Analog (Balanced) – The analog audio inputs



  are used to connect to an analog audio source.

Unit Panel

1. From the Home menu, tap



   >



   .
2. Tap



   . The current source is displayed.

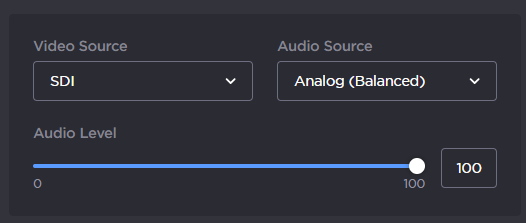

3. Tap the Audio source field to select another source.
   When Audio source is set to Analog, the Audio Level field appears.

4. Tap



   or



   to adjust the analog input level.

Note

• 0% is for audio muted.
• 100% is for the max applicable gain.
