Installing the Unit

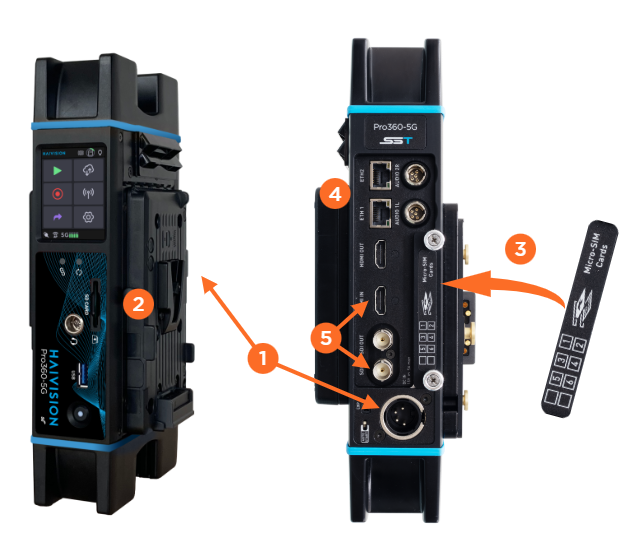

Follow the steps outlined below to install the unit. The labels in the subsequent image indicate the step numbers.

1. Install the external battery onto the unit side or connect the AC/DC adapter and the power cable.
2. Insert a SD card (if not already installed). It is recommended to use FAT32 or exFAT formats and class 10 SD card.
3. Remove the SIM card cover and insert a SIM card into a slot according to indications written on the cover.
4. For Ethernet transmission, connect the Ethernet cable to ETH1.
5. Connect the video input cables (SDI or HDMI).
