Indicator Definition

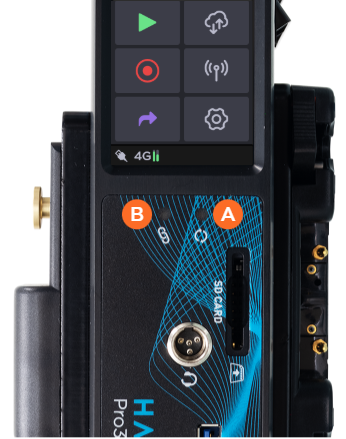

The front of the unit contains LED indicators to provide you with status information.


A

Activity icon
 Activity Indicator

StatusMeaning

Green
Fixed Green

The unit is starting.
Flashing green
 Flashing Green		Live, Record or Forward in progress.
Gray
Off		No Live, Record or Forward in progress.

B

Link icon
 Link Indicator

StatusMeaning
Green
Fixed Green		The unit is starting.
The unit is connected to a destination.
Gray
Off		The unit is not connected to a destination.
