Adding a Destination Profile

To add a destination Profile from the Unit Panel or from the Web Interface, see the tabs below.

Unit Panel

From the Home menu, tap
>
>
.
Tap
to configure the new destination profile settings (see Destination Profile Settings below for details on each destination type).
Tap
to save the new destination profile settings.

Web Interface

Click on Streaming > Destination.

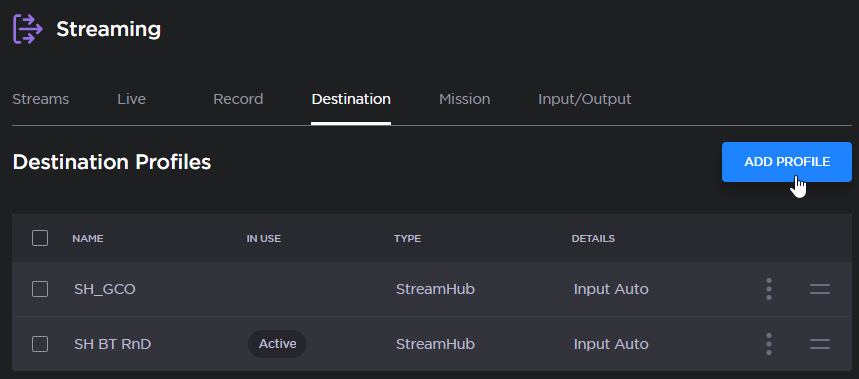

Click the Add Profile button.

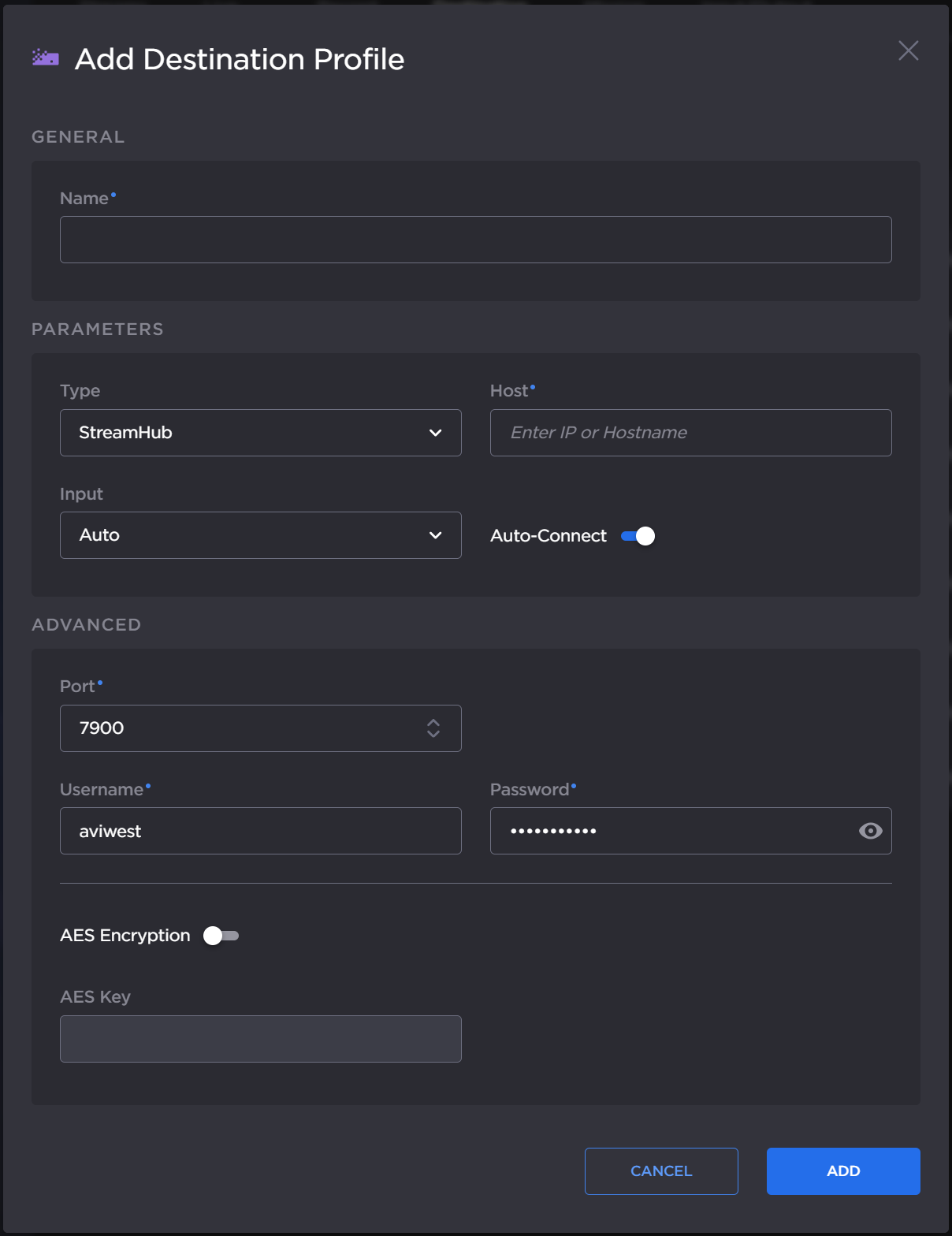

The Add Destination Profile appears:
Enter a Name for the Profile.
Select the type of Destination Profile (StreamHub, Manager, Hub360, or SRT Receiver) in the Type dropdown.
Configure the settings as shown in the table below.
Click the Add button.

To select the newly created Destination Profile, see Selecting a Destination Profile.

Destination Profile Settings

Note

These settings may have been changed by the system administrator.
Enable the Auto-connect option to automatically connect to a receiver when the unit is powered on.

Hub360	Manager	SRT Receiver	StreamHub
Please refer to Hub360 user's guide to connect a transmitter to a Hub360. Auto-connect toggle (Enable/Disable)	IP address or Hostname Auto-connect toggle (Enable/Disable) This connection cannot be established through a BGAN terminal. Port. Default: 9000 Username. Default: username Password (if required). Default: password	SRT mode (Caller or Listener) Host SRT port Ethernet port Latency SRT Encryption (and passphrase if enabled) Stream ID (Caller mode only)	IP address or Hostname Input assignment on the StreamHub (Automatic Assignment possible) Auto-connect toggle (Enable/Disable) This connection cannot be established through a BGAN terminal. Port. Default: 7900 Username. Default: aviwest Password. Default: safestreams AES key if required
