Transmitters

Selecting a Predefined APN

If the SIM card operator is registered in the unit's database, the unit automatically assigns a name and an APN. If the APN assigned is not relevant, you can select another one within a predefined list, or configure a new one. See the sections below.

Unit Panel

  1. From the Home menu, use the wheel to select Network icon > MOD > APN icon > List icon .

  2. Use the wheel to browse APNs and to select one.

  3. Enter the password and select Save icon to save.

Web Interface

  1. From the dashboard, in the Networks section, click  Settings icon on an active modem.

  2. Click the SIM Settings button.

  3. Click Pre-Defined APN and select an APN in the drop-down list.

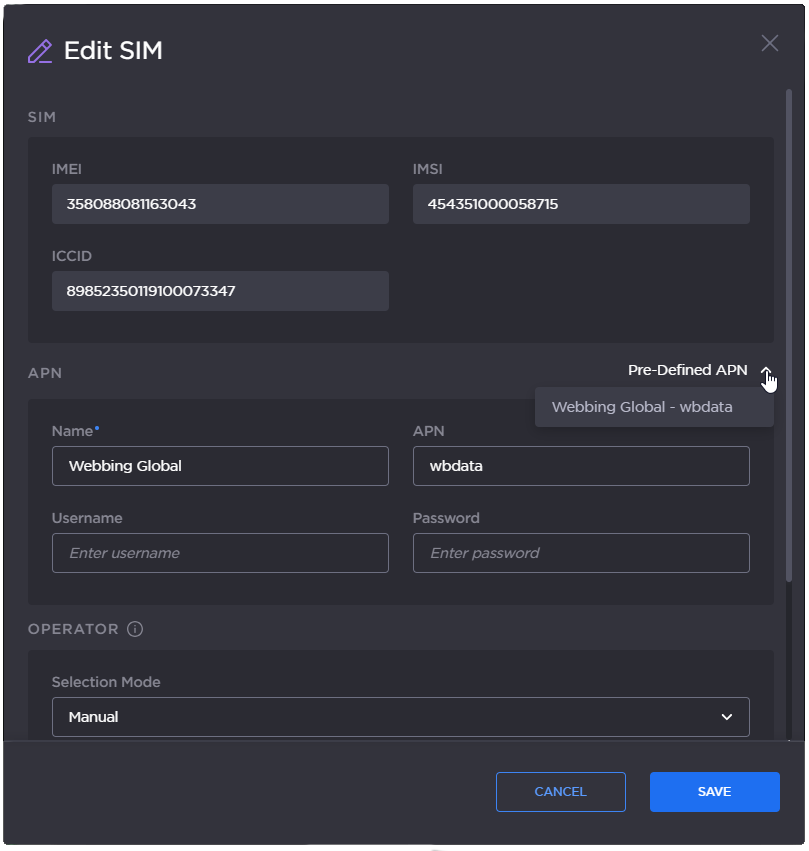

    Pre-defined APN
    Pre-defined APN
  4. Click the Save button.
