Selecting a Destination Profile

To select a destination Profile from the Unit Panel or from the Web Interface, see the sections below.

Unit Panel

  1. From the Home menu, turn the wheel to select Settings icon > AR_profiles_destination.png .
    A green dot ( Green icon ) indicates the currently selected profile.

  2. Turn the wheel to select another destination profile.

  3. Press the wheel to confirm your choice.

  4. Press the wheel again to confirm the modification of the destination profile.

Web Interface

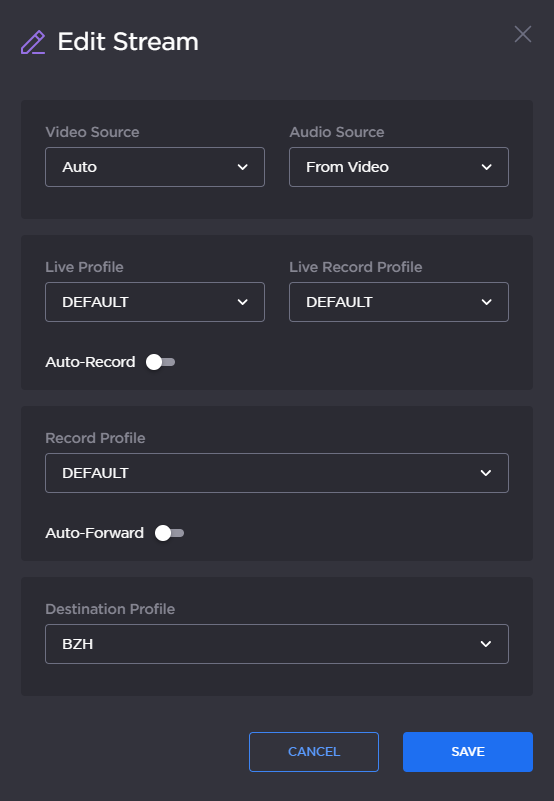

  1. From the dashboard in the Streams section, click the Settings icon icon. The encoder's current settings appear:

    Edit Stream dialog
    Edit Stream dialog

  2. Select a pre-defined profile in the Destination Profile dropdown.

Tip

If none appear, see (6.0-Air-Pro3-Rack3) Adding a Destination Profile to add a profile.

  1. Click the Save button.
