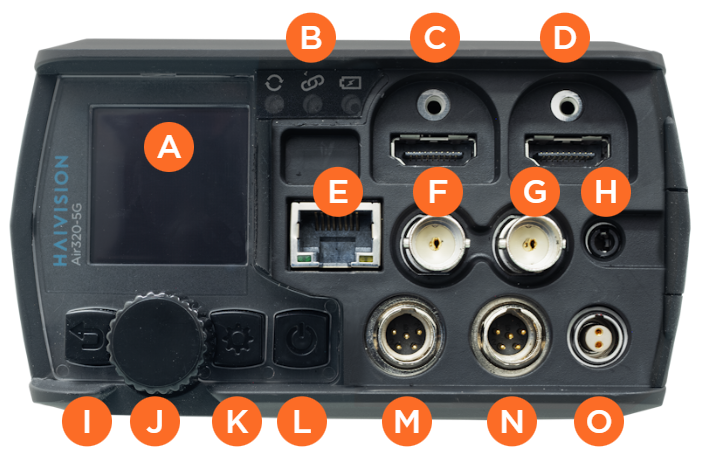

Front View
| Screen |
| 3G-SDI output |
| Settings button |
| Indicators: Activity, Link, Battery |
| 3G-SDI input |
| Power button |
| HDMI 1.4 output |
| Intercom mini-jack (headphone, micro) |
| Analog audio input/output (left) |
| HDMI 1.4 input |
| Back button |
| Analog audio input/output (right) |
| Ethernet |
| Selection wheel |
| DC input connector |
