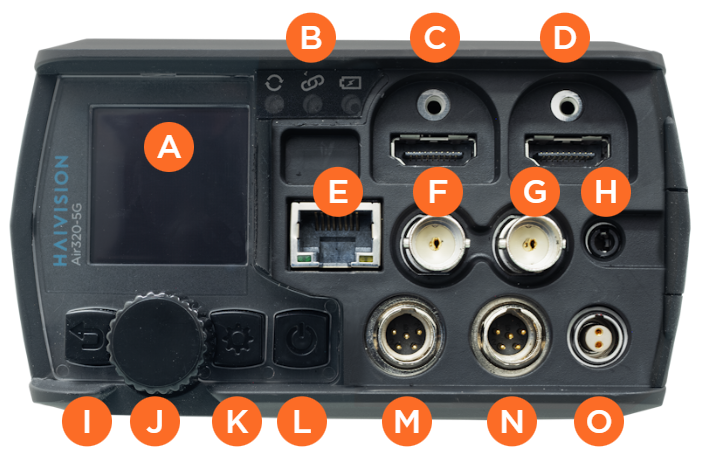

Screen |
|
3G-SDI output |
|
Settings button |
|
|
Indicators: Activity, Link, Battery |
|
3G-SDI input |
|
Power button |
|
|
HDMI 1.4 output |
|
Intercom mini-jack (headphone, micro) |
|
Analog audio input/output (left) |
|
|
HDMI 1.4 input |
|
Back button |
|
Analog audio input/output (right) |
|
|
Ethernet |
|
Selection wheel |
|
DC input connector |
