Starting a Record

Note

Make sure that a SD card is inserted before starting a record. This SD card must not be in read only (or locked) mode.

You may start a record via the unit panel, the web interface, or the camera's REC button.

Unit Panel

To start a record:

1. From the Home menu, click on



   . The video preview appears on screen and the selected record profile is displayed.
   When clicking on



   or



   , the Record menu displays additional information.

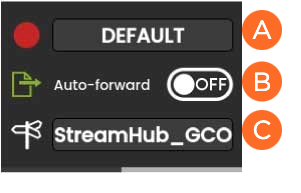

   Selected Record Profile




   Auto-record (OFF/ON) Toggle Switch




   Selected Destination Profile



   • To select another Record profile:

     1. Click on the field.
     2. Click on another Record profile.

   • To modify the Auto-forward mode:

     1. Click on the



        or



        button option.
   • To select another Destination profile:
     1. Click on the



        field.
     2. Click on another Destination profile.
2. Click on



   to start the Record. The video preview appears on the screen:





   Audio bars indicating audio levels




   Record duration

3. Click on



   to display more information about the record action.

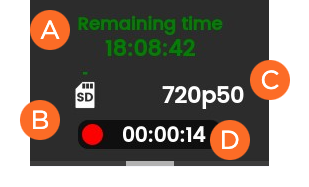

   Remaining recording time possible on SD card




   Space used on SD




   Source Standard




   Record Duration

   In case of a Record and simultaneous Forward, another screen appears when you click on the unit panel:





   Network Bitrate




   Record Duration




   Amount and percentage of data already forwarded (if option enabled)

To stop the Record:

1. Click on



   .
2. Click on



   .
3. Click on



   to confirm.

To stop the Forward:

1. Click on



   .
2. Click on



   .
3. Click on



   to confirm.

Web Interface

To start the Record:

1. Click



   to check that the unit settings are configured and selected as required:
   • Record profile
   • Auto-forward option (OFF / ON)

   • Destination profile



     Note

     If you enable the Auto-forward option, the video file is automatically forwarded during the record.
2. Click



   to start the Record.

To stop the Record:

1. Click



   . A



   popup appears.
2. Click



   or the



   icon to stop the video recording.

To stop the Forward:

1. Click



   .
2. When prompted, click the



   icon to stop the video transmission.
