Selecting the Video Source

You can select amongst:

  • Auto
  • SDI input
  • HDMI input - SD (PAL/NTSC) standard is not supported
  • Pattern (Internal Pattern Generator)

Note

  • When selecting the Pattern generator as the source, you can select a specific pattern to be generated. The pattern options are: color circles, color bars or a black pattern.
  • You can also select one of the following standards: NTSC, PAL, 720p50, 720p59.84, 720p60, 1080p25, 1080p29.97, 1080i59.94, 1080i60, 1080p50, 1080p59.94 and 1080p60.
  • When the Auto mode is selected (default mode), the following rules are applied:
SDI Input PresenceHDMI Input PresenceSelected Input
YesNoSDI
NoYesHDMI
YesYesSDI

Unit Panel

  1. From the Home menu, tap
    >
    > Video Source
    .
  2. Select the expected source.

    Note

    When selecting Pattern, the Pattern Shape and the Pattern Standard fields appear.

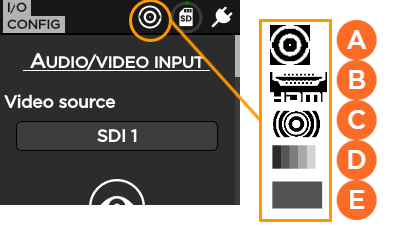

    On the upper part of the screen, an icon indicates the selected source:

    SDI
    HDMI
    Color circles pattern
    Color bars pattern
    Black pattern

    You can preview the selected video source.

  3. Tap

    to preview the video.

Web Interface

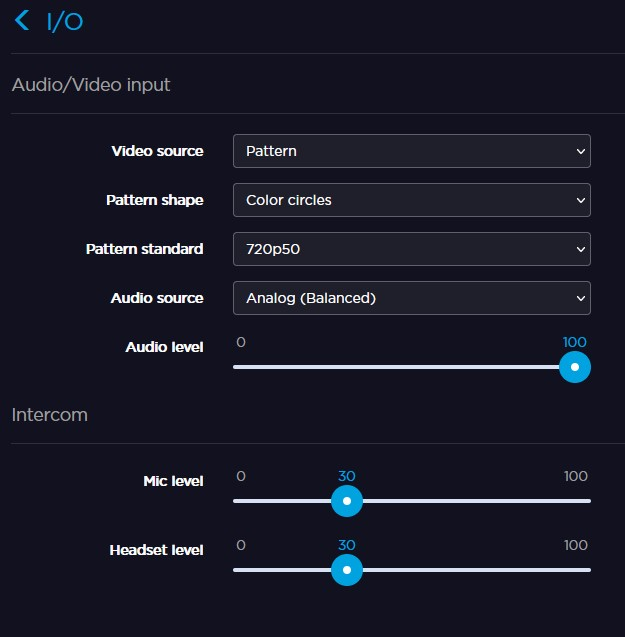

  1. From the Web Interface, click Settings > I/O.
  2. From the Video Source dropdown, select the source.

    Note

    • If you select Pattern, define the shape and the resolution to be used.
    • If you select SDI, HDMI, or Auto, the video resolution is automatically detected.
