Selecting the Audio Source

You can select amongst two options:

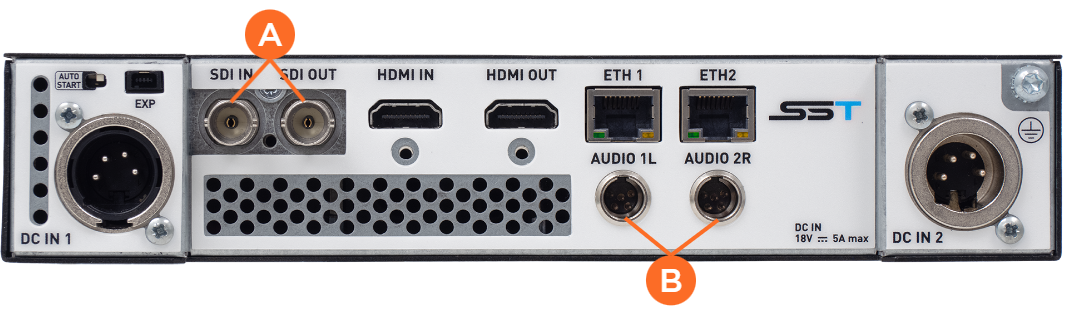

• From Video – When using the SDI or HDMI inputs



  , the audio is embedded in the video source.
• Analog (Balanced) – The analog audio inputs



  are used to connect to an analog audio source.

Unit Panel

1. From the Home menu, tap



   >



   .
2. Tap



   . The current source is displayed.
3. Tap the Audio source field to select another source.
4. Select the expected source.

5. Tap



   or



   to adjust the analog input level.

Note

• 0% is for audio muted.
• 100% is for the max applicable gain.

Web Interface

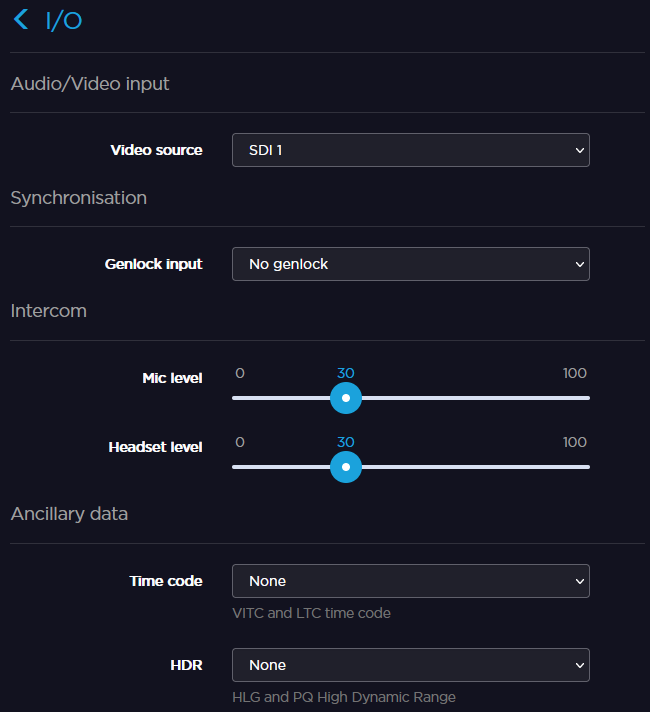

1. From the Web Interface, click Settings > I/O.
2. From the scrolling list, select the audio source amongst 2 options:
   • From Video
   • Analog (Balanced)

3. When the audio source is analog, move the Audio level cursor to adjust it.



   Note

   • 0% is for audio muted.
   • 100% is the max applicable gain.
