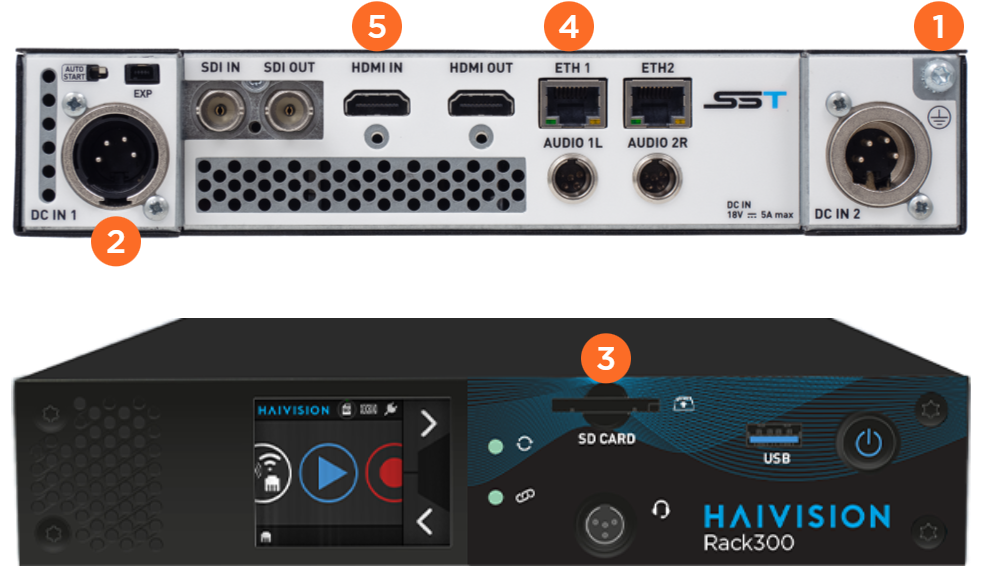

Installing the Unit

Connect the Protective ground terminal.

Caution

The Protective ground terminal must be connected to the RACK ground pin. This pin must be connected to the safety ground.

Connect the AC/DC adapter and the power cable.

Insert the SD card (if not already installed).

Note

It is recommended to use FAT 32 or exFAT formats and class 10 SD card.

For Ethernet transmission, connect the Ethernet cable to Ethernet (ETH) 1.

Note

DHCP is the default operating mode for Ethernet 1.
