Configuring a Video Return Live Profile

To configure a video return Live Profile from the Unit Panel, or from the Web Interface, see the sections below.

Unit Panel

1. From the Home menu, tap



   >



   >



   .
2. Tap the Profile Name field and enter the new profile name.
3. Tap



   to confirm the new profile name.
4. Tap the Application field and choose Video Return.
5. Tap the End-to-End Latency field to adjust the latency.
6. Tap the Bitrate field to enter a new bitrate.
7. In the Audio settings, tap the Channel Layout field and choose between:
   • 1x Mono
   • 1x Stereo
8. Tap



   and select ADVANCED +.
9. Tap



   to enable Optimization for LiveGuest.
10. Tap



    to enable Manual Resolution.
11. Tap the Resolution field to display the resolution list.
12. Select the resolution you want to apply.
13. Tap



    to save the new Video Return Live Profile settings.

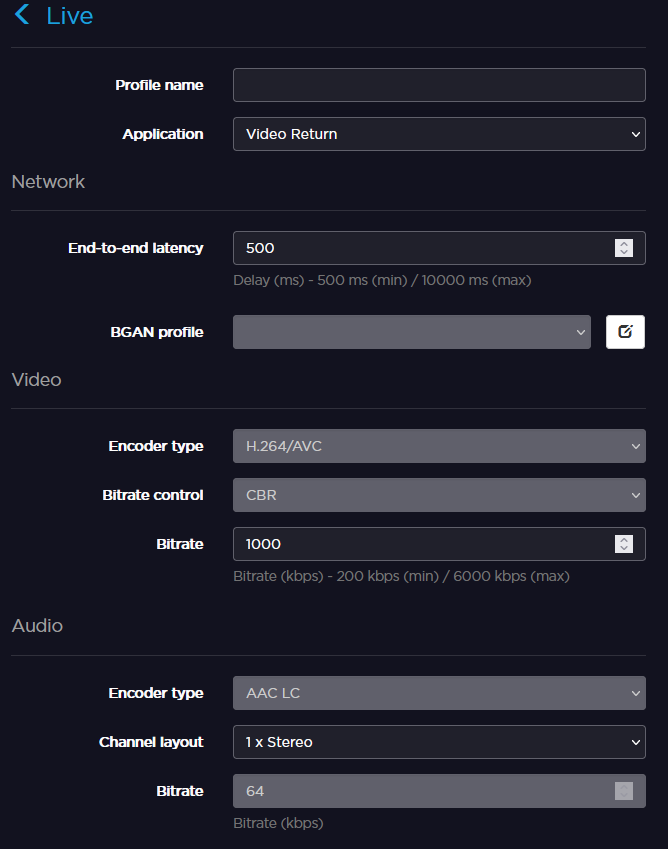

Web Interface

1. Click on Settings > Live.
2. Click on



   .
3. Enter a profile name in the Profile Name field.
4. Set the Application to Video Return.
5. In the Network settings, enter an End-to-End Latency.
6. In the Video settings, set a bitrate.
7. In the Audio settings, select a Channel Layout between:
   • 1x Mono
   • 1x Stereo

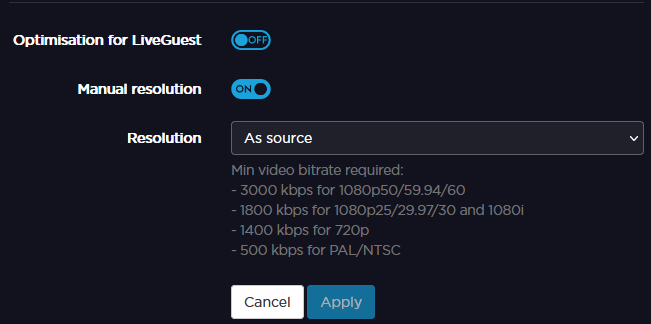

8. Click on Advanced.
9. Click on



   to enable Optimization for LiveGuest.
10. Click on



    to enable Manual Resolution.

11. Click on the Resolution field to select the resolution to apply.



12. Click Apply.
