Adding a Record Profile

To add a Record Profile from the Unit Panel, or from the Web Interface, see the sections below.

Unit Panel

1. From the Home menu, click on



   .
2. Tap on



   and tap



   .
3. Tap



   .
4. Tap the Profile Name field.
5. Use the keyboard to enter the new profile name.
6. Tap



    to confirm.
7. Tap the File Format field and select Transport Stream or MP4 format.
8. Tap



   to configure the Record Profile settings:
   • Video Settings (Encoder Type, Bitrate). When recording, the video is encoded in CBR mode with a resolution as source.
   • Audio Settings (Encoder Type, Channel Layout, Bitrate)
9. Tap



    to save the new Record Profile settings.

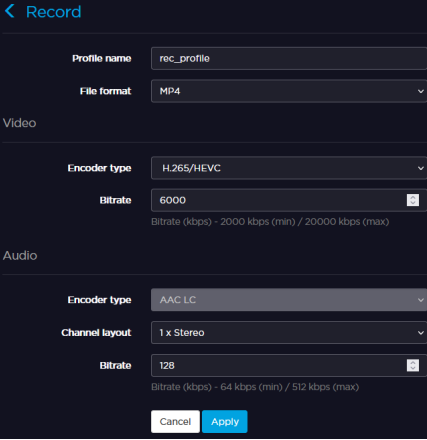

Web Interface

1. Click Settings > Record.
2. Click



   .
3. Enter a profile name in the Profile Name field.
4. Choose between Transport Stream and MP4 for the File Format.

5. Choose the video Encoder Type.

6. Set the video Bitrate.
7. Select the audio Channel Layout.
8. Set the total audio Bitrate.
9. Click Apply.
