Transmitters

Wi-Fi Connection (Access Point Mode)

  1. From the Unit Panel, configure the unit as a Wi-Fi Access Point (see (5.4-Air-Pro3-Rack3) Configuring a Wi-Fi Interface for details).

  2. On your Wi-Fi client device (computer, notebook, smartphone), go to the Wi-Fi settings menu, and select the Wi-Fi access point that you configured.

  3. Enter the password that you defined.

  4. In a Web Browser, enter the unit URL: http://192.168.30.10:8888 (default IP address if it has not been changed).

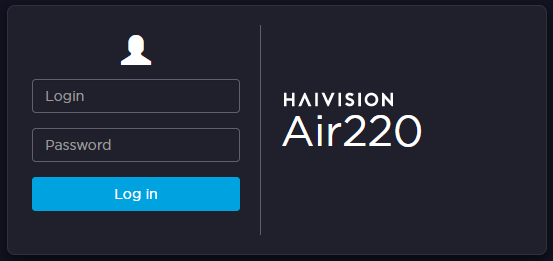

    The login screen opens:

  1. Enter the login and password.

Note

It is highly recommended to modify the password.

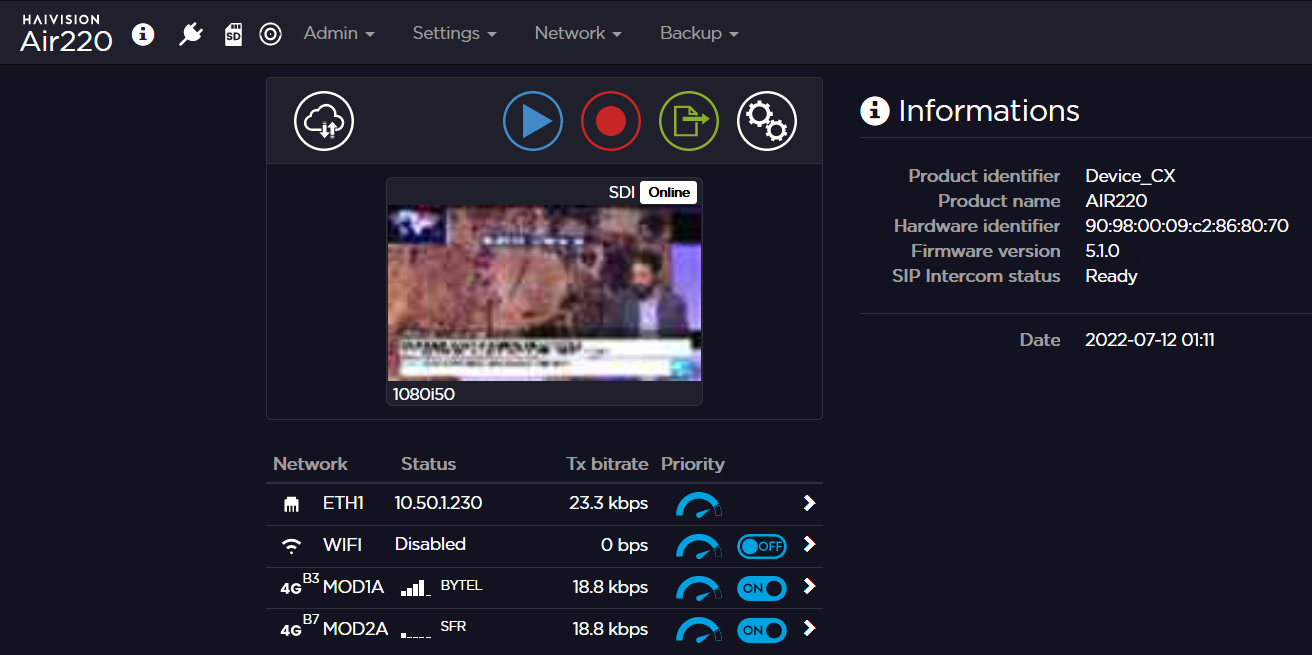

The unit's web interface opens.
