Managing Priorities of Network Links
You can choose a priority level (High or Low) for each network link used for Live or Forward operations.

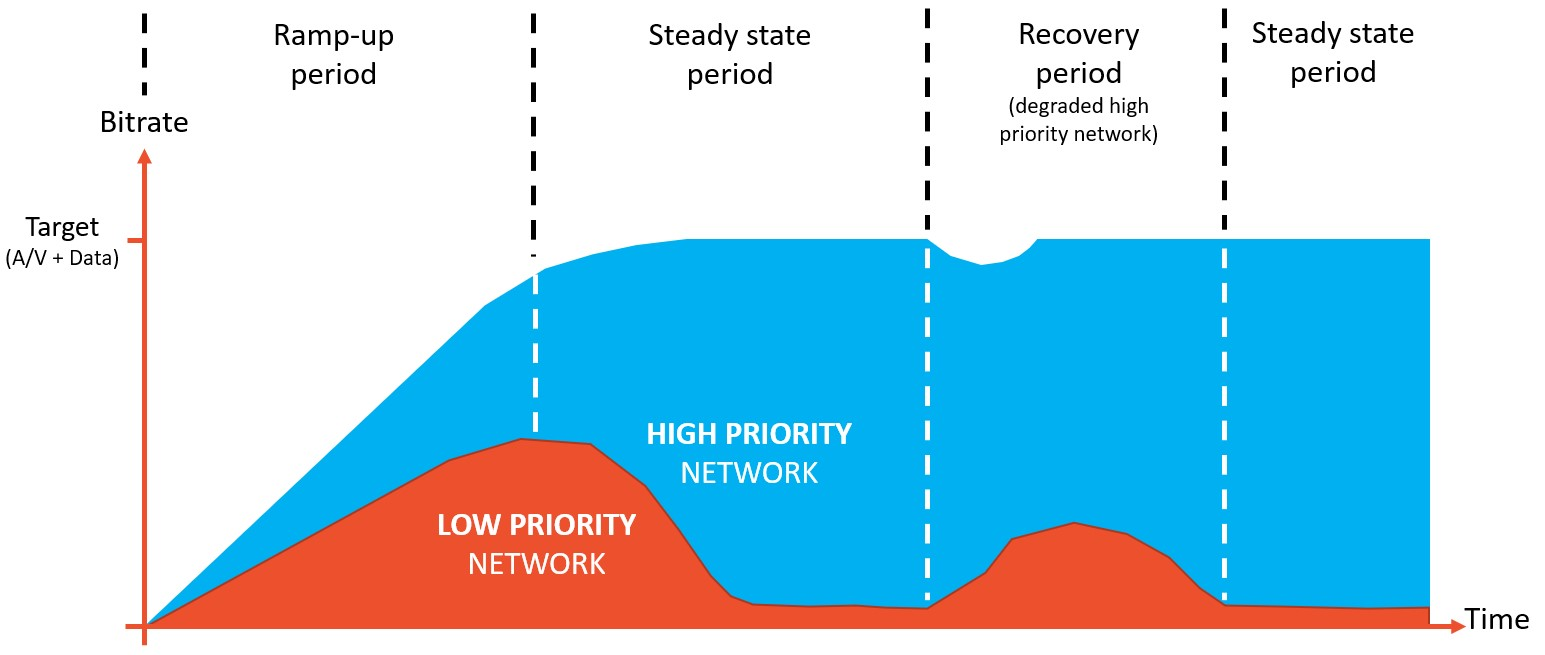

These priorities are managed as shown in the diagram below:
For Live
- Both high and low priority links are used as long as the bitrate target set in the Live profile has not been reached.
- When the bitrate target is reached, high priority links are mainly used.
For Forward
- Both high and low priority links are used as long as the bitrate target is lower than 1Mbps.
- When the bitrate target is lower than, low priority links are mainly used.
By default, each network link is set as a high priority link. This setting can be changed, either from the unit panel or from the Web Interface, before starting an operation or while the operation is in progress:
- Unit panel: Select the priority level when configuring network links (see Configuring an Ethernet Interface).

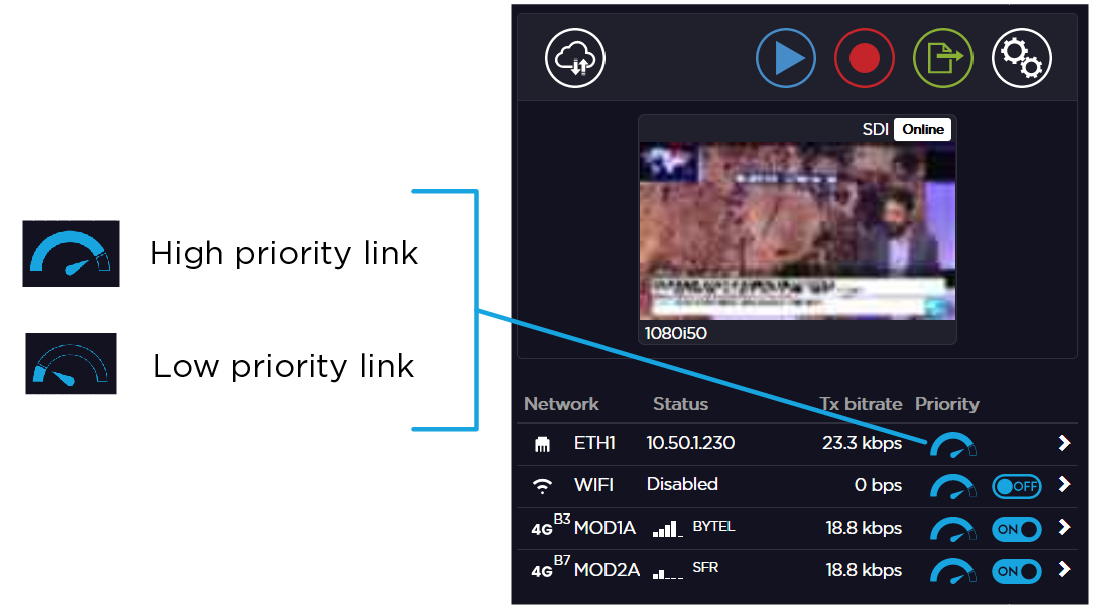

- Web interface: Click on the gauge icon to select High () or Low () priority.
