3G-SDI Input
3G-SDI Output

Connector type: BNC connector
Impedance: 75Ω
Complies with SMPTE 259M, SMPTE 292M, and SMPTE 424M level A and level B-DS (limited to one SDI stream for level B-DS)
Supported Embedded Audio at 48kHz

HDMI Input
HDMI Output

Connector type: Type A
Complies with HDMI 1.4
Fully shielded HDMI cable is mandatory

Analog Audio Input/Output

Connector type: Mini-XLR (Male, 5 pins)
Mates with:

  • Rean/Neutrik RT5FCT-B (Female, 5 pins)
  • Switchcraft Mini-XLR TA5F Series (Female, 5 pins)

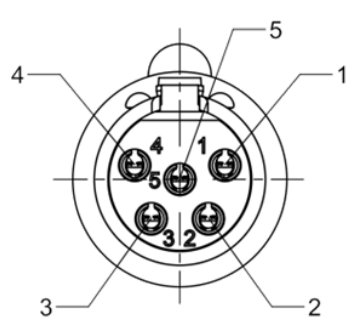

Pins (Mating plugs):

  1. Common GND
  2. Balanced Input Hot (+)
  3. Balanced Input Cold (-)
  4. Microphone Input
  5. Headphone/Line Output

Balanced channel input impedance: 59.6kΩ
Balanced channel input level (nominal): 4dBu (1.23Vp)
Balanced channel input level (0dB Full Scale): 18dBu (8.7Vp)
Balanced channel input level (max): 19.4dBu (10.2Vp)
Headphone Dynamic Range (20kHz Filter): 101dB
Headphone THD+N: -70dB max
Headphone Load Impedance: 16Ω or higher
Headphone Output Power: 55.8mW max (16Ω)
Line full scale output voltage: 0.97VRMS
Line load impedance (typical): 10kΩ
Microphone Bias: 2V
Microphone Maximum Level : 0.5VRMS

Return IFB Channels

Intercom Headset

Connector type: 4pins (TRRS) 3.5 mm Audio Jack
(Signal complies with Apple and Samsung headsets)

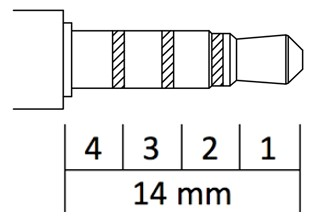

Pins (Mating plugs)

  1. Tip (Left HP)
  2. Ring1 (Right HP)
  3. Ring2 (Ground)
  4. Sleeve (Microphone)

Headphone Dynamic Range (20-kHz Filter): 100 dB
Headphone THD+N: -70 dB max
Headphone Load Impedance: 16Ω or higher
Headphone Output Power: 2 x 55mW max (16Ω)
Headphone Full Scale output voltage: 0.65VRMS
Microphone Bias : 2.5V
Microphone Maximum Level : 0.5VRMS



One Ethernet port
10/100/1000 Base-T
RJ45 connector
Green LED indicates link
Orange LED indicated speed (on: 1000BT, off: 10/100BT)


Dual-band 2.4GHz and 5GHz
802.11 b/g/n/ac


SD Card

SD slot, class10 recommended (FAT32, exFAT)


Two USB 3.0 Type A connectors


DC Input

Input type: Standard self-latching 2-pole connector with alignment key
Automatic under-voltage protection at 11.8 Volts
Automatic over-voltage protection at 24 Volts

AC/DC Adapter

Manufacturer: ENG ELECTRIC CO., LTD
Model: 6A-601DB19
Rated Input:100-240 VAC, 50-60Hz, 1.5A max
Rated Output: 19VDC, 3.42A

Internal Battery

Lithium-ion Rechargeable Battery

Manufacturer: RRC power solutions
Model: RRC 2054
Capacity: 14.4V / 3450mAh / 49.7Wh

Manufacturer: AUDIOROOT
Model: eSmart Li-48neo (FBALCO0117)
Capacity: 14.4V / 3350mAh / 48.0Wh


Please leave the battery in the unit even when not in use.
