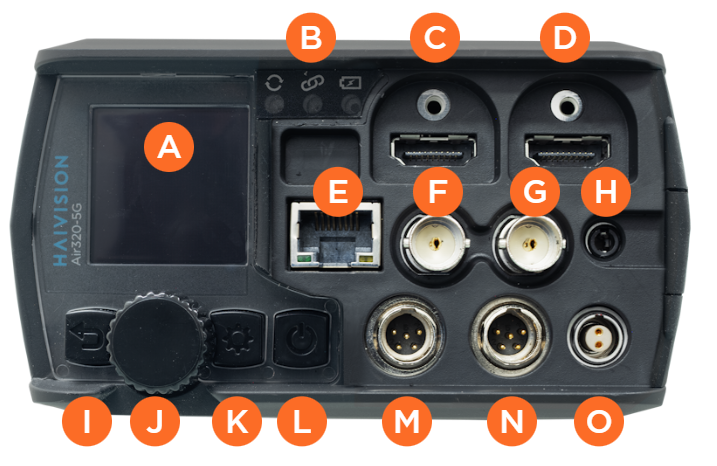

Front Panel

Screen

3G-SDI output

Settings button

Indicators: Activity, Link, Battery

3G-SDI input

Power button

HDMI 1.4 output

Intercom mini-jack (headphone, micro)

Analog audio input/output (left)

HDMI 1.4 input

Back button

Analog audio input/output (right)

Ethernet

Selection wheel

DC input connector

Using the Click Wheel

Turn left or right to navigate through onscreen menus.

Press the wheel to enter a menu or a configuration field.
