Configuring IP Routes

According to your network architecture; you may need to configure IP routes on the server. To configure an IP route:

1. Press the number corresponding to IP Settings menu.

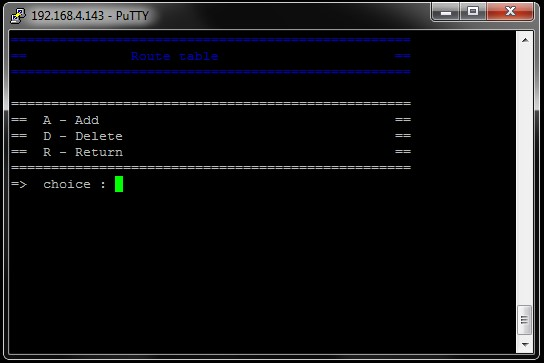

2. Press T on your keyboard to access the Route table page.
3. Press A on your keyboard to add a new route.

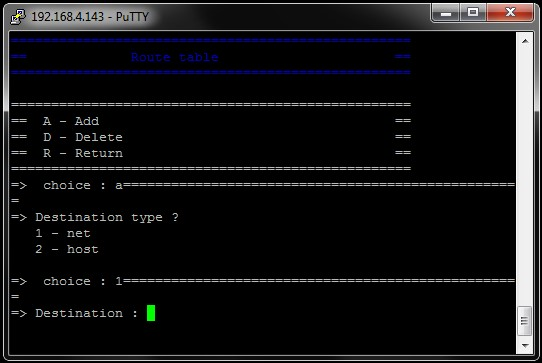

4. According to the type of destination for which you want to add a route:
   • Press 1 on your keyboard to configure a network route (net).
   • Press 2 on your keyboard to configure a host route (host).
5. Type the destination IP address.








6. If the destination is a network, type the netmask.
7. Type the gateway (that must be on the same LAN as the server).
8. Press 1 or 2 on your keyboard to select the Ethernet interface for which you want to set this route.
