Creating a virtual machine

The following steps explain how to configure a virtualized StreamHub over VMware ESXI from an ISO file.

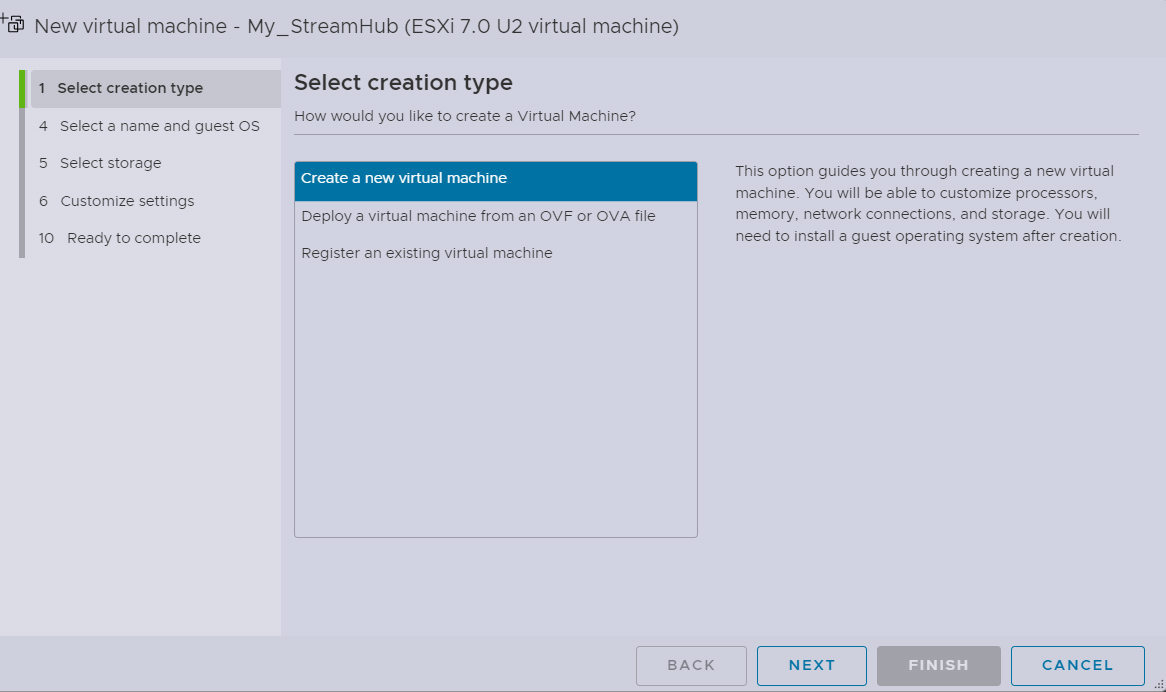

  1. From the VMware interface, click Create a new virtual machine and click Next.

    Capture d'écran 2024-10-02 152844.png

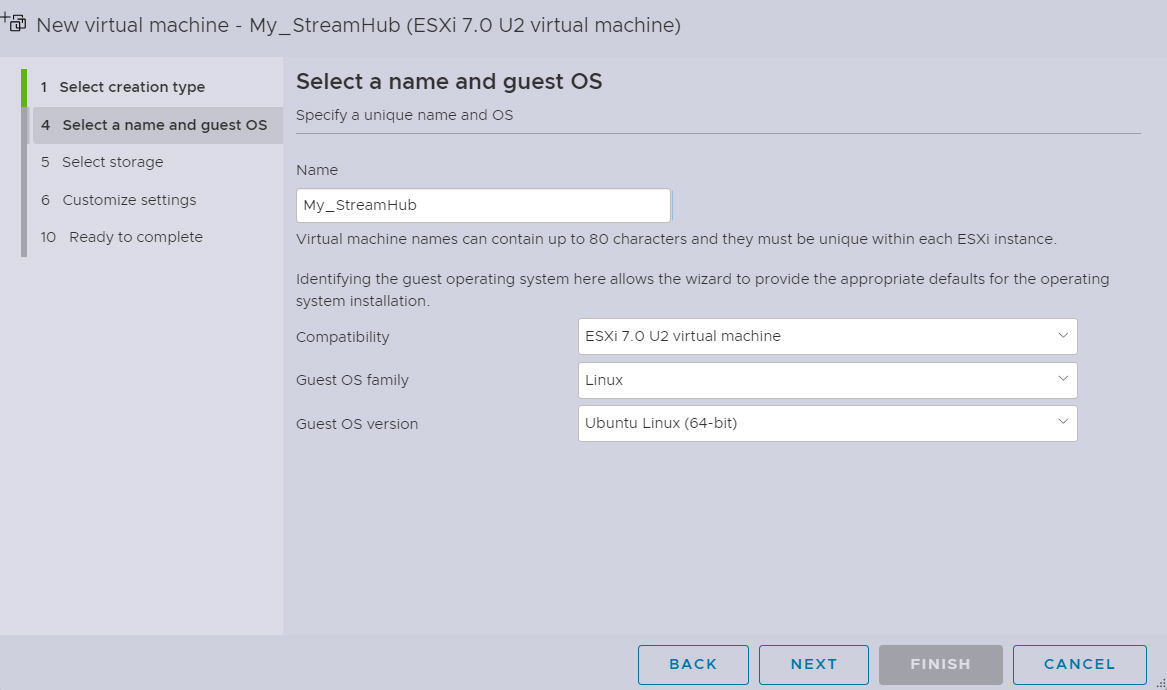

  2. In the Name field, enter a name for your virtual server. Then click Next.

    Capture d'écran 2024-10-02 152815.png

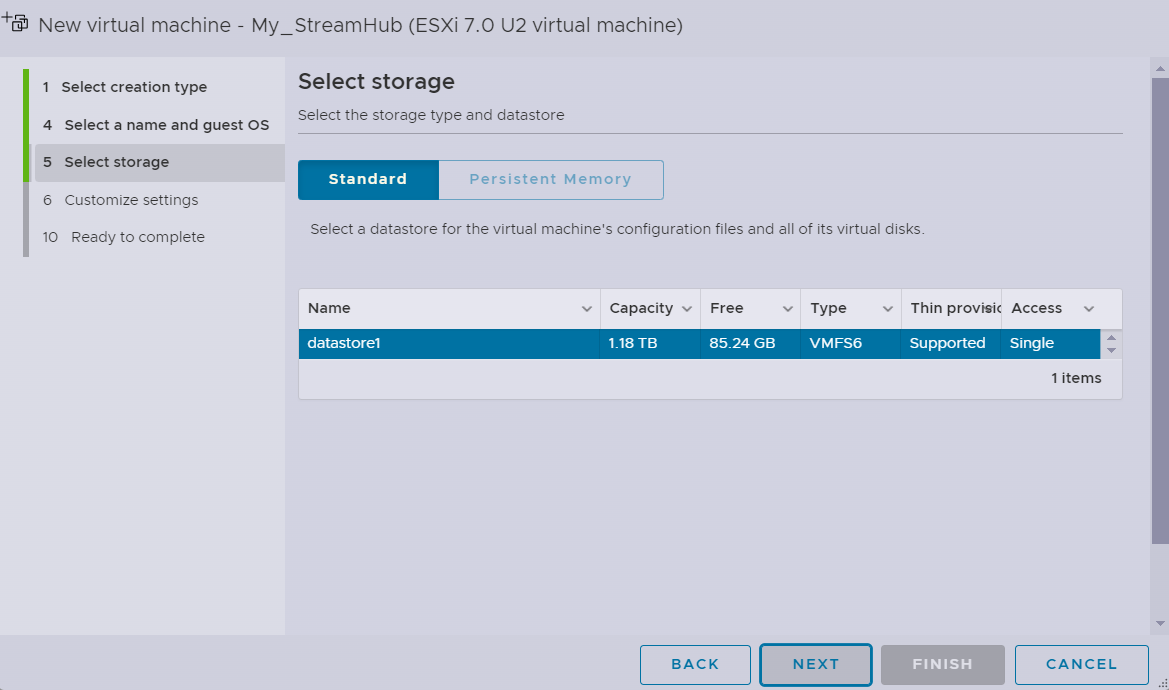

  3. Select Standard and click Next.

    Capture d'écran 2024-10-02 153024.png

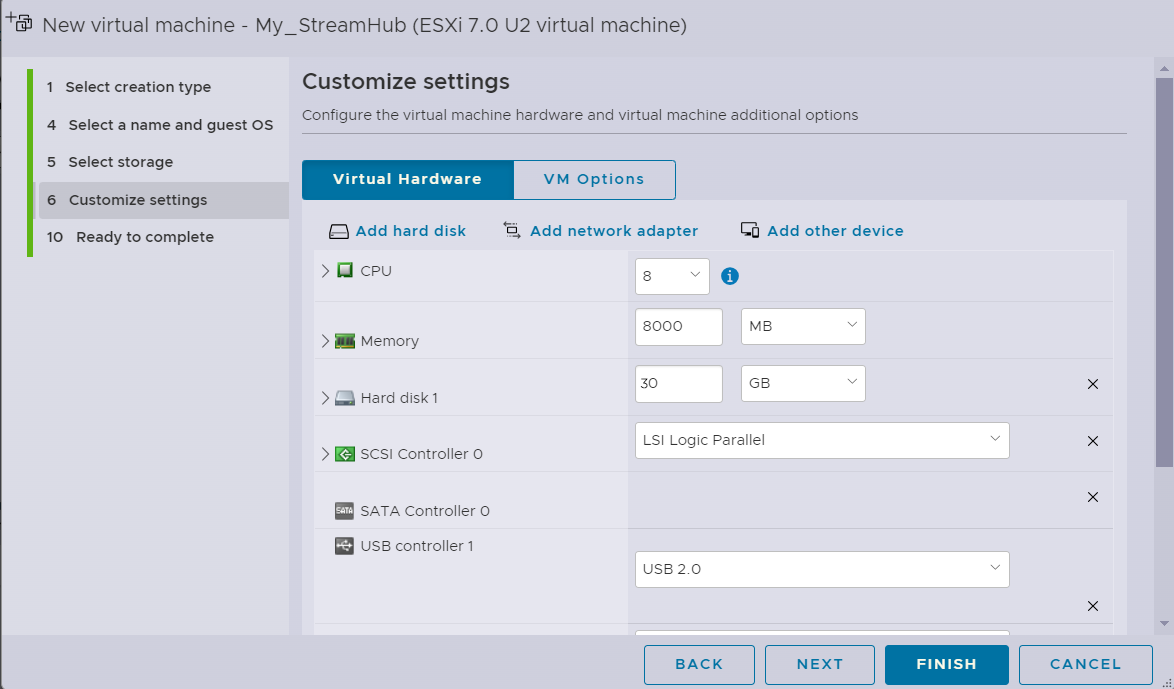

  4. Configure a 8GB CPU and a 8000MB  memory with a 30 GB Hard disk. And click Next.

    Capture d'écran 2024-10-02 153237bis.png

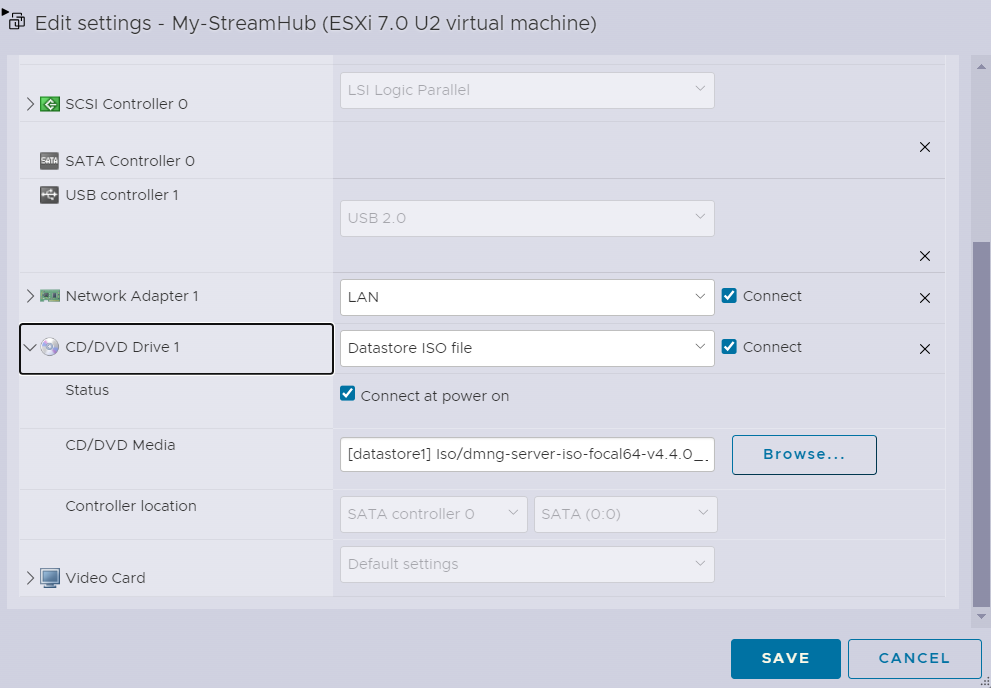

  5. Scroll down and under CD/DVD drive1  section, select Database ISO file.

  6. Tick the Connect at power on option and click Browse to get the .ISO  file that you downloaded from the Support portal.

    Capture d'écran 2024-10-02 153911.png

  7. Click NEXT.

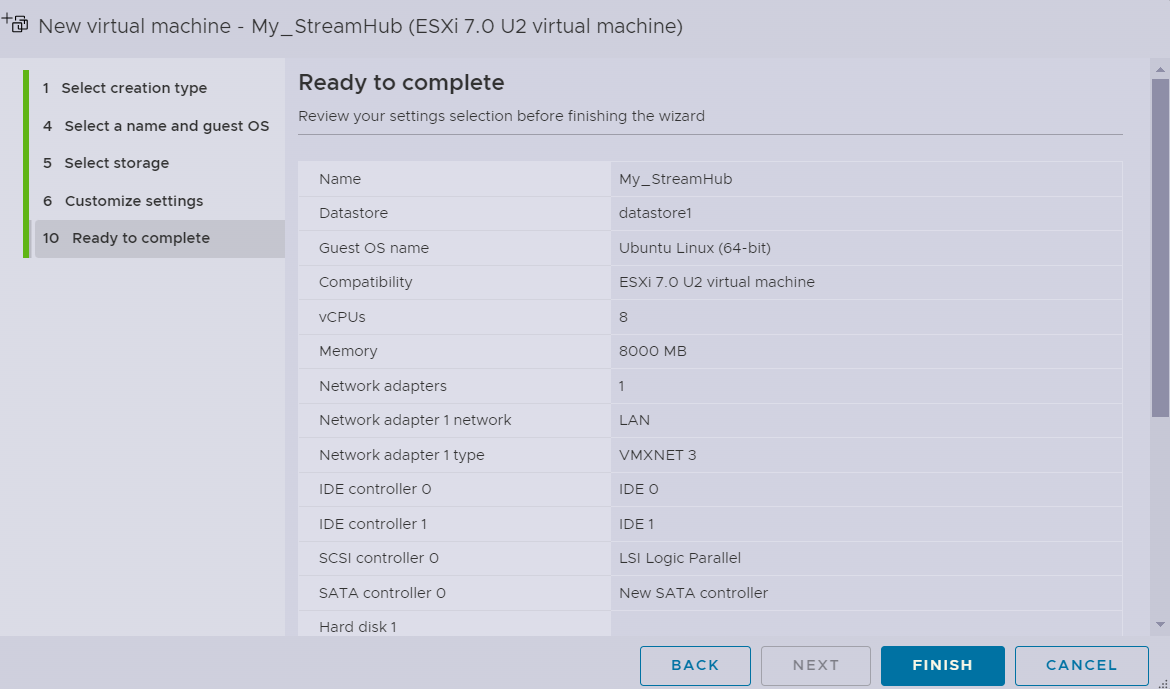

  8. Your virtual machine's settings are summarized.  Click FINISH to confirm.

    Capture d'écran 2024-10-02 153317.png

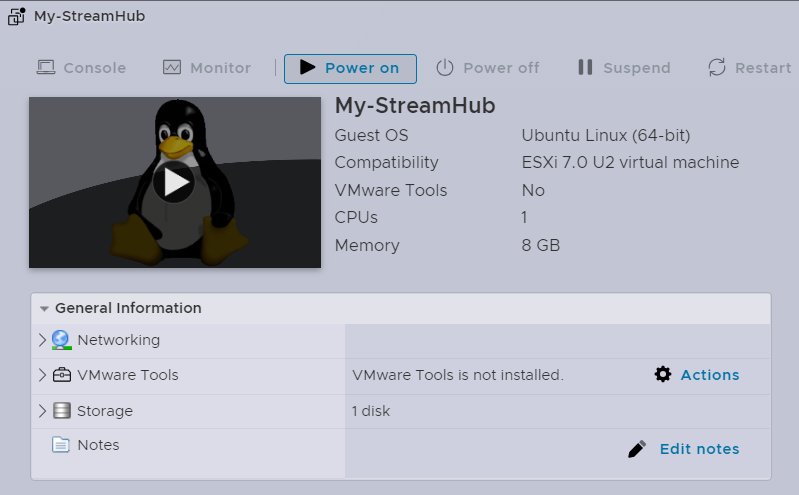

  9. Your virtual SteamHub is now ready to be used.  Click Power on.

    Capture d'écran 2024-10-02 154008.png

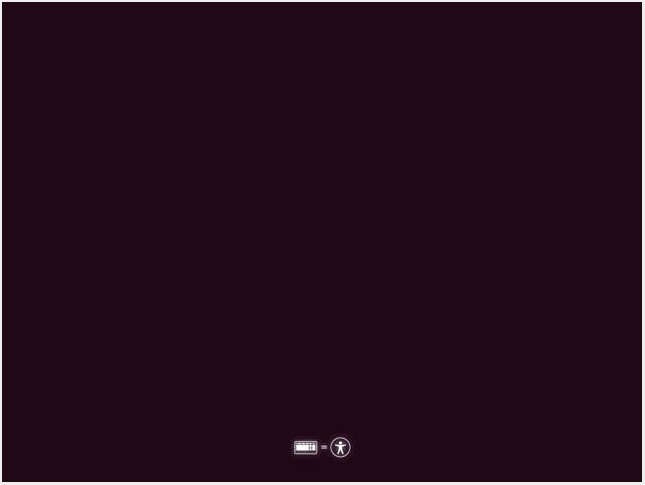

  10. The following screen is displayed:


  11. Click on the screen.

  12. Place the mouse cursor somewhere on the screen and click.

  13. Press ENTER to follow the ISO installation procedure.
