Connecting a Quad CellLink to the Transmitter

1. On the Quad CellLink, remove the SIM card cover and insert the SIM cards into slots according to indications written on the cover.



   Note

   Ensure the SIM cards are already unlocked.

2. Replace the SIM card cover.

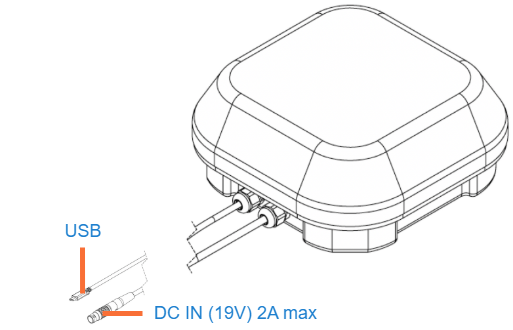

3. Connect the AC/DC adapter and the power cable.

4. Connect the USB cable to the unit.



   Note

   Choose a weather protected area for this connection in order to avoid any damage due to ambient humidity or rain.



5. Open the transmitter Web Interface.



   Note

   Please refer to transmitter or encoder User Guide for more details.

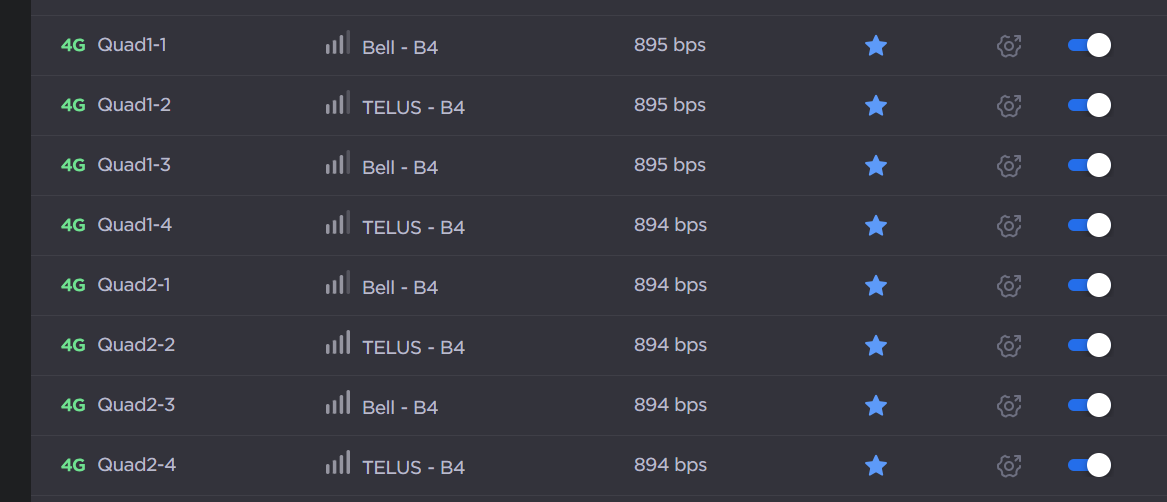

The Quad CellLink is automatically detected in the web interface:

• QUAD1-1 means modem #1 from Quad CellLink #1,
• QUAD1-2 means modem #2 from Quad CellLink #1, etc.
