Server Setup

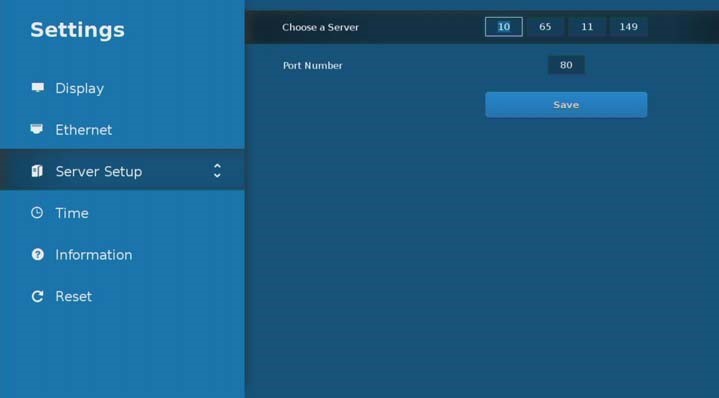

On the Server Setup page, you can view and specify the IP address and port number of the HMP server that provides guide data to Haivision Play Set-Top Box.

To specify the HMP server:

1. Using the remote control, press the Down Arrow to scroll down to Server Setup.
2. Enter the HMP IP address in the Choose a Server field and the corresponding port number in the Port Number field. For details on data entry, see On-screen Keyboard.

   • All IP text inputs accept numeric values ranging 0-255.
   • Port input accepts numeric value ranging 1-65535.



3. When finished, select Save.
