Front and Rear Panels

The following figures show the Haivision Play 1000 Set-Top Box interfaces, connectors, and LED status indicators.

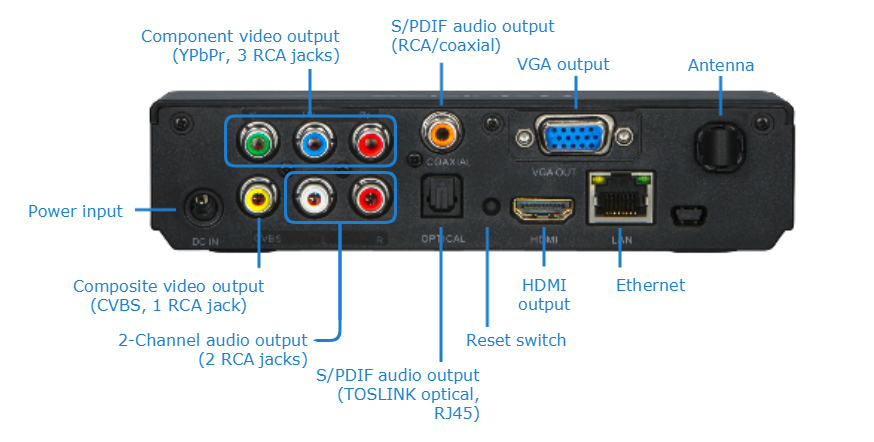

Rear View

The rear of the STB contains the power input, A/V connections, Ethernet connections, and reset switch. See the Haivision Play 1000 Set-Top Box Quick Start Guide for instructions on connecting your STB.

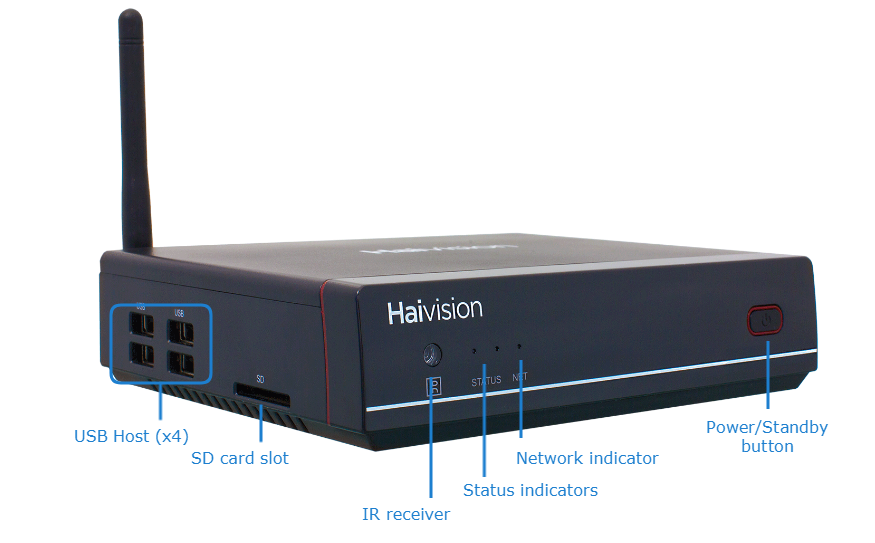

Side/Front View

The side of the STB contains 4 USB ports and an SD card slot. The front contains the power/standby button, IR receiver, and LEDs for status and network indicators.
