How to create a destination profile

A Destination Profile is a set of parameters allowing the unit to connect to a StreamHub, a Manager or a SRT Receiver.

Prerequisites

  • StreamHub is a web-based platform that recieves, decodes, records and distributes video and audio feeds.
  • Manager is a web-based platform that monitors and manage a contribution ecosystem. It is in charge of routing dynamically transmitters to appropriate StreamHub.

You can create a destination profile either from the Unit Panel or from the unit Web interface.


From the Unit Panel
  1. From the Home menu, click on
    .
  2. Turn the wheel to select
    and press it to confirm.
  3. Press the wheel again to create a new destination profile.
  4. Press the wheel to enter the Profile Name field.
  5. Turn and press the wheel to select characters and compose a name.
  6. Click on
     to confirm the new Destination Profile name.
  7. Use the wheel to select the type of destination.
  8. Use the wheel to configure the destination profile settings:

    For a StreamHub

    • StreamHub IP address or Hostname
    • Input assignment on the StreamHub (Automatic Assignment possible)
    • Auto-connect function (Enabling/Disabling). This connection cannot be established through a BGAN terminal.
    • Port used By default: 7900
    • Username. By default: aviwest
    • Password. By default: safestreams
    • AES key if required

    For Manager

    • Manager IP address or Hostname
    • Auto-connect function (Enabling / Disabling). This connection cannot be established through a BGAN terminal.
    • Port used. By default: 9000
    • Username. By default: username
    • Password (if required). By default: password

    For a SRT Receiver

    • SRT mode (Caller or Listener)
    • Host
    • SRT port
    • Ethernet port
    • Latency
    • SRT Encryption (and passphrase if enabled)
    • Stream ID (in Caller mode only)

From the Web Interface

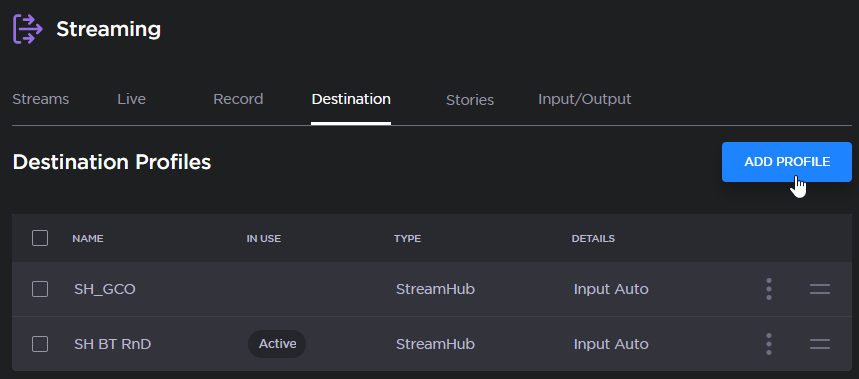

  1. Click on Settings > Destination.
  2. Click the
     button.

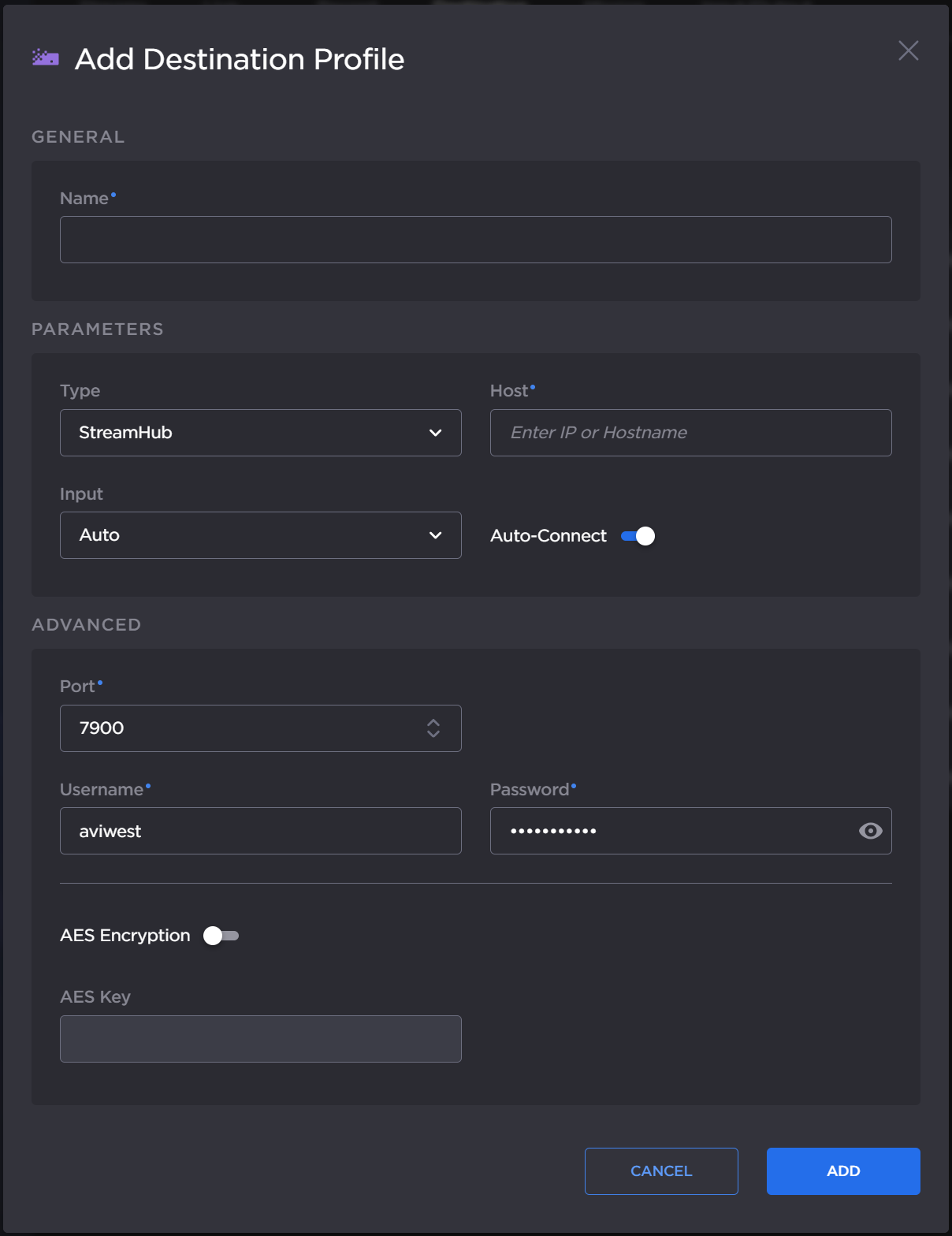

  3. Enter a Name for the Profile.
  4. Select the type of Destination Profile (StreamHub, Manager, or SRT Receiver).

    For a StreamHub

    • StreamHub IP address or Hostname
    • Input assignment on the StreamHub (Automatic Assignment possible)
    • Auto-connect function (Enabling/Disabling). This connection cannot be established through a BGAN terminal.
    • Port used By default: 7900
    • Username. By default: aviwest
    • Password. By default: safestreams
    • AES key if required

    For Manager

    • Manager IP address or Hostname
    • Auto-connect function (Enabling / Disabling). This connection cannot be established through a BGAN terminal.
    • Port used. By default: 9000
    • Username. By default: username
    • Password (if required). By default: password

    For a SRT Receiver

    • SRT mode (Caller or Listener)
    • Host
    • SRT port
    • Ethernet port
    • Latency
    • SRT Encryption (and passphrase if enabled)
    • Stream ID (in Caller mode only)
