Setting a Video Return for a Field Unit

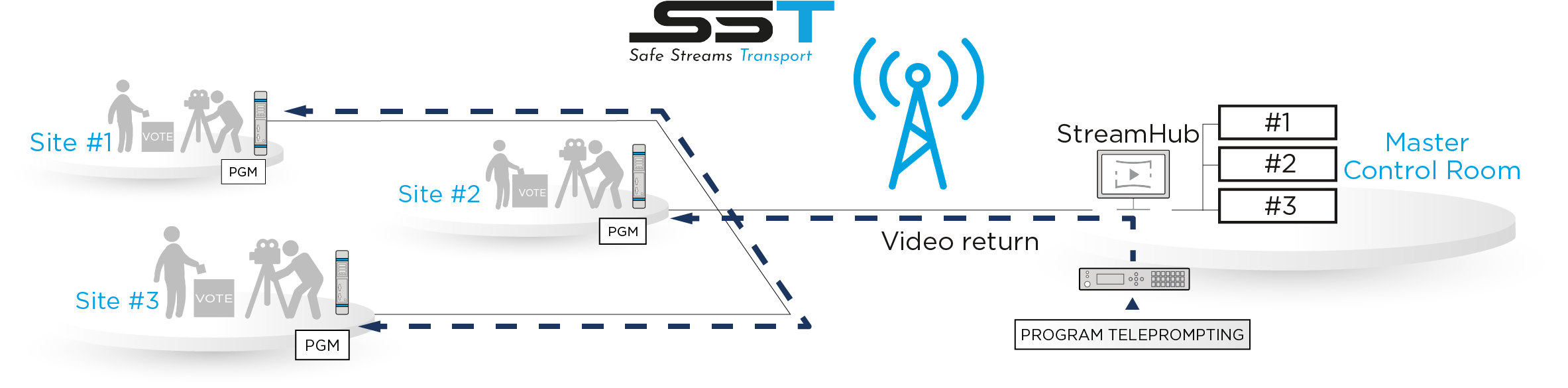

The Video Return feature allows Field Units operating on sites to receive live feeds, such as a program currently on air or a teleprompting from the Media Control Room even if a Live is running or not.

From the Manager interface, you can set a video return for a field unit that is running a live on a StreamHub.

1. Open the panel of the field unit for which you want to set a video return.
2. Make sure that the field unit is on live.
3. Click the



   icon to select a feed from the list of feeds available (Video Return compatible) on this StreamHub.
   • The



     icon turns into



     , indicating that video return is currently running.
   • On the screen connected to the HDMI port of the field unit, you can see displayed the video return feed.

When the live is ended, this video return setting is disabled.

Note

You can decide that the video return is disabled or not when the live is ended, by clicking Settings > General.
