Monitoring the Receivers

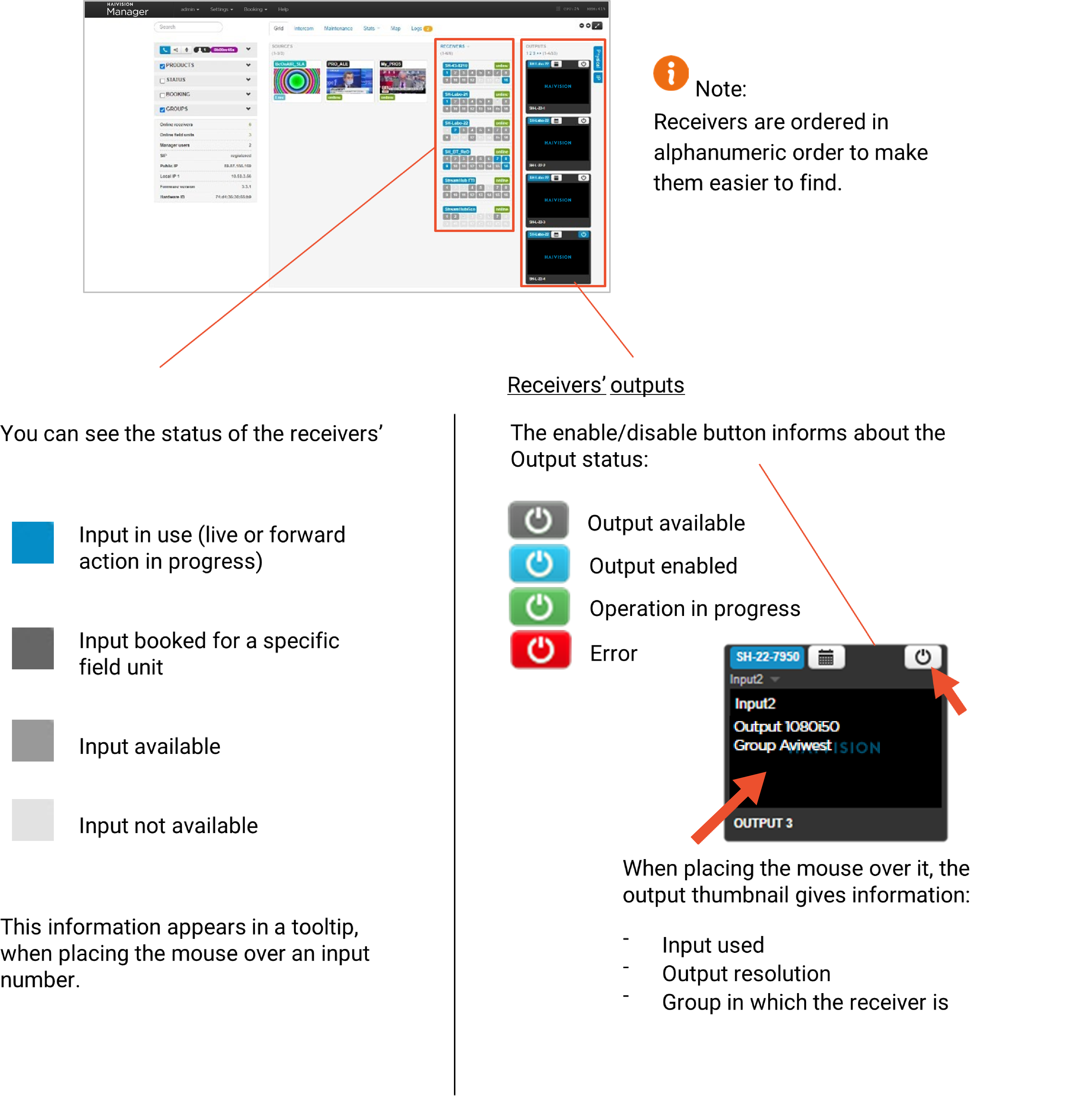

The Maintenance and Grid tabs give 2 different views from which you can monitor the receivers.


The Grid tab

The Maintenance tab



1

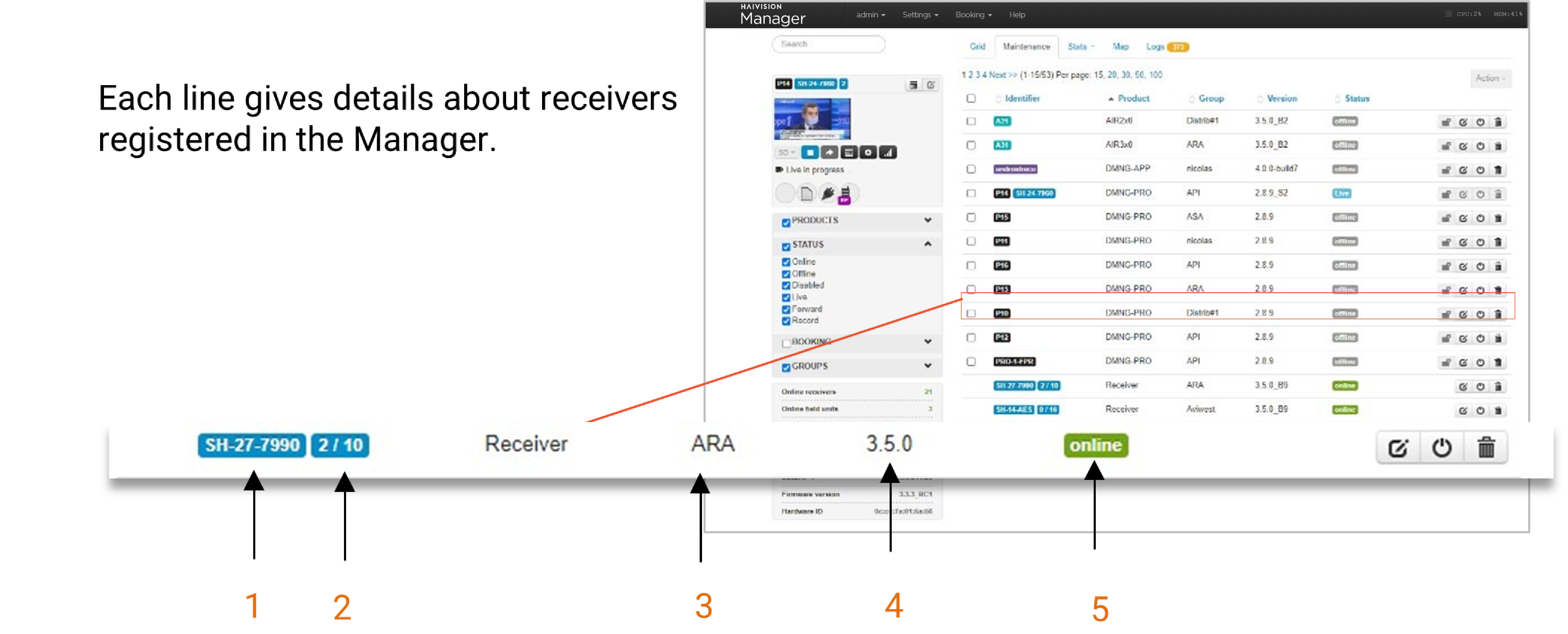

Receiver Name

2

Number of used inputs / number of inputs available

3

Main group of the receiver

4

Receiver Version

5

Receiver Status

The Receiver Panel

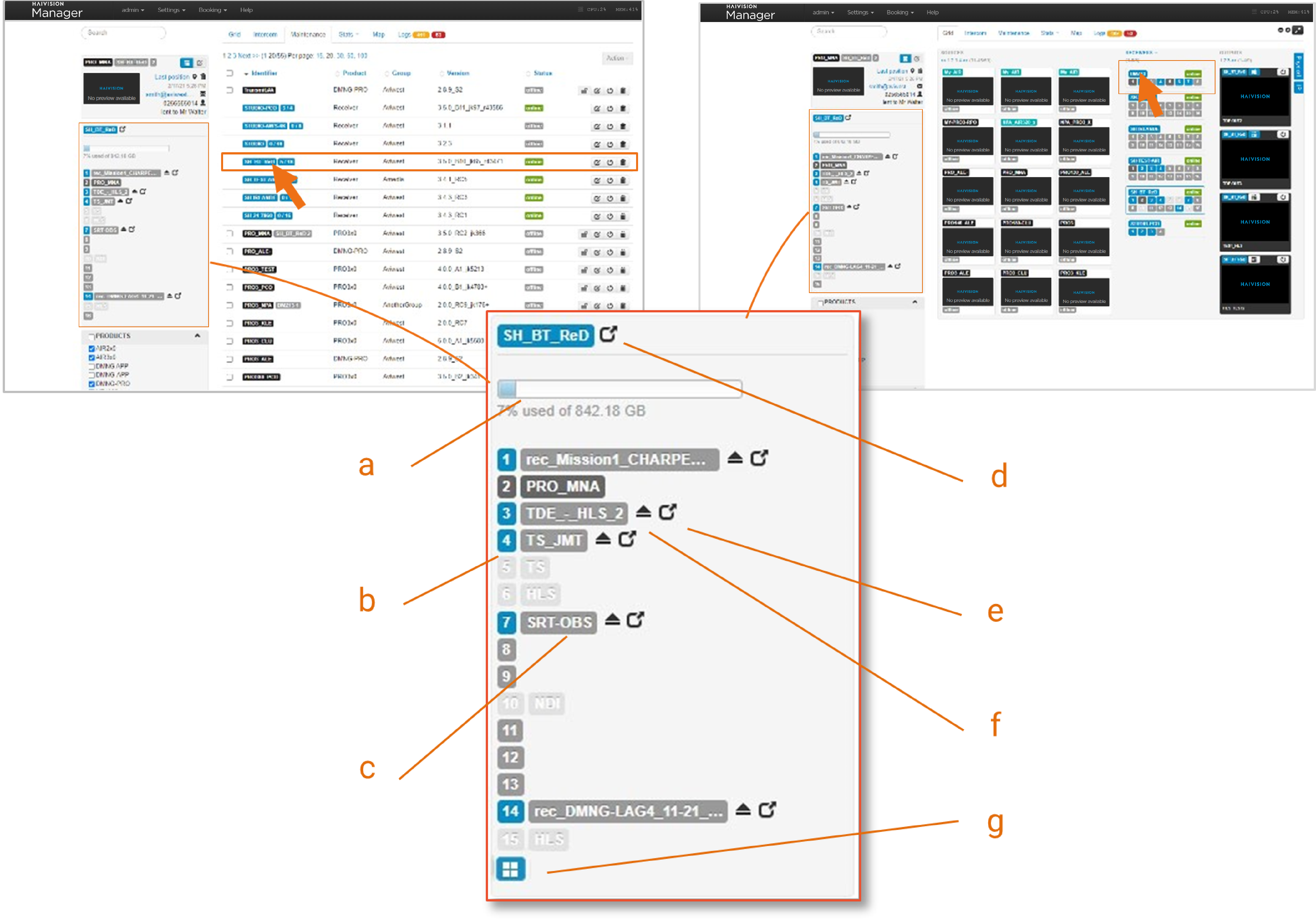

From the Grid view or Maintenance view, click on a receiver thumbnail or label to display the Receiver Panel on the left side of the screen.

The Receiver Panel provides information about the receiver and the field units connected to it.

    1. Used space on the hard disk drive
    2. Status of the inputs

      Input / Multiview in use

      SST input reserved for a specific field unit

      SST input / Multiview available

      Input configured for standard IP protocol

    3. The associated label can take different colors:

      Label of the Field Unit for which this input is booked

      Live IP input (non-SST) in use, or File Playout in use

      IP protocol (non-SST) configured on this input




      Field Unit using this input
      (field unit connected, or Live / Forward in progress)

    4. Button to access to the receiver webpage.
    5. Button to access directly to the input page on the receiver interface
    6. Button to disconnect the field unit.
    7. Multiview status (when included in the Streamhub license)
