Monitoring the Field Units

The Maintenance and Grid tabs give 2 different views from which you can monitor the field units.

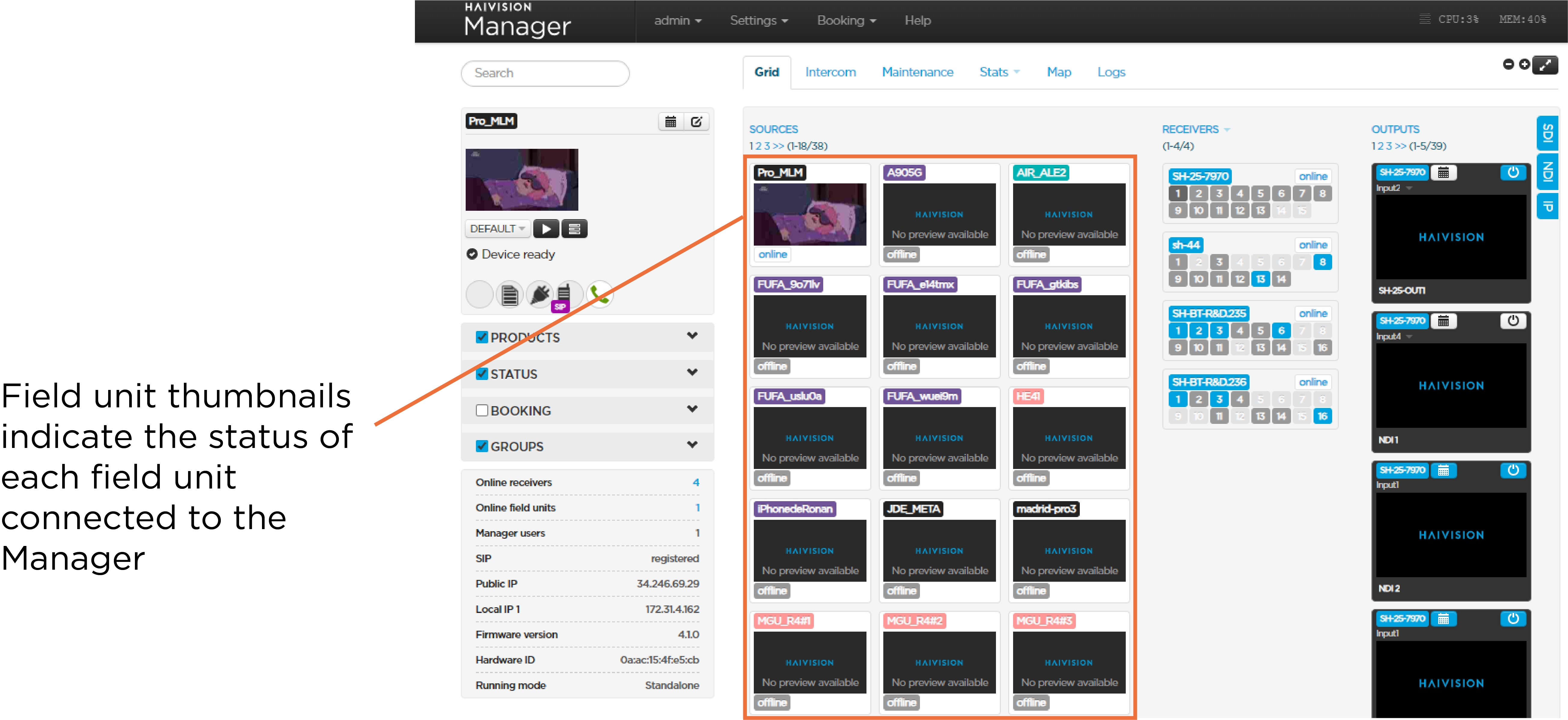

The Grid tab

Note

The thumbnails refresh rate is adaptive following the Manager workload.

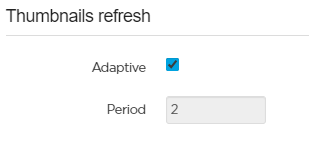

You can disable this option and set a refresh rate between 2 and 10 seconds:

  1. Click on Settings > General.
  2. In the Thumbnails refresh section, uncheck the box, and set a period between 2 and 10 seconds.

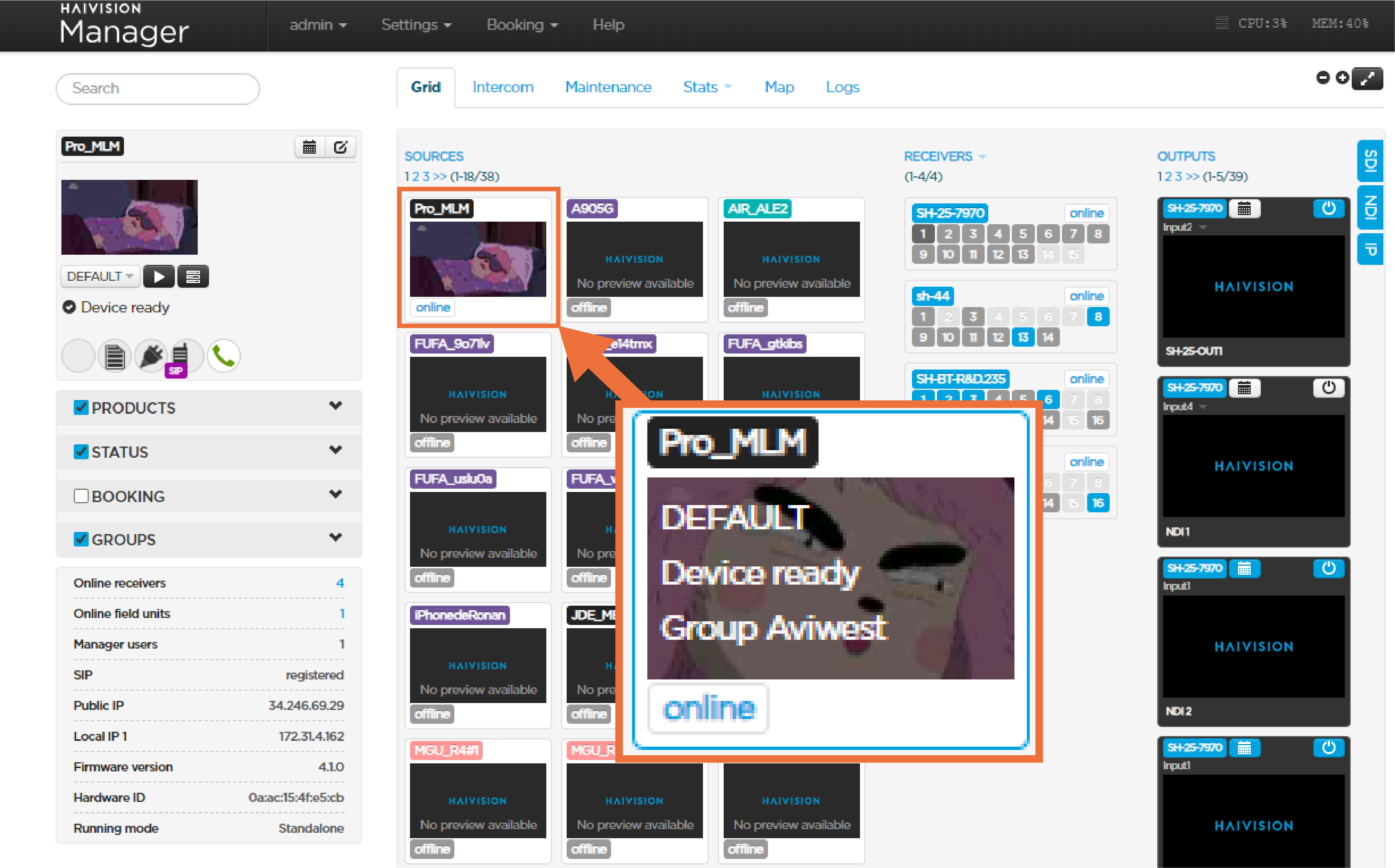

When placing the mouse over a thumbnail, information about the field unit appears:

  • The Live Profile
  • The name of the selected mission (if using Story centric workflow)
  • The group the field unit belongs to
  • Live / Forward duration

Note

This information is refreshed every minute.

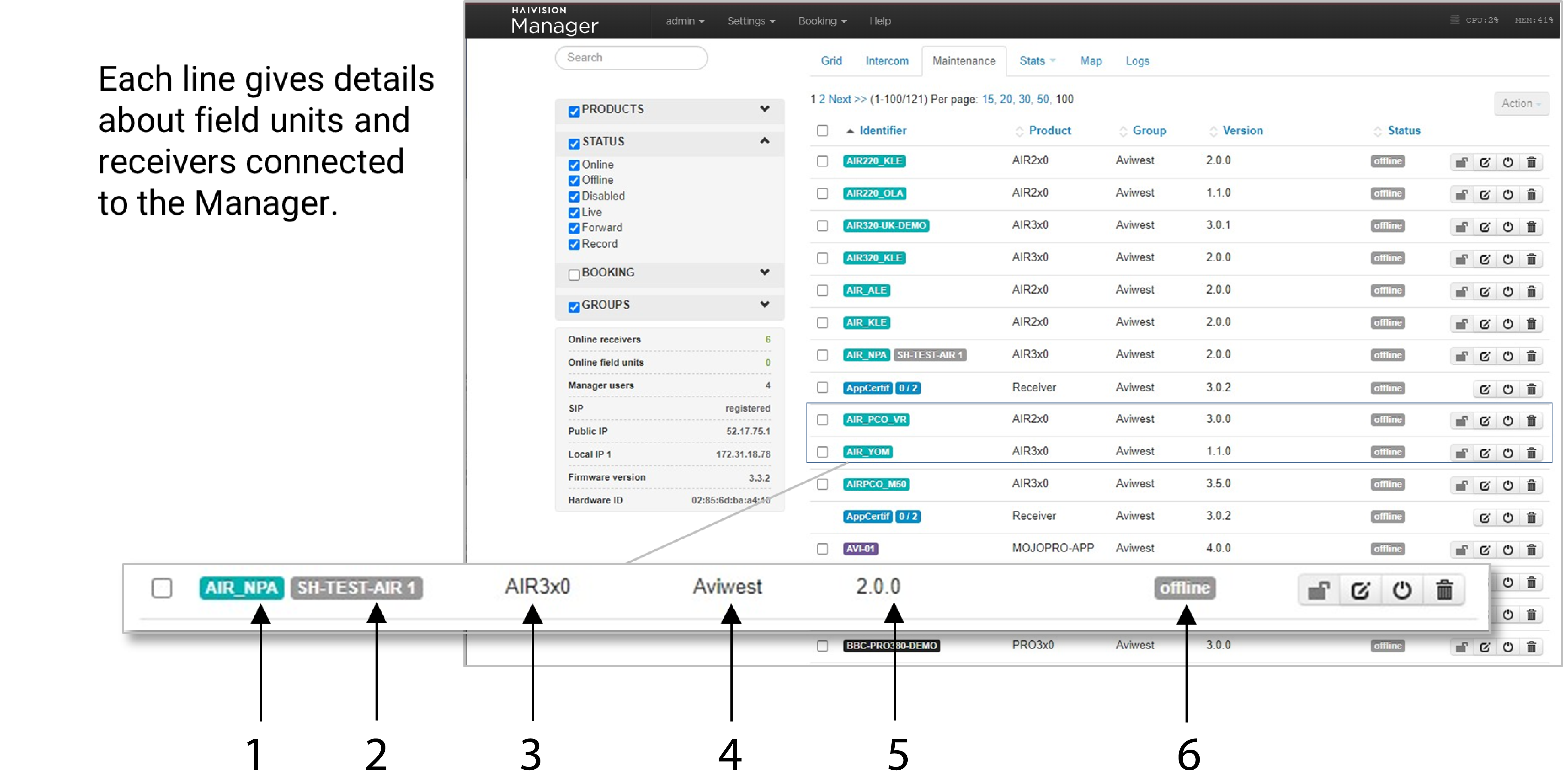

The Maintenance tab

1

Transmitter / Receiver Name

2 *

Reservation Set to an input of a Receiver

3

Type of Field Unit

4

Group that the Field Unit belongs to

5

Firmware version of Field Unit

6

Status of the Field Unit

* Please note that this is the reserved input number. To see the potentially reserved output(s), go to the Booking menu.

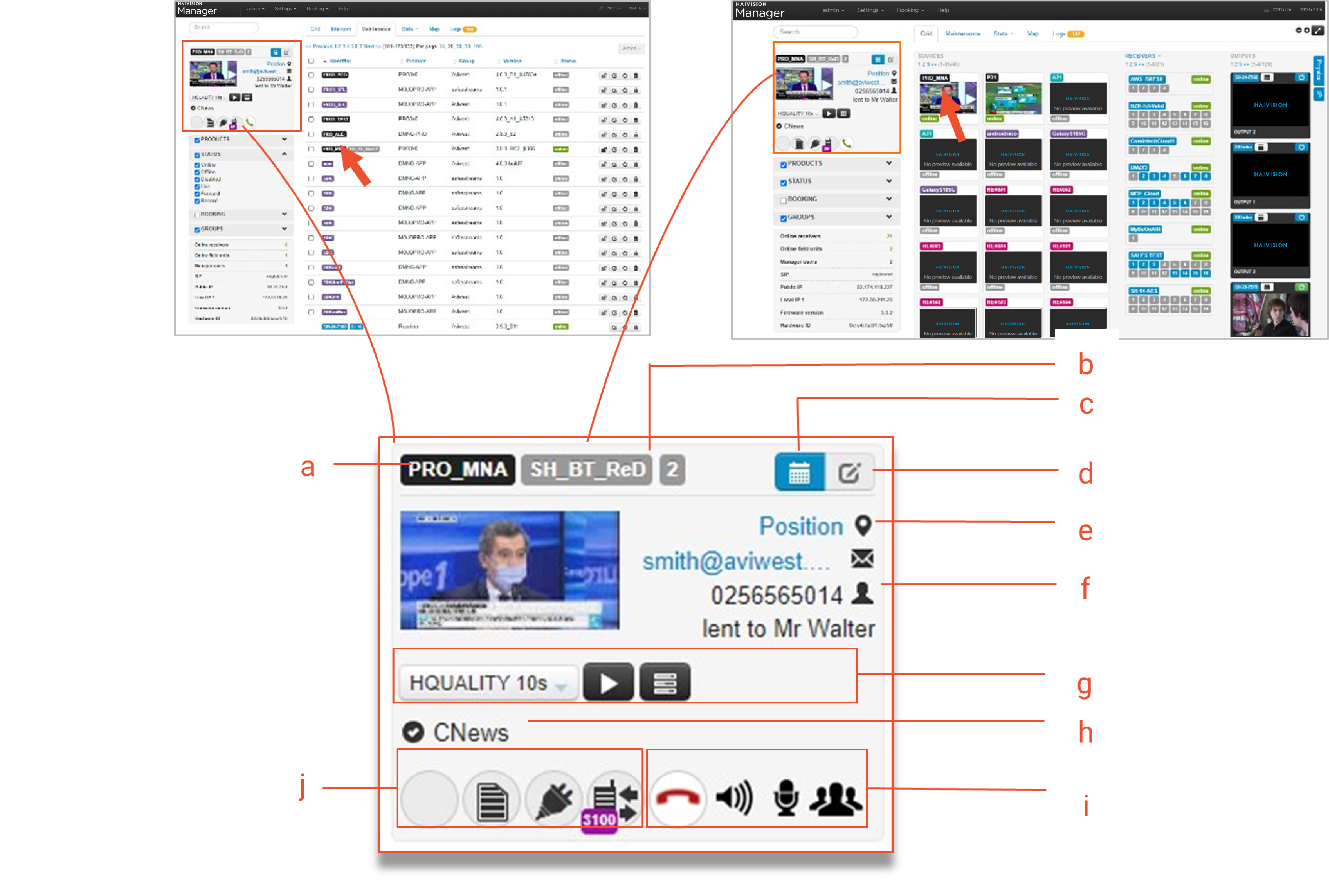

The Field Unit Panel

From the Grid view or Maintenance view, click on the thumbnail or the label to display the field unit panel on the left side of the screen.

The field unit panel provides information about the field unit and gives access to some basic remote control functions:

a

Field unit name

b

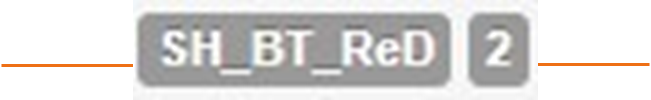

Reservation details

Reserved receiver

  Used input

c

Edit booking button

d

Edit group button

e

Position (or Last position) to zoom in on the current or last position of the field unit.

f

Optional Contact information. To enter these details:

  1. Under the Maintenance tab, search for the field unit.
  2. Click the Settings button (
    ).
  3. Fill in the fields as you need (Email, Phone, Optional additional information).
  4. Click Save.

g

Remote control buttons:

  • a drop-down list to allow selecting a Live Profile
  • Start Live button
  • Stop Live button
  • Forward button
    (DMNG PRO only)
  • Remote button
    that gives access to the user interface of the field unit
  • Web configurator button
    giving access to the Web Configurator (DMNG PRO only)
  • Network button
    that giving access to the network information (DMNG PRO only)

h

Field unit status

Device ready
Checking video, connection in progress or bandwidth test in progress
Live in progress (duration of the transmission)
Record in progress (duration of the recording)
Forward in progress (duration of the transmission)
Data bridge mode enabled on the field unit

i

SIP intercom action buttons

Call button
Hang up button
Mute / Unmute speakers button
Mute / Unmute microphone button
Public / Private conference button

j

Indicators giving information about power supply, mass storage devices and intercom.

Intercom

IconStatus
Intercom enabled
Intercom error
SIP Intercom
SIP Intercom running (within a Conference)

Power Supply

IconStatus
Empty battery
Low battery
Half charged battery
80%
90%
Fully charged battery
External power supply
Charging

Mass-Storage Devices

IconStatus
USB key or SD card inserted
Empty
20%
40%
60%
80%
Full
