Monitoring the Cellular Data Usage

If the license applied on the Manager software enables the statistics, the administrator and the users with the "Statistics" permission, can monitor the cellular data usage on each SIM card used with field units.

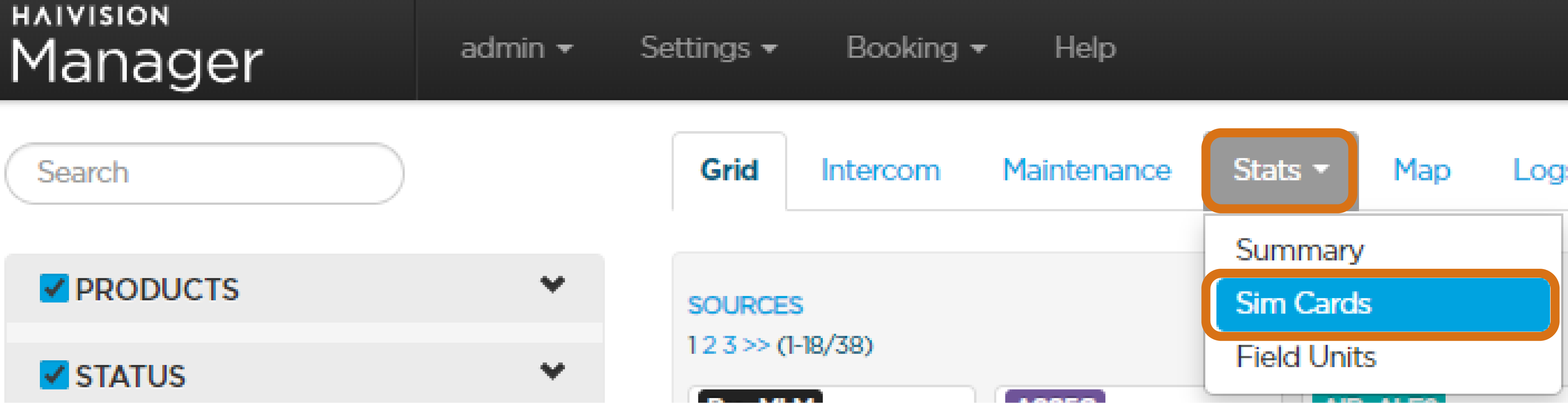

1. Click Stats.
2. Click Sim Cards.

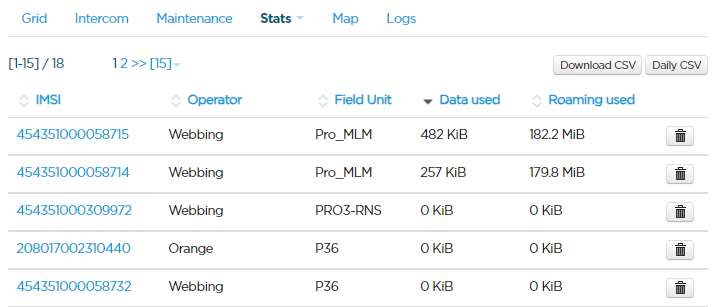

On this page, you can see for each SIM card:

• the IMSI,
• the Operator of the SIM card (i.e. the cellular carrier),
• the name of the Field Unit into which the SIM card is inserted (or into which it was inserted when the name is grey),
• the Data Used, roaming excluded, expressed in kibibytes KiB, mebibytes MiB or gibibytes GiB,
• the Roaming Used, expressed in kibibytes KiB, mebibytes MiB or gibibytes GiB,
• if the amount of roaming data has been set for the SIM card, the Data Used and Roaming Used are also expressed as a percentage.

You may also want to:

• download the statistics into a csv file: click on Download CSV

• download a csv file including the statistics per day click on Daily CSV




  Note

  If you have filtered the SIM cards to show on the page, using the Groups filters and/or the Products filters on the left, the filtering also apply in the csv files.

  The Status filters do not apply on the Stats > SIM Cards page and in the csv files.

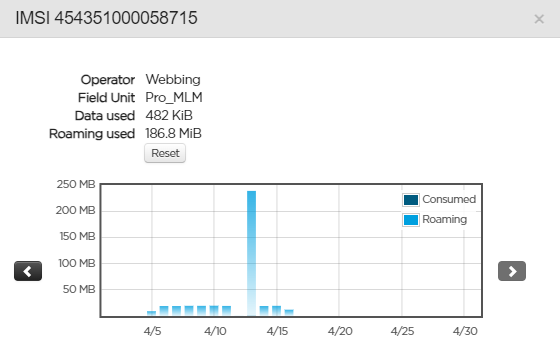

• monitor the daily data usage on a SIM card: click the IMSI of a SIM card to open a new window showing the data usage per day on a diagram.
